Sony BKAW590 HD-SDI Video Interface Board for AWS-G500 Anycast Station
Sony

Sony BKAW590 HD-SDI Video Interface Board for AWS-G500 Anycast Station

SKU: SOBKAW590 MFR: BKAW590
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$3,159.95
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

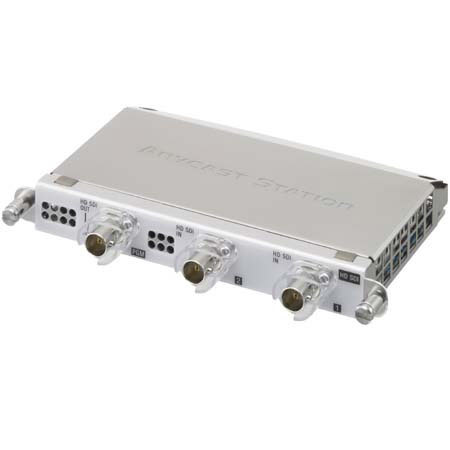

The Sony BKAW590 is a HD-SDI Video Interface Board for AWS-G500 Anycast Station Live Content Producer. It supplies two (2) HDSDI inputs and one (1) HDSDI switched PGM output. Supports 2 channels of embedded audio (input and output), as well as 1080i and 720p I/O.

Key Features

  • 2 HD SDI inputs and 1 PGM HD SDI output using BNC type connectors
  • Input sources can be 1080i50, 1080i60, 720p60, or 720p50
  • Multi-format signal combination is possible: a 1080i signal input to INPUT #1 can be used with a 720p signal input to INPUT #2
  • SMPTE 299M compliant embedded audio
  • HD SDI switched PGM output is selectable as either 1080i or 720p
  • Input video gain control for Luminance and Chroma via Operational Menu

Technical Specs

Compatible with AWS-G500 Anycast Station Live Content Producer
Inputs (2) HDSDI
Output (1) HDSDI switched PGM
Supports 2 channels of embedded audio (input and output)
1080i and 720p I/O
Warranty Sony 1 year parts & 90 day labor warranty
