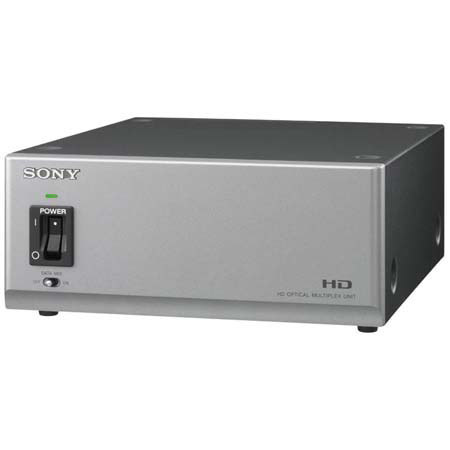

Sony BRU-H700 Optical Multiplex Unit for BRC-H700 Color Video Camera

Mfr. Part: BRUH700     SKU: SOBRUH700

Sony BRU-H700 Optical Multiplex Unit for BRC-H700 Color Video Camera
enlarge image

Free Shipping view details

Product Rating Write a Review

Description
The Sony BRU-H700 is an optical multiplex unit specifically designed for the BRC-H700 color video camera. The unit allows external sync, camera control and audio signals to be transmitted over one single fiber-optic cable. The maximum cable length being up to 1000 m, allowing cameras to be placed virtually anywhere. The one-cable configuration makes setup both quick and easy.

Features
Optional Input Slots: The BRU-H700 is fitted with 2 option board slots, allowing user to customize the unit the way they fit for their personal needs. This assures simple integration within any existing network while making it easy to upgrade when necessary

Specifications
Signal System1080i/60, 1080i/50
Number of Cameras7
Resolution1920 x 1080
Video ConnectorsHFBK-HD1: HD-SDI: With Optional Card
HFBK-SD1: Down converted SD (RGB, Y/Cb/Cr, Y/C, Composite, SDI) HFBK-XG1: WXGA, XGA, VGA
HFBK-TS1: HDV
Alarm I/ONo
Motion DetectionNo
Control PortsRS-232C
Control ProtocolRS-232C/RS-422 (VISCA)
Power Requirements60i: 100-240 VAC, 50/60 Hz
50i: 220-240 VAC, 50/60 Hz
Power Consumption10W
Operating Temperature32-104°F (0-40°C)
Dimensions (WxHxD)8.4 x 3.5 x 9.5" (21 x 8.6 x 24 cm)
Weight6 lbs (2.7 kg)
WarrantySony warranty
