Sony DSR-1600A DV Cam Studio Editing Player
Sony

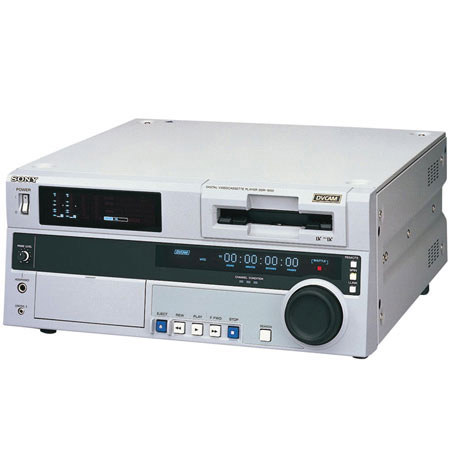

Sony DSR-1600A DV Cam Studio Editing Player

SKU: SODSR1600 MFR: DSR1600A
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
What's Included
What's Included With This Item:
  • ac power cord, instructions
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$7,199.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The DSR-1600 is the successor model to the DSR-60. Implementing the innovative, high standard technology featured in the DSR-2000, the DSR-1600 boasts improved jog audio, slow motion and editing performance. Two major features of these models are the built-in jog/search dial and its multiple format playback capability of DV (SP only) and DVCPRO 25. This unit has the ability to automatically accommodate all 25 Mbps cassette sizes, and do not require a cassette adapter or menu setting changes for playback of these formats.

The unit also has a full range of both analog and digital interfaces. The availability of the SDI interface ensures a migration path to Digital Beta cam, Beta cam SX and SDI-based systems. The SDTI (QSDI) interface enables a quality deterioration-free transfer between the DSR-1600 and DV compression-based systems. One new option for this line is the i. LINK IEEE-1394 DV I/O connection capability, which is useful for transferring digital video from the DSR-1600 to DV I/O equipped VTRs and nonlinear editing systems.

What's Included With This Item

  • ac power cord, instructions

Key Features

  • DVCAM Digital Component Recording Format
  • PCM Digital Audio
  • Playback Compatibility with DV (25 Mbps) Format
  • Triple-positioning Cassette Compartment
  • Built-in Jog/Shuttle Dial
  • Digital Slow Motion and Jog Sound

Technical Specs

Power Source AC 100-240V, 50/60 Hz
Power Consumption Approx. 70 W (DSR-1600 with all option boards)
Operating Temperature 32°F to 104°F
Operating Humidity less than 80%
Dimensions 16 7/8" x 7 x 19 5/8 inches
Weight 28 lb. 10 oz
FF/REW Time Standard size: Less than 3 minutes
Mini size: Less than 1 minutes
Tape Format DVCAM
Tape Speed 28.193 mm/s
Search speed Max. 85 times normal speed, forward and reverse via RS-422A
Recording Time Standard size: More than 184 min. with PDV-184ME
Mini size: More than 40 min. with PDVM-40ME
Input D-sub 15-pin x 1
Output Ref. Video Output BNC x 1 0.286 Vp-p, 75W, sync negative
Composite Output BNC x 2 Composite, 1.0 Vp-p, 75W, sync negative
Component Output: BNC x 3 Luminance: 1.0 Vp-p, 75W, sync negative Chrominance R-Y: 0.7 Vp-p, 75W B-Y: 0.7 Vp-p, 75W
S-Video Output: DIN 4pin x 1 Y: 1.0Vp-p, 75W, sync negative C: 0.286Vp-p, 75W (at burst level)
Horizontal Resolution na
Input na
Output XLR 3-pin male x 4
Audio Monitor Output RCA Phono jack x 1
Headphone Jack JM-60 stereo phone jack x 1
Audio Frequency Response na
Dynamic Range na
i.LINK DV In/Out (DSBK-1803 optl board) 6-pin x 1 IEEE-1394-based (100Mbps)
SDI Output (using DSBK-1601) BNC x 2, active-through Conforms to SDI (270 Mbps), SMPTE 259M
SDTI(QSDI) Output (using DSBK-1602) BNC x 1 Conforms to SDTI (270 Mbps), SMPTE 305M/322M
Control S (SIRCS) Stereo mini jack x 1
RS-422A D-sub 9-pin x 1
AES/EBU Output BNC x 2 Conformed to AES-3id-1995
