Sony DWM-01F/3142 Digital Wireless Handheld Microphone, Dynamic Element, 60 Hz to 18 kHz Frequency Response

SKU: SODWM01F3142 MFR: DWM01/F3142
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,799.00 List Price

Our Price

$1,895.00 $75 per week
Free Shipping
Add to Wishlist

Protect your investment

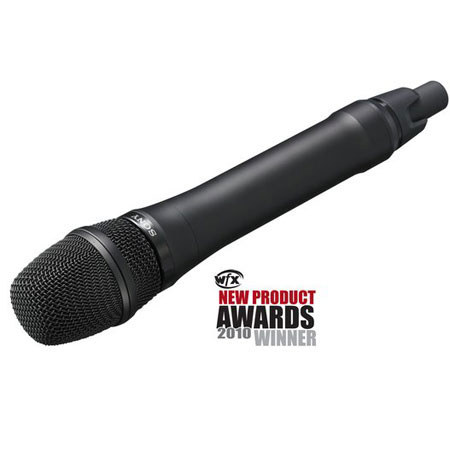

About the Sony DWM-01F/3142

The Sony DWM-01/F31 digital handheld incorporates a newly developed uni-directional (supercardiod) dynamic capsule and is ideally suited for vocal applications. The microphones frequency response is 60 Hz - 18 kHz with a maximum input level of 151 dBSPL.

The DWM-01/F31 provides a choice of 1, 10 or 50 mW RF output. The transmitter operates for approximately five hours using two AA size alkaline batteries at 10 mW output power. Transmitter functions; including input attenuator, RF frequency selection, RF power output, Audio LCF frequency and a power sleep mode (in the transmitter) can be remotely controlled from the digital wireless receiver.

Sony DWM-01F/3142 Includes

  • Sony DWM-01F/3142 Digital Wireless Handheld Microphone
  • ID Ring
  • Mic Holder
  • Stand Adapter
  • USB Adapter Cable
  • USB Cable
  • Carrying Case
  • Sony 1 Year Warranty

Sony DWM-01F/3142 Features

  • Hypercardiod directional dynamic mic capsule for vocal use
  • Audio and metadata transmission operates on UHF-TV channels 42 to 51 (638 to 698 MHz)
  • Transmitter settings can be remotely controlled from the digital wireless receiver (using 2.4 GHz IEEE802.15.4 communication technology)
  • 5 hr battery life using two AA alkaline batteries @ 10 mW power setting

Sony DWM-01F/3142 Specifications

Capsule Type Dynamic capsule (uni-directional)
Oscillator Crystal-controlled PLL synthesizer
Type of Emission G1E or G1D
Carrier Frequencies UHF-TV chs 42-50 (66 MHz bandwidth) 638 MHz to 698 MHz
RF Power Output 1 mW / 10 mW / 50 mW
Compatibility For use with Sony digital wireless products operating on the same frequencies
Frequency Response 60 Hz to 18 kHz
Power Requirements 3V DC (two AA-size alkaline batteries)
Battery Life 5 hrs
Dimensions 1.87" x 10.12" / 4.74 x 25.70 cm
Weight 11 oz / 311.84 g (including batteries)
