Sony

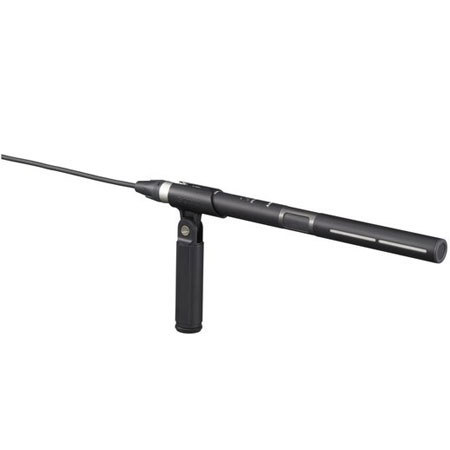

Sony ECM-680S MS Stereo Shotgun Microphone, 50 Hz to 20 kHz Frequency Response

SKU: SOECM680S MFR: ECM680S
Please note: This item is currently back-ordered by the manufacturer. Although we have no estimated time of arrival for this item, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,092.00 List Price

Our Price

$849.95
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Sony ECM-680S

The Sony ECM-680S is an MS stereo shotgun, electret condenser microphone, ideal for a broad range of field production and broadcast studio applications. Incorporating newly developed microphone capsules, the ECM-680S offers excellent sensitivity, low inherent noise and a flat-and-wide frequency response. The most distinguished feature of the ECM-680S is its switchable operation between a highly directional monaural mode and stereo mode.

Monaural mode provides highly directional sound pickup, while stereo mode delivers natural and spatial sound. The MS microphone signal of the ECM-680S is internally decoded and it provides L and R (stereo) outputs. The ECM-680S is supplied with a XLR-5-pin to XLR-5 pin cable for use with 5-pin XLR input equipped camcorders. The optional K-1504 cable should be used when connecting the ECM-680S stereo shotgun with camcorders having two 3-pin XLR inputs.

Sony ECM-680S Includes

  • Sony ECM-680S MS Stereo Shotgun Microphone
  • Windscreen
  • Mic Holder
  • Mic Spacer
  • Microphone Cable (XLR-5-pin to XLR-5-pin)
  • Stand Screw Adaptor (PF1/2 thread
  • NS5/8 thread
  • PF1/2 thread
  • W3/8 thread)
  • Carrying Case
  • Sony 1 Year Warranty

Sony ECM-680S Features

  • Excellent Sound Quality: The ECM-680S uses the Mid-Side technique that offers natural stereo sound & excellent localization. Equipped with newly developed large diaphragm microphone capsules with bi-directional characteristics, the ECM-680S delivers superb sensitivity & extremely low inherent noise
  • Stereo and Monaural Switchable: The ECM-680S can operate in either stereo or monaural (uni-directional) mode, allowing it to be used in both EFP and ENG applications. Stereo mode is ideal for capturing environmental sound with natural sound quality
  • Flat-and-Wide Frequency Response: The ECM-680S microphone has a flat-and wide frequency response (50 Hz to 20 kHz (stereo)/40 Hz to 20 kHz (monaural)) in both stereo and monaural modes and will provide sound reproduction that is extremely smooth and natural
  • Built-in Low Cut Filter: The built-in two-position (M,V) low cut switch provides a simple method of reducing the effects of undesired ambient noise
  • Compact and Lightweight Design: The ECM-680S has been designed to be a compact yet high-performance stereo shotgun microphone, ideal for camera mounted use. It measures only 9 7/8 inches in length and weighs less than 4.9 oz, maintaining good balance and mobility

Sony ECM-680S Specifications

Capsule Type Stereo MS Electret Condenser
Frequency Response Stereo: 50 Hz to 20 kHz Monaural: 40 Hz to 20 kHz
Directivity Uni-directional
Sensitivity Stereo: -28 dB ±3 dB
Monaural: -32 dB ±3 dB
Dynamic Range Stereo:104 dB or more Monaural: 106 dB or more
S/N Ratio Stereo: 74 dB or more
Monaural: 76 dB or more
(IEC179 A-weighted, 1 kHz, 1Pa)
Inherent Noise (0dB=20µPa) Stereo: 21 dB SPL or less, Monaural 20 dB SPL or less
Induction Noise 0 dB SPL or less
Wind Noise 60 dB SPL or less (with windscreen), 55 dB SPL (without windscreen),(0 dB SPL=20u PA)
Max SPL (dB SPL)(0dB=20µP) 124 dB SPL
Connector XLR-3
Cable Length XLR-5 pin to XLR-5pin
15 inches (Connects with Sony camcorder equipped with front 5-pin mic input)
Power Requirements DC 40 to 52 V
Dimensions (LxDiameter) 9.84 x 0.78" (250 x 20mm)
Weight 140g (4.9 oz)
