Sony ECM-77BPT Specifications

  • Capsule Type

    Electret Condenser

  • Frequency Response

    40 Hz to 20 kHz

  • Directivity

    Omni-directional

  • Sensitivity

    -39.0 dB (11.2 mV)

  • Dynamic Range

    90dB or more

  • S/N Ratio

    64dB or more

  • Inherent Noise (0dB=20½Pa)

    30 dB SPL or less

  • Induction Noise

    5 dB SPL or less

  • Wind Noise

    40 dB SPL or less (with windscreen, at 2 m/s)

  • Max SPL (dB SPL)(0dB=20½P)

    120 dB SPL

  • Connector

    BPT type. No connector (Pigtail)

  • Cable Length

    9.8 feet / 2.98 m

  • Power Requirements

    DC 1.1 to 10.0V

  • Dimensions (LxDiameter)

    0.5 x 0.25" (12.5 x 5.6mm) (Microphone head)

  • Weight

    0.8 oz / 22.67 g

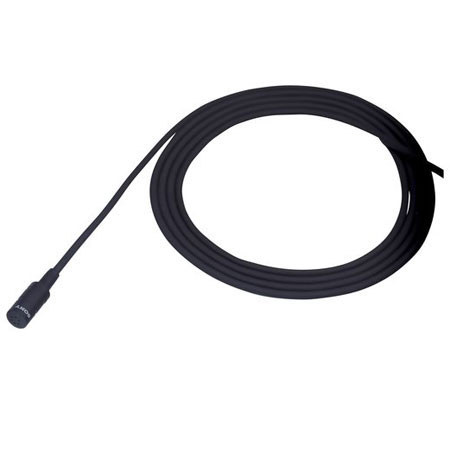

About Sony ECM-77BPT

The Sony ECM-77 is a miniature omni-directional lavalier microphone designed for professional broadcast, sound reinforcement and recording applications. The condenser element features a miniature profile allowing it to be easily concealed in performance and broadcast situations. The omni-directional pattern provides even frequency and sensitivity response at the direct and off-axis sections of the microphone capsule.

The ECM-77 provides a wide frequency response of 40Hz - 20kHz. The wide frequency response enables the microphone to accurately reproduce audio signal from a wide variety of sources. The ECM-77 is manufactured with a variety of connectors to accommodate various input devices, this version is sold without a connection so that users can attach their own custom connections.

Sony ECM-77BPT Features

  • Omni-directional Pattern: The omni-directional pattern provides even sensitivity and frequency response at the direct and off-axis sections of the microphone capsule
  • Miniature Profile: The miniature, unobtrusive profile enables the microphone to be easily concealed in broadcast and performance situations
  • Unterminated Connection: The ECM series is available in a variety of connections, this version is sold without a connection so that users can attach their own custom connections

Key Features

  • Provides even sensitivity & frequency response at direct & off-axis sections of microphone capsule
  • Omni-directional Pattern
  • Miniature Profile
  • Unterminated Connection

What's in the box:

  • Sony ECM-77BPT Electret Condenser Lavalier Microphone
  • S.H. Tie Clip
  • S.V. Tie Clip
  • D.H. Tie Clip
  • M. Windscreen
  • Operating Instructions
  • Microphone Case
  • Sony 1 Year Warranty
