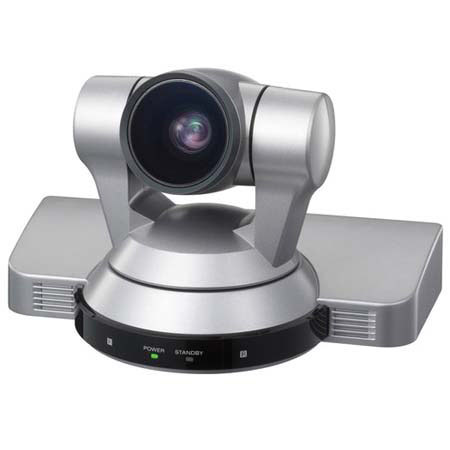

Sony EVI-HD1 10x High Definition Color Pan/Tilt/Zoom Camera

Sony
Sony EVI-HD1: Picture 1 thumbnail Sony EVI-HD1: Picture 2 thumbnail Sony EVI-HD1: Picture 3 thumbnail Sony EVI-HD1: Picture 4 thumbnail

About Sony EVI-HD1

The Sony EVI-HD1 10x High Definition Color Pan/Tilt/Zoom Camera is compatible with standard definition (SD), it also allows you to take the first step in HD migration. The EVI-HD1 camera combines a high-quality HD color video camera with the flexibility of remote pan/tilt/zoom operation. With 14 formats to choose from (including eight HD types and six SD video formats), this new dynamic camera allows end-users to decide when they are ready to migrate from SD to HD.

The EVI-HD1 is compatible today with existing video conferencing systems and will be compatible tomorrow with HD based ones. It also inherits many outstanding features from the EVI-D100 P/T/Z camera and couples these with superb HD picture quality. Smooth, high-speed pan/tilt operation, 16x9 aspect ratio images and a built-in 10x optical zoom/wide angle lens, make the EVI-HD1 ideal for small to medium size conference rooms.

Sony EVI-HD1 Features

  • 1/3 type CMOS image sensor
  • Approximately 2M effective pixels
  • 10x Optical, 4x digital zoom lens
  • RS-232C Camera Control Interface
  • 6 position presets
  • Video Format Compatible with Multiple Formats from NTSC/PAL to Full HD
  • Quiet, High-Speed Pan/Tilt Action
  • High-Quality Image Transmission via the Digital Interface (HD-SDI)
  • Built-In Conversion Lens for Wide Angle View (70 degrees)
  • RS-232C Serial Control by VISCA Protocol

Sony EVI-HD1 Specifications

Signal System
HD: 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 720/59.94p, 720/50p, 720/29.97p, 720/25p
SD: NTSC and PAL
Minimum Illumination
15 lx (50 IRE F1.8)
Video Output
HD: HD-SDI, Analog Component (Y/Pb/Pr)
SD: VBS, Y/C
S/N Ratio
50 dB
Effective Pixels
Approx. 2 Megapixels (16:9)
Shutter Speed
1/2 to 1/10000 sec
Minimum Object Distance
100 mm (wide)
White Balance
Auto
Indoor
Outdoor
One push auto
Manual
Gain
Auto/Manual (-3 to +18 dB)
Lens
10x optical Zoom
40x with digital zoom
f = 3.4 to 33.9 mm
F 1.8 to F 2.1
Auto Exposure
Auto
Manual
Priority AE
Exposure compensation
Bright
Pan Angle/Speed
Pan: ±100°
Max. speed: 300°/sec
Tilt Angle/Speed
Tilt: ±25°
Max. speed: 125°/sec
Image Device
1/3-type CMOS
Horizontal Viewing Angle
8° (tele) to 70° (wide) at HD signal output
Lens Value
10x
Resolution Value
High Definition
Preset Positions
6 positions
Power Consumption
Max. 30 W (at DC 12 V)
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140°F (-20 to 60°C)
Power Requirements
12 V DC (10.8 to 13.0 V DC)
Dimensions (W x H x D)
10-1/4 x 6 x 6-3/4 inches (259 x 150 x 169 mm)
Weight
Approx. 4 lbs 7 oz (2 kg)
Warranty
Sony warranty

Sony EVI-HD1 Reviews

Reviewed by 2 customers


5.0

Great remote control Hi Def camera

By

from Lexington, KY  -  Professional

We use these cameras in our sanctuary and produce a fabulous, clear picture for projection or recording.


5.0

Nice Remote Hi Def camera

By

from Kentucky  -  Professional

We use these in churches to record their services. They are amazingly clear and high quality.
