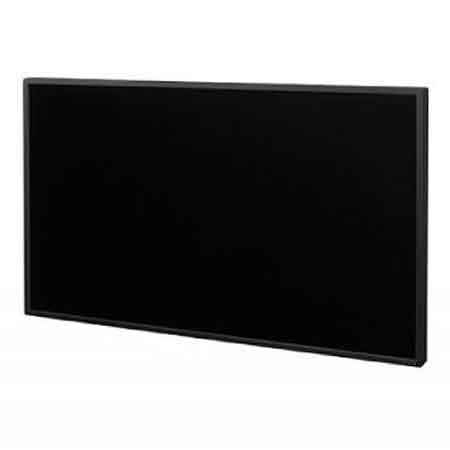

Sony FWDS55H2TOUCH 55" Touchscreen 1080p Display with LED Backlight
See all Sony items

Sony FWDS55H2 55" Touchscreen Display with LED Backlight, 1920 x 1080, 4000:1 Contrast Ratio, 1000 cd/m2 Brightness

SKU: SOFWDS55H2TH
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony FWDS55H2TOUCH Specifications

  • Panel Size

    55.0" (viewable area, diagonal)

  • Resolution

    Full HD 1920 x 1080

  • Pixel Pitch

    0.63 x 0.63 mm

  • Backlight

    Direct LED

  • Contrast Ratio

    4,000:1 (typical)

  • Brightness

    1000 cd/m2 (typical)

  • Viewing Angle

    178deg. (typical) (measured at a contrast ratio more than 10:1)

  • Type

    a-Si TFT active matrix LCD, direct lit type LED backlight

  • Color System

    NTSC, PAL

  • Sampling Rate

    13.5 to 162 MHz

  • Bezel Width

    0.76" (19.44 mm)

  • Video

    In/out (BNC)

  • Audio In

    Stereo mini jack
    3 x RCA

  • D-SUB

    In/Out: 15-pin (RGB/component)

  • DVI Input

    DVI-D 24-pin with HDCP support
    Audio In: Stereo mini jack

  • HDMI

    HDMI in with HDCP support

  • Audio Output

    2 x L/R RCA

  • Remote

    Network Port: RJ45
    RS-232, straight
    HDMI: CEC

  • Speaker Output

    4 x Grip connector 7 W + 7 W, 6 Ohm (L/R)

  • Power Requirements

    100 to 240 VAC, 50/60 Hz, 2.9 A (maximum)

  • Power Consumption

    250 W (typical)
    290 W (maximum)

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Storage Temperature

    14 to 104deg.F (-10 to 40deg.C)

  • VESA Mount

    400 x 400 mm (standard mount holes)

  • Humidity

    20 to 90%, no condensation

  • Dimensions (W x H x D)

    Excluding protruding parts: 49.4 x 28.5 x 4.8" / 125.47 x 72.39 x 12.19cm

  • Weight

    Approximately 82.7lbs / 37.51kg

About Sony FWDS55H2TOUCH

The Sony FWDS55H2TOUCH 55" Touchscreen Display with LED Backlight is an interactive display featuring Dispersive Signal Technology (DST). This touchscreen display allows users to quickly and easily find their way, place orders, pull up information, get directions, answer their own questions, select venues, or locate merchandise.

The display uses chemically-strengthened glass that can withstand continuous use while protecting the LCD monitor underneath. It also features a scratch-resistant, anti-glare surface whose durability and reliability increase your ROI (return on investment). This 55" touchscreen display supports single-touch gesture functions with fast and accurate response times. Underneath, the displays incorporate LED backlighting that consumes little power and disperses little heat.

In addition, the touch system is suitable for large-scale interactive installations at high-traffic areas such as museums, airports, financial institutions, trade shows, sports arenas, college campuses, retail sites, hospitals, government centers and corporate sites.

Sony FWDS55H2TOUCH Features

  • DST (Dispersive Signal Technology) Touch System: Protects LCD display; scratch resistant, anti-glare surface; fast and accurate response; full display is interactive; large number of touch points
  • Touch Makes Signage Interactive: Deepens user's interaction with the sign providing longer customer contact
  • Designed for Commercial Use: Allows 24x7 operation; allows portrait or landscape orientation
  • LED Backlighting: Lower power consumption; lower heat dispersion
  • Eco Mode: Reduces power consumption up to 40%
  • Compatibility: Mac, LINUX and Windows-based operating systems
  • Miscellaneous: True color control, multi-display (up to 4 x 4), on/off timer, control panel lock, option card slot, Picture-in-Picture

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Designed for Commercial Use
  • LED Backlighting

What's in the box:

  • Sony FWDS55H2TOUCH 55 " Touchscreen Display with LED Backlight
  • AC Power Cord
  • 2 x AC Plug Holder
  • 6 x Cable Holder
  • RM-FW002 Remote Control
  • 2 x Size AA (R6) Battery
  • Sony 3 Year Limited Warranty
