Item Includes
HVR-V1U HDV Camcorder - AC Adapter with Power Cord - Remote Commander Unit RMT-851 - A/V Cable - USB Cable - Component Video Cable - Large Eyecup - Lens Hood With Integral Lens Cap - NPF-570 InfoLithium L Battery - ECM-NV1 Microphone - Operation Manual - Sony Warranty
|
Description

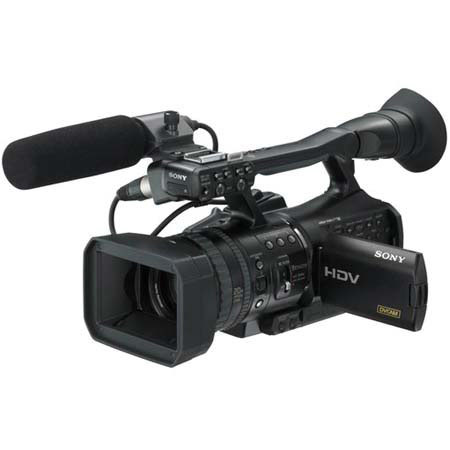

The Sony HVR-V1U HDV camcorder, the world's first 1080p24 HDV acquisition tool. The HVR-V1U camcorder, along with the optional companion HVR-DR60 HDV Hard Drive Recorder represents the latest addition to Sony's tremendously popular line of professional HDV products, & does NOT replace any of the existing camcorders.
The HVR-V1U camcorder provides affordable HD acquisition by offering true 1080p image capture in a small camcorder form factor. Three ClearVid CMOS Sensors, combined with Sony's 14-bit Enhanced Image Processor, create an exceptional camcorder capable of capturing images at 1080p24, 1080p30, & 1080 60i.
All video is processed at 1920x1080 at 60p in full 4:2: 2, for optimum picture quality. In the 1080 24p mode, the images are scanned at the full 1080 lines, & 2:3 pull down is added and recorded to the 60i HDV tape.
From SD to HD, & 24p to 60i, Sony's HVR-V1U & HVR-DR60 offer an extremely versatile, high-quality production package for video professionals. Combining affordable & reliable tape archiving with file-based, edit-friendly clip recording in the field, the HVR-V1U & HVR-DR60 come together to provide a truly practical solution for independent cinematographers, corporate producers, educational users, small-market broadcasters, & wedding videographers, to name just a few.
HVR-V1U Cinema Applications:
· 24p Capture
· Cinematone Gamma & Cinematone Color, with 3D-LUT (Lookup Table), to Match Film Stock
· 1/48 Shutter
· Focus Feet Display
· Shutter Degree Display
· Matte Box Attachment
Some of the Advatages of the Pro HVR-V1U:
Progressive Scan, with 24p & 30p Video Capture, Interval Recording, Color Bar Patterns with Tone, Camera Profile+MS Settings (vs. Cam only), Quick Record Function, 3 Smooth Slow Record modes (vs. One), 2 Exposure Type modes (vs. One), i.LINK External REC Control, Variable Outdoor White Balance, Hours Meter, Date Recording, Last Scene Review, Shot Transition Start Timer, Shot Transition Rec. Synchro, Cinematone Color,
2 Cinematone Gamma Settings (vs. One), HyperGain, Knee Point, Black Stretch/Compress, Selectable Setup Level, Digital Downconvert with Squeeze, Letterbox, & Edge Crop (vs. Squeeze/LB only), Simultaneous Use of EVF and LCD, Selectable Color & B/W EVF (vs. Color only), All Display Off Function, Focus Display in Ft. & Meters (vs. Meters only), Shutter Speed Display in Second & Degrees (vs. Second only).
Aspect Ratio (4:3/13:9/14:9/15:9) in EVF, Safety Zone Markers in EVF, All Scan Mode, Selectable Bar/Number Zoom Display (vs. Bar only), DVCAM REC/PLAY Capability, 8-Level Skin Tone Detail, Phantom MIC Power, LEFT/RIGHT Separate Audio REC Level Adjustment, XLR Manual GAIN, LEVEL & WIND settings.
Peaking Level Indicator, with User Selectable White/Red/Yellow, Selectable Auto/Manual Expanded Focus Off Mode, Separate AUDIO AGC Selection, Audio Limiter, Audio Lock Mode, TC Link, Timecode Reset Function. |
Features
 |
HDV 1080p24, 1080p30, and 1080 60i video capture, recorded as 60i (24p recorded with 2:3 pull down) |
|
3 ClearVid CMOS Imagers, 1.12M Pixels Gross |
|
14-bit Enhanced Imaging Processor, outputting a 1920x1080/60p 4:2:2 video signal |
|
High quality Carl Zeiss Vario-Sonnar T* Lens with Extra-low Dispersion, Fluorite Glass |
|
20X Optical Zoom with built-in Digital Extender for 30x Effective Zoom (Approx.) |
|
Super SteadyShot Optical Stabilization System |
|
USB port and i.LINK DV Interface (IEEE1394) |
|
MPEG2 Real Time Encode System for real time processing of HD data |
|
HDMI Output |
|
Switchable HDV/DVCAM/DV Format Recording |
|
Built-in HD to SD down conversion via i.LINK interface and Component Analog output |
|
3.5" (viewable area, measured diagonally) 16:9 Clear Photo LCD Display (211K Pixels) |
|
Large 16:9 Color & B/W switchable EVF, with Simultaneous LCD Display Output |
|
Wide range of Manual Shutter Speeds, from ¼ to 1/10,000 second, including 1/48 |
|
Shutter Display Readout in Seconds or Degrees |
|
Manual Iris Control, with New Exposure modes |
|
6 User Assignable Buttons for quick access to frequently used camera/VTR functions |
|
Enhanced EVF/LCD Marker function, for Center, Aspect Ratio, Safety Zone, and Guide Frame |
|
Expanded Focus Function in Black & White or Color, for easy confirmation of focus setting during manual focusing |
|
EVF & LCD Peaking Indicator |
|
Infinite Manual Zoom Ring |
|
Manual Focus Ring, with Focus Distance Displayed in Feet or Meters |
|
Histogram and Zebra Pattern in EVF/LCD |
|
Exposure dial on Optical Axis of the Lens |
|
Balanced Audio XLR input connectors (x2) w/Selectable Phantom Power |
|
Time code Synchronization via i.LINK interface |
|
Shot Transition Function offers automatic transition of various shooting parameters between shots |
|
Hypergain Function |
|
Handle mounted ZOOM / REC control |
|
3 position ND filter switch |
|
Up to 8 hours of normal operation on a single NPF970 battery |
|
HVR-V1U Creative Features: |
|
8-level Skin Tone Detail Feature |
|
Knee Point and Black Compensation Settings, for Precise Gamma Level Customization |
|
12-Character Picture Profile Filing System on MemoryStick Duo Media |
|
One-Button Last Scene Review Function Without Leaving Camera Mode |
|
Contrast Enhancer in EIP Separates image signal into Picture Pattern and Brightness Information, to increase Detail in Dark Areas |
|
Manual White Balance Adjustment |
|
Still Image Capture to MemoryStick DUO |
|
Smooth Slow Recording, in 3/6/12 Second Intervals, for Dramatic Effect and Motion Analysis |
|
Interval Recording, for Time Lapse Effects |
|
Picture Profile feature offers 6 memory locations for storing important camera settings such as Color Phase, Skintone Detail, Auto Iris Limit, AWB sensitivity, & Cinematone setting |
Specifications
| Image Device | 1/4-inch type x3, ClearVid CMOS Sensors |
| Lens | High quality 20X Optical Zoom Carl Zeiss Vario-Sonnar T* Lens
Extra-low dispersion Glass
37.4mm to 748mm (35mm equivalent)
Filter diameter 62mm |
| Picture Elements | Total pixels: approx. 1.12M pixels
Effective pixels: approx. 1.04M pixels |
| 2 Built-in Filters | ND1: ¼ and ND2: 1/16 |
| Video Signal System | NTSC color system |
| Scanning System | 1080/60p 4:2:2 |
| Shutter speed | ¼ to 1/10000 sec |
| Connectors | A/V, Component Output, XLR IN (x2), i.LINK, LANC, Headphone stereo mini.
USB port, MemoryStick DUO port |
| Minimum Illumination | 4 lux @ 18db, F1.6, normal shutter |
| Exposure | Auto, Manual |
| Viewfinder | Hybrid Precision 16:9 Color & B/W Selectable
Approx. 250,000 pixel |
| Audio | DV/DVCAM Rec. 48KHz/16 bit, 32KHz 12 bit
HDV Rec.: MPEG-1 Audio Layer II |
| Provided Microphone | ECM-NV1 Microphone |
| Speaker | 16mm built-in dynamic |
| LCD panel | Hard-Coat Anti-Reflection 16:9 3.5" type, 211K pixels (approx.) |
| Format | HDV/DVCAM/DV (SP) recording, HDV/DVCAM/DV (SP) playback |
| Recording Time | Max. 60 min with HDV, 40 minutes in DVCAM, & 60 min. in DV (SP) |
| Weight (Camera only) | 1.5 Kg (3 lbs., 6 oz.) |
| Dimensions | 131mm W x 184mm H x 323mm D |
| Power consumption | 6.8W with VF or LCD on |
| | |
|
