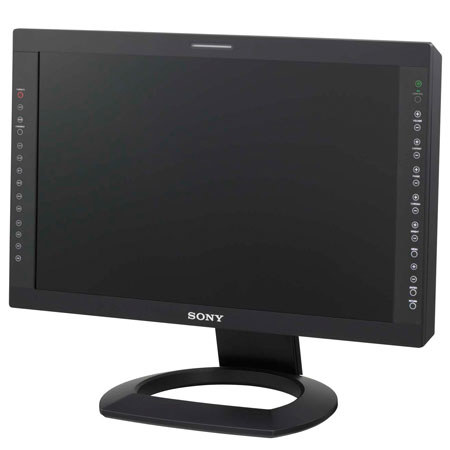

| Picture Type |
a-Si TFT Active Matrix LCD |
| Resolution |
1920 x 1200 pixels (WUXGA) |
| Effective picture size (H x W) |
518.4 x 324.0 mm (20-1/2 x 12-7/8 inches)
613.2 mm (24-1/4 inches) |
| Aspect Ratio |
16:10 |
| Colors |
Approx. 16.7 million colors |
| Viewing angle |
89deg./89deg./89deg./89deg. (typical) (up/down/left/right contrast > 10:1) |
| Vertical viewing angle (3D mode) |
50deg. at a viewing distance more than 300 mm, crosstalk less than 7% (typical) |
| Input Composite |
BNC (x1), 1.0 Vp-p ±3dB sync negative |
| Input Y/C |
Mini DIN 4-pin (x1)
Y: 1.0 Vp-p ±3dB sync negative, C: 0.286 Vp-p ±3dB (NTSC burst signal level), 0.3 Vp-p ±3dB (PAL burst signal level) |
| Input RGB, Component |
BNC (x3)
RGB: 0.7 Vp-p ±3dB (Sync On Green, 0.3 Vp-p sync negative)
Component: 0.7 Vp-p ±3dB (75% chrominance standard color bar signal) |
| Input DVI-D |
DVI-D (x1)
TMDS single link |
| Input HD15 |
D-sub 15-pin (x1)
R/G/B: 0.7 Vp-p sync positive (Sync On Green, 0.3 Vp-p sync negative)
Sync: Total level (polarity free, H/V separate sync)
Plug & Play function: corresponds to DDC2B |
| Input Audio |
Phono jack (x2) (L, R), -5 dBu 47 kilohms or higher |
| Input External sync |
BNC (x1)
0.3 Vp-p to 4.0 Vp-p ± bipolarity ternary or negative polarity binary |
| Input Option slot |
2 slots
Signal format: H: 15 kHz to 45 kHz, V: 48 Hz to 60 Hz |
| Parallel remote |
Modular connector 8-pin (x1) (Pin-assignable) |
| Serial remote |
D-sub 9-pin (RS-232C) (x1), RJ-45 modular connector (Ethernet) (x1) (10BASE-T/100BASE-TX) |
| DC in |
DC 24 V (output impedance 0.05 ohms or less) |
| Output Composite |
BNC (x1), Loop-through, with 75 ohms automatic termination |
| Output Y/C |
Mini DIN 4-pin (x1), Loop-through, with 75 ohms automatic termination |
| Output RGB, Component |
BNC (x3), Loop-through, with 75 ohms automatic termination |
| Output External sync |
BNC (x1), Loop-through, with 75 ohms automatic termination |
| Audio monitor out |
Phono jack (x2) (L, R) |
| Speaker (built-in) |
1.0 W + 1.0 W (stereo) |
| Power requirements |
AC 100 V to 240 V, 50/60 Hz, 1.5 A to 0.7 A
DC 24 V, 5.7 A |
| Power consumption |
Maximum: approx. 130 W (with 2 x BKM-229X) |
| Operating temperature |
0deg.C to 35deg.C (32deg.F to 95deg.F)
Recommended: 20deg.C to 30deg.C (68deg.F to 86deg.F) |
| Operating humidity |
30% to 85% (no condensation) |
| Storage and transport temperature |
-20deg.C to +60deg.C (-4deg.F to +140deg.F) |
| Storage and transport humidity |
0% to 90% |
| Operating, storage/transport pressure |
700 hPa to 1060 hPa |
| Dimensions (W x H x D) |
23.75 x 19.6 x 10.75" (60.2 x 49.8 x 27 cm) |
| Weight |
24.25 lbs (11kg) |
