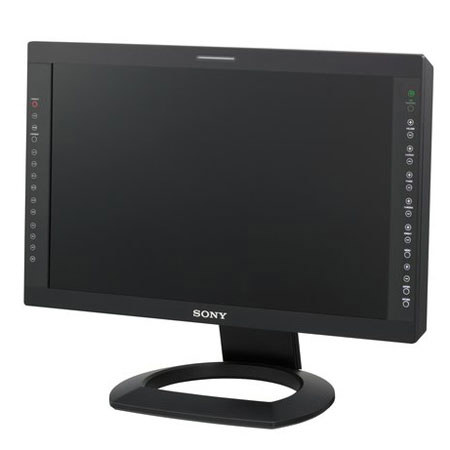

Sony 24" High Grade 3D LCD Monitor with BKM-250TG/2 Input Board, 1920x1080 Resolution, 16:9 Aspect Ratio, Built-in Speakers

Sony
SKU: SOLMD2451TDP MFR: LMD2451TDPAC1

Our Price

$8,239.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sony

The Sony LMD-2451TD 24" High Grade 3D LCD Monitor with BKM-250TG/2 is a professional widescreen display designed to produce dazzling, full HD images. The monitor brings a whole new dimension to the feature set of its predecessor, the LMD-2451W--in fact, a third dimension. That means the same high-quality video images can now be viewed in stereoscopic 3D, introducing a valuable new tool to post-production and studio applications.

This Kit comes with the BKM-250TG/2 input adapter, adding the ability to input HD-SDI signals conforming to the SMPTE S425M 3G standard and allowing single wire input of a 4:4:4 RGB HDSDI signal or 4:2:2 1080/60 P content. The monitor's remaining available card slot allows increased functionality via optional adapters, providing support for closed captioning, dual-stream HD-SDI and NTSC/PAL input.

Sony Features

  • High Purity Color Filters: The LMD-2451TD uses precisely manufactured RGB color filters, allowing the reproduction of colors with stunning depth and saturation to create highly natural images
  • 3D Circular-polarizer System: The LMD-2451TD adopts a 3D micro polarizer filter attached to the LCD panel and is supplied with circular-polarizer glasses. In this system, the right and left signals are sorted into odd and even lines, respectively
  • Unique Lightweight Circular-polarizer 3D Glasses: Sony BKM-30G circular-polarizer glasses are designed for the 3D production operator's convenience and optimized for both LMD 3D monitors
  • Horizontal Flip: When a half-mirror type of rig is used, either the left or right signal may be reversed horizontally. The Flip H function turns the reversed image to the normal view. This is helpful because the user can refer directly to the rig camera, achieving a simple and cost-saving system
  • Disparity Simulation: Users can simulate the amount of 3D image parallax and can judge whether the camera rig should be adjusted on location or whether it would be better to adjust the parallax later during the post-production process
  • Horopter Check: This function helps users to perceive the subtle difference of depth between different objects placed on the 3D screen surface
  • Checker Board: Left and right input signals are displayed in a grid pattern on screen--divided into 9 blocks vertically and 16 blocks horizontally
  • Monitoring of all 8 channels of embedded audio from an SDI input or all 16 channels of audio from an HDSDI input. Channels 1 - 8 or 9 - 16 can be displayed simultaneously on screen
  • Addition of Vertical Internal Time Code Reader (VITC Reader)

Sony Specifications

Signal System
NTSC/PAL
Monitor Type
a-Si TFT Active Matrix LCD
Screen Size
24"
Resolution
1920 x 1200
Display Colors
16.7 Million
Viewing Angle
178deg.
Aspect Ratio
16:10
Inputs/Outputs
Composite: BNC (x1 Input, x1 Loop-through Output)
Y/C: 4-pin Mini DIN (x1 Input, x1 Loop-through Output)
RGB/Component: BNCx3 (x1 Input, x1 Loop-through Output)
HD15: 15-pin D-Sub (x1 Input)
DVI: DVI-D (x1 Input)
Audio L/R: Phono x2 (x1 Input, x1 Output)
Sync: BNC (x1 Input, x1 Loop-through Output)
Remote Control
Parallel: 8-pin Modular Connector
Serial: 9-pin D-Sub (RS-232C), RJ-45 Modular Connector
Speakers
1W + 1W Built-in
Input Board: Inputs
3G/HD/SD-SDI: BNC x2
Input Board: Outputs
3G/HD/SD-SDI: BNC x2 (Loop-through)
Input Board: Transmission Distance
3G-SDI: approx. 230 ft (70m) max - when using 5C-FB coaxial cables or equivalent
HD-SDI: approx 328 ft (100m) max - when using 5C-FB coaxial cables or equivalent
SD-SDI: approx 656 ft (200m) max - when using 5C-2V coaxial cables or equivalent
Input Board: Operating Temperature
32deg. to 95deg.F (0deg. to 35deg.C)
Input Board: Power Requirements
5VDC, 3.3VDC (supplied from the main unit)
Input Board: Power Consumption
4W
Power Requirements (Monitor)
100-240VAC, 50/60Hz
24VDC
Dimensions (W x H x D)
Monitor: 23.75 x 19.6 x 10.75" (60.2 x 49.8 x 27 cm)
Input Board: 4 x 0.8 x 6.5" (10 x 2 x 16.2 cm)
Weight
Monitor: 24.25 lbs (11kg)
Input Board: 9.5 oz (270g)
Mfr #
LMD2451TDPAC1
SKU
SOLMD2451TDP
