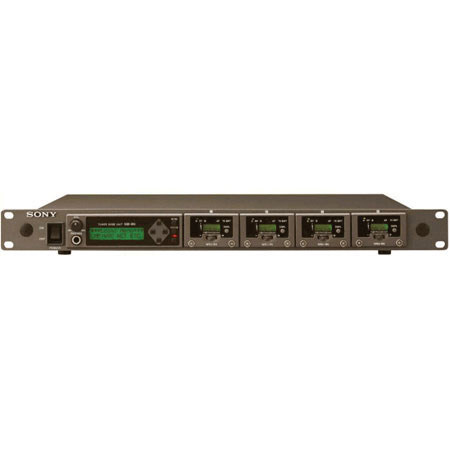

Sony MB-8N Wireless Microphone Tuner Base Receiver Unit.

Sony
SKU: SOMB8N MFR: MB8N
Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1-2 Weeks from date of order. learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $79.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $114.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $322.95

Our Price

$2,289.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Sony MB-8N

• The MB-8N tuner base unit accommodates up to four WRU-8N tuner units, and it includes a built-in antenna divider making it easy to daisy-chain up to four of these base units to form a 16-channel system. The MB-8N excels in the level of remote operation and monitoring it provides.

Over standard Ethernet connections, a complete system can be set up and controlled from a PC running the supplied GUI software. This includes the store and recall of different channel configurations, a feature that is particularly useful for location use and equipment rental organizations.



Sony MB-8N Features

  • MB-8N wireless mic tuner base supports installation of up to four WRU-8N wireless mic receiver modules
  • Up to 16-channel simultaneous operation is possible using four MB-8N's (fitted with 16 tuner modules) without an external antenna divider
  • Ideal for multi channel wireless operation
  • Supplied PC control software allows remote control of up to 49 wireless tuners
  • MB-8N front panel LCD display and menu operation allow access to all operationalsettings for stand alone operation
  • Up to 42-channel simultaneous operation is possible using an optional WD-880A antenna divider

Sony MB-8N Specifications

System dynamic range
116 dB (typical)
Frequency response
40 Hz to 20 kHz
Distortion
1.0 % or less
Audio output level
-20 dBm (LINE)/-58 dBm (MIC) at reference deviation
Audio output connector
XLR-3-32 type (x 4) balanced
Sub-audio output connector
D-sub 15-pin female, unbalanced
Antenna attenuator level
0 dB, 5 dB, or 15 dB
Antenna connector
Inputs: BNC-R type (x 2), 50 ohm (nominal) Outputs: (for cascade connection): BNC-R type (x 2), 50 ohm(nominal)
Monitor output connector
6.3 mm dia. stereo mini jack (x 1)
Monitor output level
12 mW
Network connector
RJ-45 (x 1) 10BASE-T
Power requirements
AC 100 to 240 V, 50/60 Hz DC 10 to 24 V
Power available f/conctd AN-820A Antenna
9 V, max. 100 mA
Power consumption
50 W when accommodating four WRU-8N tuner units
Dimensions (W x H x D)
482 x 44 x 300 mm ( 19 x 1 3/4 x 11 7/8 inches)
Weight
3.7 kg (8 lb 6 oz)
Mfr #
MB8N
SKU
SOMB8N
