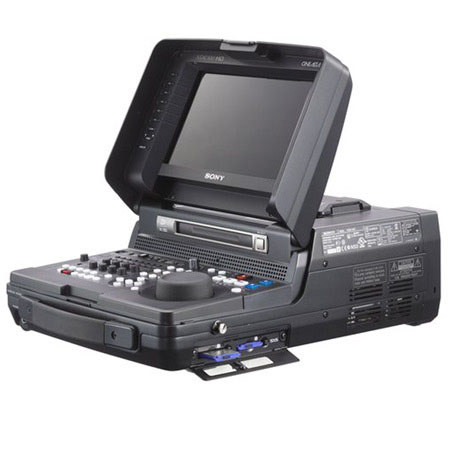

Sony PDWHR1/MK1 9" LCD XDCAM Field Deck with SxS Card Slot Option
SKU: SOPDWHR1MK1
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Sony PDW-HR1/MK1
The Sony PDW-HR1/MK1 is the mobile deck with the PDBK-MK1 SXS Card Option pre-installed. The PDW-HR1 the latest addition to the XDCAM family, is a highly mobile field recorder. The PDBK-MK1 SXS Card Option enables you to review material recorded on either Professional Disc or SXS Card media. Its design is similar to PDW-R1 SD Field Recorder, but the PDW-HR1 provides a lot of additional functionalities. Firstly the PDW-HR1 supports all the XDCAM formats as standard, including the frame rate of 23.98P in 1080i mode and SD (DVCAM and MPEG IMX). Also new concept GUI for EDL-based editing and direct DVB-ASI output provides the field operator more flexible workflow. Its compact, lightweight body makes the PDW-HR1 ideal for use in the field as a pool-feed recorder, backup recorder, compact recorder installed in an extremely confined space such as a car or helicopter and simple field editor by itself.
Sony PDW-HR1/MK1 Features
- HD recording at up to 50 Mb/s using MPEG HD422
- Support for existing XDCAM HD and XDCAM SD formats as standard
- 1080i and 720P recording
- Dual-layer disc (50 GB, PFD50DLA) and single-layer disc (23.3 GB, PFD23A) support
- The pre-installed PDBK-MK1 SxS Card Option adds two ExpressCard slots to the PDW-HR1 which enables the PDW-HR1 to also read the FAT-32 formatted cards recorded by the XDCAM EX camcorders as well as the UDF formatted cards recorded by the PMW-500 camcorder
- Long recording time (at 50 Mb/s); Approximately 95 minutes on dual-layer disc and 43 minutes on single-layer disc
- Thumbnail operation
- Proxy data and metadata recording
- Built-in up-conversion to HD from SDI input when recording
- HD/SD conversion and cross conversion between 1080 and 720 at the output during playback
- Multi-format compact HD/SD Recorder
- Video format (4:2:2 HD 1080 50i, 59.94i)
- High-quality eight-channel audio recording
- 9-inch type color LCD display
- VTR-like jog/shuttle operation
- Video control (via front panel and remote)
- Compact and lightweight
- AC, DC, or battery powered
- Ethernet interface
- i.LINK interface
- HDMI output for viewing
- DVB-ASI output by PDBK-202 option
- Key panel illumination light for use in low-light environments
- Clip Continuous Recording
- Direct FTP copy function
