Sony PHA1 Portable (USB) Headphone Amplifier

Sony
Sony PHA1: Picture 1 thumbnail Sony PHA1: Picture 2 thumbnail Sony PHA1: Picture 3 thumbnail

List Price: $599.99

42% Off

Our Price

$349.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

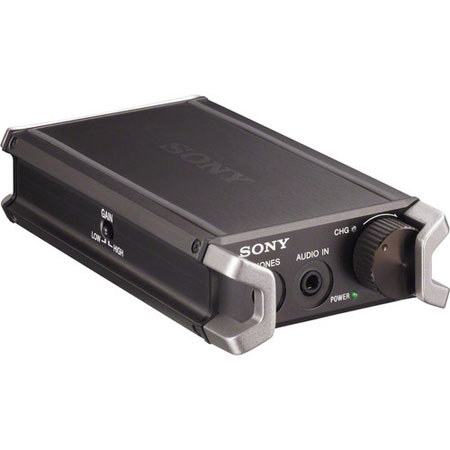

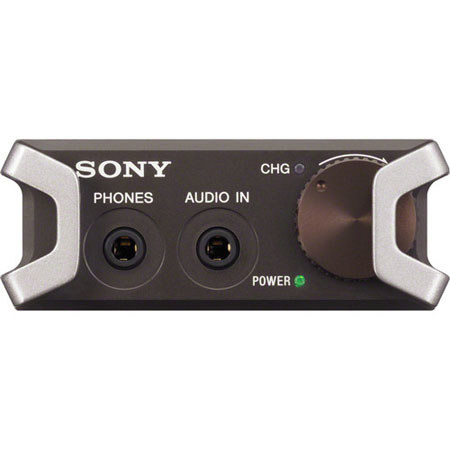

About Sony PHA1

• The PHA-1 portable headphone amplifier is a two-channel high resolution DAC (digital-to-analog converter) combined with a high-quality headphone amplifier.The PHA-1's micro USB port is USB audio compatible (96kHz/24bit) and it supports asynchronise data transfer mode.

• It doesn't require the use of addtional drivers for use with MAC or PC. It's durable metal construction, high quality components and outstanding sound quality make it ideal for use with MDR series professional headphones.



Sony PHA1 Features

  • Micro USB port (for PC/MAC use) operates using USB bus powering
  • Professionally constructed in a durable aluminum enclosure with zinc alloy cast bumpers to minimize external interference and protect the volume control
  • High slew rate Texas Instrument TPA6120 headphone amplifier
  • Supports headphone impedances of 8 ohms to 600 ohms
  • Ultilizes high quality Wolfson WM8740 digital-to-analog converter
  • Maximum audio sample rate and resolution: 96 kHz / 24 bit
  • Built-in Lithium-ion battery (charged from Micro USB port). Battery life 10 hours using analog input or 5 hours when connected directly with an iPod/iPhone/iPad.
  • Charge time 4.5 hours.
  • Side panel gain switch supports use with both high and low impedance headphones

Sony PHA1 Specifications

Type
Analog input: Stereo mini jack provides analog input directly to the analog headphone amplifier
Frequency Response: 10 Hz - 100 kHz. Signal to Noise Ratio: 110 dB. Headphone Power Output: 175mW + 175 mW @ 16 ohms, 125 mW + 125mW @ 24 ohms
Micro-USB (TYPE B) connector (USB adapter cable supplied)
Up to 96 kHz / 24-bit. Frequency Response: 10 Hz - 47 kHz . Signal to Noise Ratio: 96dB. Headphone Power Output: 40mW + 40mW @ 16 ohms, 70mW + 70mW @ 24 ohms
Application
USB Type A connector dedicated for iPod/ iPhone/ iPad use (USB adapter cable supplied)
Up to 48 kHz / 24-bit. Frequency Response: 10 Hz - 23 kHz. Signal to Noise Ratio: 96dB. Headphone Power Output: 175mW + 175mW @ 16 ohms, 125mW + 125mW @ 24 ohms
