Sony

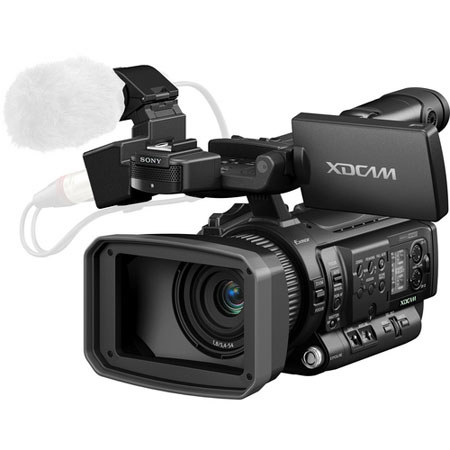

Sony PMW100 One 1/2.9" Exmor CMOS XDCAM HD422 Handy Camcorder, 3.5" LCD Screen, 10x Zoom Lens, HD-SDI & HDMI Outputs

SKU: SOPMW100 MFR: PMW100
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,085.00 List Price

Our Price

$2,899.00 $113 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

About the Sony PMW-100

The Sony PMW100 One 1/2.9" Exmor CMOS XDCAM HD422 Handy Camcorder offers broadcast-quality 50 Mb/s MPEG-2 recording at 1920 x 1080 in a very compact form factor. Even loaded with an SxS card and the packaged Li-ion battery, the PMW-100 weighs slightly less than 4 lb. That's a crucial benefit for any mobile documentarian or news gatherer who's operating handheld over the course of long days to cover events & news stories, conduct on-the-spot interviews and capture video for just about any other professional task.

The handy PMW-100 is a comfortable companion for Sony's entire XDCAM line, including the optical-disc models and the camcorders, like this one, that record HD video to SxS cards. That's because it captures files to either FAT- or UDF-formatted cards, so you can easily integrate the PMW-100 into both XDCAM EX and XDCAM Professional Disc workflows. With two SxS slots that accept cards with capacities up to 64 GB, you can record up to 240 minutes even at the highest quality - that would be Sony's XDCAM 422 MPEG-2 codec, at 50 Mb/s.

Built into the camcorder is a 10x zoom lens that offers a 35mm equivalent focal length range of 40-400mm. Manual control over zoom is available via a Lens Control Ring; that ring can be switched over to focus control if you'd prefer to pull focus manually. Additionally there's a dial for setting exposure manually. The PMW-100 employs a single 1920 x 1080 CMOS sensor (1/2.9" type) that's extremely sensitive, which makes the camcorder suitable for low-light videography. A NightShot function extends that functionality to complete darkness; a built-in infrared LED illuminates the dead of night.

Inputs and outputs are just what you'd expect from a professional camcorder. There's HD/SD-SDI output. For multi-camera shoots, you have timecode input/output and genlock in. There are also dual XLRs for audio, composite video out and HDMI out.

Sony PMW-100 Includes

  • "Sony PMW100 One 1/2.9"" Exmor CMOS XDCAM HD422 Handy Camcorder
  • BP-U30 Lithium-Ion Battery
  • BC-U1 Battery Charger
  • Shoulder Strap
  • Lens Hood
  • Lens Cap
  • Infrared Remote Commander
  • AV Connecting Cable
  • USB Cable
  • CR2032 Lithium Battery (for Backup)
  • CR2025 Lithium Battery (for IR Remote)
  • Software
  • Sony 1 Year Warranty"

Sony PMW-100 Features

  • Single 1/2.9-inch Exmor CMOS sensor
  • 50 Mbps MPEG HD422 recording as MXF files (UDF mode only)
  • SD Recording and Playback (DVCAM) standard
  • 10x Fixed Zoom Lens (f= 5.4 - 54 mm) (servo/manual switchable)
  • Two ExpressCard SxS Memory Card Slots
  • Record up to 4 hours 50 Mbps MPEG HD422 in camcorder using two 64 GB SxS-1A memory cards (must be purchased separately)
  • UDF (Professional Disc compatible) or FAT (XDCAM EX compatible) file format mode shooting to have similar high res files and workflows with existing Professional Disc and XDCAM EX camcorders
  • NightShot Function
  • Low power consumption
  • Compact and lightweight at under 4 lbs
  • 16:9, 3.5 inch color LCD
  • Slow & Quick motion
  • Focus Magnification for focus assistance
  • Slow Shutter Function
  • Shutter Angle Settings
  • Picture Cache Recording
  • High-quality four-channel audio recording
  • HD/SD-SDI output and composite/HD-Y output
  • USB interface for connecting camcorder as card reader
  • Six Standard Gamma settings and Four HyperGama Settings

Sony PMW-100 Specifications

Imaging Device 1x 1/2.9" Exmor CMOS sensor (1920 x 1080 effective picture elements)
Lens 10x optical zoom fixed lens
Focal Length 5.4-54 mm (equivalent to 40-400 mm on a 35 mm lens)
Iris f/1.8-2.9; auto/manual selectable
Focus 10 mm to infinity (wide), 800 mm to infinity (tele); auto/manual selectable
Image Stabilization On/off selectable; shift lens
Filter Diameter 37 mm; pitch: 0.75 mm
Minimum Illumination 0.40 lux (typical) in 1920 x 1080i59.94 mode, f/1.8, +18 dB gain, with 64-frame accumulation, 100% video level
0.08 lux (typical) in 1920 x 1080i59.94 mode, f/1.8, +18 dB gain, with 64-frame accumulation, 50% video level
Shutter Speed 1/32 to 1/2000 seconds
Slow Shutter 2, 3, 4, 5, 6, 7, 8, 16, 32 and 64-frame accumulation
Slow & Quick Motion Function 720p: 1-60 fps
1080p: 1-30 fps
White Balance Preset (3200 K), Memory A, Memory B/ATW
Gain -3, 0, 3, 6, 9, 12, 18 dB, auto gain control
Gamma Curve Selectable
Viewfinder 0.24" color LCD: 392 (H) x 224 (V), 16:9
LCD Monitor 3.5" color LCD monitor: 852 (H) x 3 (RGB) x 480 (V), 16:9
Microphone Omni-directional stereo electret condenser microphone
Video Formats UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL): CBR, 50 Mb/s
MPEG HD420 (1440 x 1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s) - playback only
LP mode (VBR, maximum bit rate: 18 Mb/s) - playback only
UDF Mode (SD Recording)
DVCAM (CBR, 25 Mb/s)
FAT Mode (HD Recording)
MPEG HD420 (1920 x 1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
FAT Mode (SD Recording)
DVCAM (CBR, 25 Mb/s)
Audio Formats UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL): 4 channels, 48 kHz, 24-bit LPCM
MPEG HD420 (1440x1080, MPEG-2 MP@HL): 4 channels, 48 kHz, 16-bit LPCM
UDF Mode (SD Recording)
DVCAM: 4 channels, 48 kHz, 16-bit
FAT Mode (HD Recording)
MPEG HD420 (1920 x 1080, MPEG-2 MP@HL): 2 channels, 48 kHz, 16-bit LPCM
FAT Mode (SD Recording)
DVCAM: 2 channels, 48 kHz, 16-bit LPCM
Recording Media SBP-8/16/32, (GB) SxS Express 34 Cards
Recording/Playback time: 1 UDF Mode (HD Recording)
50 Mb/s MPEG HD422 (MPEG-2 422P@HL):
Approx. 120 min with SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card
35 Mb/s VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL):
Approx. 180 min with SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card
Recording/Playback time: 2 UDF Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card
Recording/Playback time: 3 FAT Mode (HD Recording)
35 Mb/s VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL):
Approx. 200 min with SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card
25 Mb/s CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14):
Approx. 280 min with SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card
Recording/Playback time: 4 Fat Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card
Genlock In BNC x1 (switchable to Video Out), 1.0 Vp-p, 75Ohms
TC IN x1 (switchable to TC Out), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10kOhms
Audio In XLR-type 3-pin (female) (x2): line, mic, mic +48 V selectable
SDI Out BNC x1, HD/SD switchable, SMPTE-292M/259M
Composite Video Out BNC x1, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75Ohms
Audio Out A/V OUT jack: 10 pin connector
TC Out BNC x1 (switchable to TC In), SMPTE-12M-2008, 1.0 Vp-p, 10kOhms
Earphone Mini-jack x 1 (rear: stereo)
Monitor Speaker Monaural, 250 mW
i.Link IEEE-1394, 4-pin, (x1), HDV (HDV 1080i) / DV input/output, S400
USB USB 2.0 (device), mini-B type x1
Built-In Microphone Omni-directional stereo electret condenser microphone
Memory Card Slot ExpressCard/34 slot x 2
Power Requirements DC 12 V
Power Consumption Approx. 12 W (while recording, EVF On, LCD monitor Off, I/O Select Off)
Approx. 14 W (while recording, EVF On, LCD monitor On, I/O Select HD SDI and HD HDMI)
Operating Temperature 0 to +40 deg.C (+32 to +104 deg.F)
Storage Temperature -20 to +60 deg.C (-4 to +140 deg.F)
Humidity 10 to 90% (relative humidity)
Continuous Operating Time Approx. 240 min. with BP-U60 battery
Dimensions (W x H x D) Without Protrusions: 6.6 x 6.5 x 11.0" (16.7 x 16.5 x 27.9 cm)
Weight Approx. 3 lbs, 5 oz (1.5kg) (body)
Approx. 3 lbs, 15 oz (1.7kg) (with lens hood, eye piece, BP-U30 battery, one SxS memory card)
