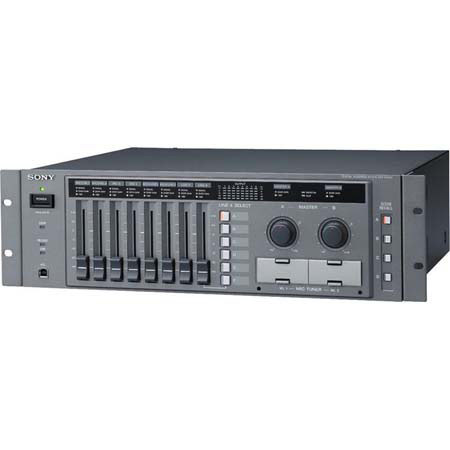

Sony SRPX700P Digital Powered A/V Matrix Mixer
See all Sony items

Sony SRPX700P Digital Powered A/V Matrix Mixer with 50Hz - 10MHz Frequency Response

SKU: SOSRPX700P
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Sony SRPX700P Specifications

  • Antenna

    BNC x2, DC 9V out

  • Color System

    NTSC/PAL/SECAM

  • Total Harmonic Distortion

    Less than 0.01%

  • Operating Temperature

    32 to 104 Degrees F

  • Storage Temperature

    -4 to 140 Degrees F

  • Resolution

    1280 x 1024 pixels

  • Frequency Response

    50Hz-10MHz

  • Audio S/N Ratio

    More than 104dB (IHF A)

  • Component/RGB Frequency Response

    10Hz - 150MHz

  • Level

    1 V p-p (75 ohms)

  • Power Requirements

    120/220/230 V
    A/C 50/60Hz

  • Power Consumption

    150 W

  • Dimensions

    19 x 5 1/4 x 13 7/8 inches

  • Weight

    28 lb 11oz

  • Warranty

    Sony warranty

0 Accessories for Sony SRPX700P Digital Powered A/V Matrix Mixer with 50Hz - 10MHz Frequency Response

About Sony SRPX700P

The Sony SRP-x700 powered A/V matrix mixer offers an "All-in-One" solution for multimedia presentations. A totally new multimedia presentation concept unites the functions of a high quality audio mixer, wireless microphone receiver slots, RGB/video switcher, equalizer, active feedback reducer and power amplifier in a single, compact unit.

Ideal for conference rooms and lecture theatres as well as a wide range of other presentation applications, the Sony SRP-x700 powered A/V matrix mixer reflects a major trend in modern presentations towards combining wireless and wired microphones with audio from multimedia sources ranging from video recorders and DVD players to notebook PCs and LCD projectors.

Sony SRPX700P Features

  • 6 x 1 AV switcher contains 2-RGB/component video inputs (with 5.1 surround audio), 1- RGB input (with stereo audio) and 3-composite/S-video inputs (with stereo audio)
  • Integrated high quality six input mixer comprised of 4-microphone, 2-microphone/line and 2-line inputs
  • Mounting slots are built in for two (optional WRU-806B or UWP-M2) wireless mic diversity receiver modules
  • Audio signal processing includes digital equalizer and dynamics processing for each microphone channel, plus on-board digital feedback reducer
  • Built-in 200W + 200W (4ohm), 150W + 150W (8ohm), Max. 150W (70V line) digital power amplifier
  • 20 scene memory, plus last memory recall
  • USB, RS-232C and parallel input ports for remote control from a PC, third party system controller or control panel
  • RS-232C output port for remote control of applicable video/data projector or plasma display panels
  • Control-S ports for remote control to Sony VCR's, DVD players, CD players, MD players and video/data projectors
  • Parallel output port for remote control to environment devices such as video screen up/down, window curtains open/close
  • Set up and operational PC software supplied

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Contains 2-RGB video inputs 1- RGB input and 3 S-video inputs
  • Mounting slots are built in
  • Includes digital equalizer and dynamics processing
  • Built-in digital power amplifier
  • 20 scene memory, plus last memory recall
  • USB, RS-232C and parallel input ports

What's in the box:

  • Sony SRPX700P Digital Powered A/V Matrix Mixer
  • IR Transmitter
  • Control Software Disc
  • AC Power Cord
  • Sony 1 Year Warranty
