Sony URXM2 UWP Series Plug-in Tuner Module, Operating on UHF TV Channels 30 to 33

Mfr. Part: URXM23032     SKU: SOURXM2U3032

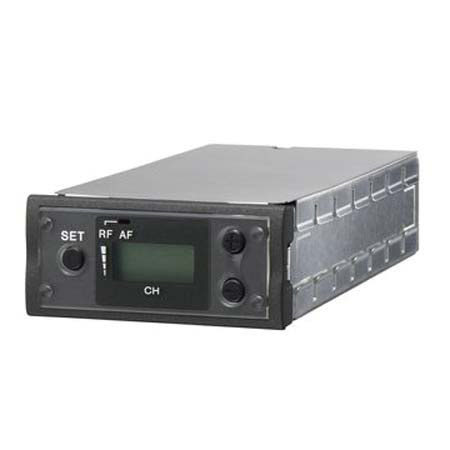

Sony URXM2 UWP Series Plug-in Tuner Module, Operating on UHF TV Channels 30 to 33
enlarge image

$410.00 Before $61.00 Savings
Free Shipping view details

Product Rating Write a Review

Item Includes
Sony URXM2 UWP Series Plug-in Tuner Module - Operation Instructions - Sony Warranty

Description
The Sony URXM2 UWP series compact plug-in tuner module provides space diversity reception with stable RF reception. The URX-M2/3032 operates on UHF TV channels 30, 31, 32 and 33.

This UWP series plug-in tuner module can be used with the Sony MB-X6 tuner base unit, the SRP-X700P powered mixer, or the SRP-X500P powered mixer.

Features
Space diversity reception provides stable RF reception
RF squelch function virtually eliminates ambient noise and unwanted signals from other wireless mic systems
LCD screen provides extensive setup information
LED Indicates proper RF reception

Specifications
Receiving frequencies566 MHz to 590 MHz (TV channels 30,31,33,33), users may choose from 188 frequencies
S/N Ratio60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
Antenna1/4 wave length wire
Pilot tone signal32 kHz
Frequency Range566 MHz to 590 MHz (TV channels 30,31,33,33), users may choose from 188 frequencies
RF squelch level25 dBu
Frequency Response50 Hz to 18 kHz (typical)
De-emphasis50 us
Reference deviation+/-5 kHz (at 1 kHz modulation)
Local OscillatorsCrystal-controlled PLL synthesizer
LCD IndicatorLCD: Operating channel number/frequency, audio-output status, RF-input level LED: RF-input status
RF Squelch25 dBu
LED IndicatorRF-input status
Tone Signal32 kHz
Type of ReceptionF3E
Power RequirementsDC 9.0V
OscillatorCrystal-controlled PLL synthesizer
Dimensions (W x H x D)2-1/2 x 1-1/16 x 4-7/8 inches
Weight5.3 oz
WarrantySony warranty
