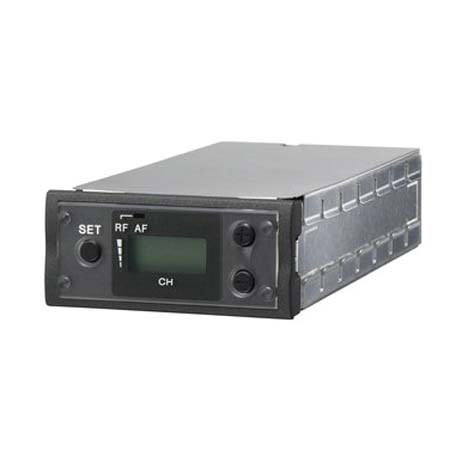

Sony URXM2 UWP Series Plug-in Tuner Module, Operating on UHF TV Channels 42 to 45
Mfr. Part: URXM24244 SKU: SOURXM2U4244
enlarge image
|
|
 |
|
|
|
Item Includes
Sony URXM2 UWP Series Plug-in Tuner Module - Operation Instructions - Sony Warranty
|
Description
The Sony URXM2 UWP series compact plug-in tuner module provides space diversity reception with stable RF reception. The URX-M2/4244 operates on UHF TV channels 42, 42, 44 and 45.
This UWP series plug-in tuner module can be used with the Sony MB-X6 tuner base unit, the SRP-X700P powered mixer, or the SRP-X500P powered mixer. |
Features
 |
Space diversity reception provides stable RF reception |
|
RF squelch function virtually eliminates ambient noise and unwanted signals from other wireless mic systems |
|
LCD screen provides extensive setup information |
|
LED Indicates proper RF reception |
Specifications
| Receiving frequencies | 638 MHz to 662 MHz (TV channels 42,42,44,45), users may choose from 188 frequencies |
| S/N Ratio | 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted) |
| Antenna | 1/4 wave length wire |
| Pilot tone signal | 32 kHz |
| Frequency Range | 638 MHz to 662 MHz (TV channels 42,42,44,45), users may choose from 188 frequencies |
| RF squelch level | 25 dBu |
| De-emphasis | 50 us |
| Frequency Response | 50 Hz to 18 kHz (typical) |
| De-emphasis | 50 us |
| Reference deviation | +/-5 kHz (at 1 kHz modulation) |
| Signal-to-noise ratio | 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted) |
| Local Oscillators | Crystal-controlled PLL synthesizer |
| LCD Indicator | LCD: Operating channel number/frequency, audio-output status, RF-input level LED: RF-input status |
| RF Squelch | 25 dBu |
| LED Indicator | RF-input status |
| Tone Signal | 32 kHz |
| Type of Reception | F3E |
| Power Requirements | DC 9.0V |
| Oscillator | Crystal-controlled PLL synthesizer |
| Dimensions (W x H x D) | 2-1/2 x 1-1/16 x 4-7/8 inches |
| Weight | 5.3 oz |
| Warranty | Sony warranty |
| | |
|
|
|
|
|
|
