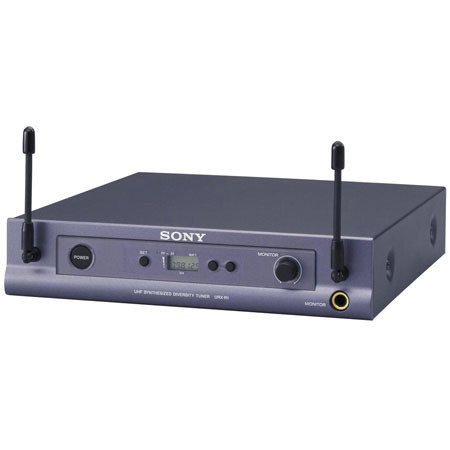

Sony URX-R162/64 UWP Series Portable Tuner for the UWP-S1 & UWP-S2 Wireless Mics, Channels 62 to 65.
Mfr. Part: URXR16264 SKU: SOURXR16264
enlarge image
$435.00 Before $106.00 Savings
|
|
|
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order. |
|
|
Item Includes
Description
The UWP series half-rack size tuner provides space diversity reception with stable RF reception. The URX-R1 62/64 operates on TV channels 62,63,64,65. This 1/2 rack size tuner is ideally suited for use in PA applications.
PLL synthesized system:
Key to achieving stable transmission & reception is the use of a stable carrier signal to avoid interference with other frequency channels & to allow the selection of a preferred channel from multiple frequencies. The UWP series achieves this by using a UHF Phase Locked Loop frequency synthesized system, which provides the use of accurate carrier signal frequencies.
This system is used in both the transmitter & tuners, so that a stable carrier is generated at the transmitter & accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of 125 kHz .
Space diversity reception system:
In general, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but the UWP series reduces this to a minimum. By utilizing a space diversity reception system, it achieves stable transmission by using dual-antenna inputs/reception circuits that receive signals over 2 different paths & automatically selecting the stronger RF signal for output. The space diversity reception system is adopted in all UWP tuners. In addition, the antennas of the portable & 1/2 rack size tuners each allow for angle adjustments, helping to further eliminate signal drop out.
Tone squelch circuitry:
When operating a wireless microphone system, it is essential that the tuner not pick up carrier signals transmitted from other systems. In order to avoid this, the UWP series transmitters transmit a 32 kHz pilot-tone signal along with the audio signal. The squelch circuit of the UWP series tuners recognizes this tone signal, & will output the audio signal only when this tone signal is received.
This function virtually prevents the output of unwanted signals or noise from other signal transmissions in the air, as well as the RF noise & popping noise that occur when the transmitter is powered on or off.
Pre-programmed operating frequencies:
The transmitters & tuners included in the UWP series incorporate pre-programmed frequencies that meet the wireless-communications regulations of each country. The UWP series operates within the following frequency ranges: (62/64) 758 MHz to 782 MHz OR (66/68) 782 MHz to 806 MHz (each model provides 188 selectable frequencies).
Simultaneous multi-channel operation:
The UWP series allows simultaneous operation of up to 16 wireless microphones. Optimum combinations of practically tested, intermodulation-free frequencies are stored in the UWP tuners. By using the pre-programmed frequency groups, users can easily choose intermodulation-free frequencies for the transmitters and tuners, simplifying the task of system setup.
|
Features
 |
Space diversity reception provides stable RF reception |
|
RF squelch function virtually eliminates ambient noise and unwanted signals from other wireless mic systems |
|
Angle-adjustable antennas help eliminate signal dropout |
|
LCD screen provides extensive setup information |
|
LED Indicates proper RF reception |
|
Equipped with both XLR (balanced) and 1/4 inch phone (unbalanced) type output connectors |
|
Output level on XLR output can be switched between Mic and Line levels |
|
Front panel stereo headphone jack with monitor volume control |
Specifications
| Receiving frequencies | 758 MHz to 782 MHz (TV channels 62,63,64,65) Users may choose from 188 frequencies |
| Type of reception | Space Diversity |
| Local oscillators | Crystal-controlled PLL synthesizer |
| Reference deviation | +/-5 kHz (at 1 kHz modulation) |
| Signal-to-noise ratio | 60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted) |
| Power requirements | DC 9.0V (Supplied with AC/DC adaptor) |
| Antenna | 1/4 wave length wire |
| Pilot tone signal | 32 kHz |
| RF squelch level | 25 dBu |
| Frequency response | 50 Hz to 18 kHz (typical) |
| Audio output connector | 1/4 inch phone jack (unbalanced) or XLR-3 32 type (balanced) |
| Audio output level | Audio output level XLR-3 32: -28 dBm (LINE level) or -58 dBm (MIC level)
Audio output level 1/4-inch phone jack: -30 dBm |
| Monitor output level | 5 mW (at 16 Ohms) |
| Monitor output connector | 1/4 inch phone jack |
| LCD Indicator | Operating channel number/frequency, audio-output status, RF-input level |
| LED Indicator | RF-input status |
| Dimensions (W x H x D) | 8 3/8"x 1 3/4"x 8 1/4" |
| Mass | 2 LB 14 OZ |
| | |
|
|
|
|
|
|
|
|
|
|
|
