About Sony UTXB2X

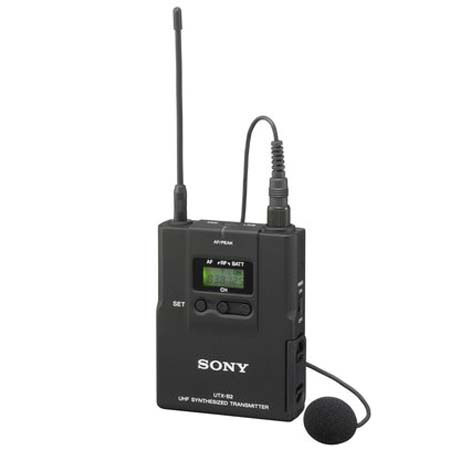

The Sony UTXB2X UWP series compact and lightweight bodypack transmitter comes supplied with an uni-directional lavalier microphone. The UTX-B2X/3032 operates on UHF TV channels 30, 31, 32 and 33.

This bodypack transmitter (with uni lav mic) is ideally suited AV presentation applications.

Sony UTXB2X Features

  • Compact and lightweight design
  • Attenuator function allows adjustment of the audio-input level to suit each user's voice
  • Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
  • 8 hours of continuous operation with two AA-size alkaline batteries
  • LCD screen provides extensive set up information
  • 3-pole mini-jack input connector with lock mechanism accepts the output of supplied lavalier microphone

Sony UTXB2X Specifications

Crystal-controlled PLL synthesizer
Type of emission
Carrier frequencies
566 MHz to 590 MHz (TV channels 30,31,32,33), users may choose from 188 frequencies
S/N Ratio
60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
RF power output
30mW or 5mW (selectable)
1/4 wave length wire
Pilot tone signal
32 kHz
Frequency response
50 Hz to 18 kHz (typical)
Frequency Range
566 MHz to 590 MHz (TV channels 30,31,32,33), users may choose from 188 frequencies
Reference deviation
+/- 7 kHz (-60dBV, 1 kHz input)
Signal-to-noise ratio
60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
Audio Input Level
- 60 dBV (at 0 dB attentuator level)
LCD Indicator
Operating channel number/frequency, attenuator level, RF-output level (high-low), audio input status, transmitter battery status and accumulated operating time
Audio attenuator adjustment range
0 to 21 dB (in 3 dB steps)
Local Oscillators
Crystal-controlled PLL synthesizer
Microphone Capsule
Electret condenser, uni-directional
Audio input connector
3-pole mini jack (x1)
LED Indicator
Power status
Tone Signal
32 kHz
Type of Reception
Battery life
8 hours with Sony AA-size alkaline batteries
Power Requirements
DC 3.0V (two AA-size alkaline batteries)
2-1/2 x 3-1/4 x 3/4 inches (excluding antennas)
5.1 oz including batteries
Sony warranty
