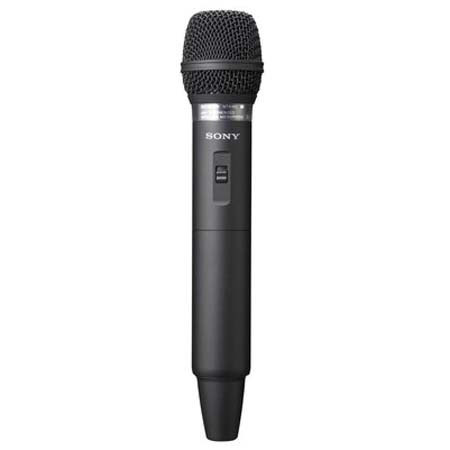

Sony UTXH2 UWP Series Handheld Microphone, Operating on UHF TV Channels 30 to 33

Mfr. Part: UTXH23032     SKU: SOUTXH2U3032

Sony UTXH2 UWP Series Handheld Microphone, Operating on UHF TV Channels 30 to 33
enlarge image

Free Shipping view details

Product Rating
(1 Rating)
41
Write a Review
Read 1 Review

Item Includes
Sony UTXH2 UWP Series Handheld Microphone - Operation Instructions - Microphone Holder - Screw Adapter - Sony Warranty

Description
The Sony UTXH2 UWP series handheld microphone contains a uni-directional microphone capsule. The UTX-H2/3032 operates on UHF TV channels 30, 31, 32 and 33. This handheld microphone is ideally suited for A/V presentation applications.

Features
Internal antenna design
Attenuator function allows adjustment of the audio input level to suit each user's voice
Selectable RF output level: 5 mW (suitable for simultaneous multichannel operation) or 30 mW (for long distance transmission)
8 hours of continuous operation with two AA-size alkaline batteries
LCD screen provides extensive set up information

Specifications
S/N Ratio60 dB or more(+/-5 kHz deviation at 1 kHz modulation, A-weighted)
Antenna1/4 wave length wire (internal)
Battery Life8 hours with Sony AA-size alkaline batteries
Frequency Range566 MHz to 590 MHz (TV channels 30,31,32, 33), users may choose from 188 frequencies
Capsule TypeDynamic
Frequency Response50 Hz to 18 kHz
Maximum Input Level151 dB SPL (at 21 dB attenuator level)
Audio Attenuator Adjustment Range0 to 21 dB (in 3 dB steps)
LCD IndicatorLCD: channel/freq, attenuator, RF-output, audio input, battery status, operating time LED: power
Local OscillatorsCrystal-controlled PLL synthesizer
Microphone CapsuleDynamic capsule (uni-directional)
Reference Deviation+/- 7 kHz (94 dB SPL, 1 kHz input)
RF Power Output30mW or 5mW (selectable)
Tone Signal32 kHz
Type of EmissionF3E
Power RequirementsDC 3 V
Dimensions1-15/16 x 10 inches
Weight11 oz including batteries
WarrantySony warranty
