Sony

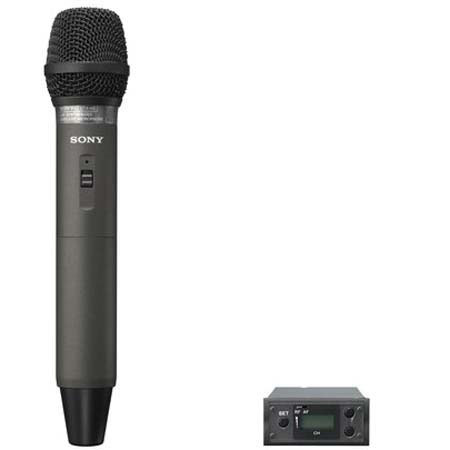

Sony UWPX8 Handheld Microphone TX & RX Module Wireless System, Operating on TV Channels 42 to 45

SKU: SOUWPX8U4244 MFR: UWPX8/4244
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$771.00 List Price

Our Price

$489.00 $19 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

About the Sony UWPX8

The Sony UWPX8 is UWP Series UHF synthesized wireless microphone system. The package includes a handheld microphone and tuner module. The Receiving Frequency of TV channel is 42 to 45.

Sony UWPX8 Includes

  • Sony Handheld Microphone
  • Tuner Module
  • Microphone Holder
  • Screw Adaptor
  • Sony 1 Year Warranty

Summary of Customer Reviews

(1)
Customers most agreed on the following attributes:
Reviewer Profile:
Professional musician (1)

Sony UWPX8 Features

  • Consists of a handheld microphone and tuner module
  • Suitable for use in PA systems
  • Supplied with microphone holder and screw adapter
  • Tuner module can be installed in MB-X6 tuner frame or SRP Series powered mixers
  • PLL Synthesized System: Achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies
  • Space Diversity Reception System: Typically, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but UWP series tuners reduce this to a minimum
  • Tone Squelch Circuitry: To avoid picking up carrier signals transmitted from other systems, the transmitter transmits a 32 kHz pilot-tone signal along with the audio signal. The tuner's squelch circuit recognizes this tone signal and outputs the audio signal only when this tone signal is received
  • Simultaneous Multi-Channel Operation: Simultaneous operation of up to 16 wireless microphones. Optimum combinations of practically tested, interference-free frequencies are stored in the tuner

Sony UWPX8 Specifications

Tuner Oscillator Crystal-controlled PLL synthesizer
Tuner Type of Reception Space diversity
Tuner Receiving Frequencies 638 MHz to 662 MHz (TV channels 42 to 45) Users may choose from 188 frequencies on each model
Tuner Antenna 1/4 wave length wire
Tuner Pilot Tone Signal 32 kHz
Tuner RF Squelch Level 25 dBµ
Tuner De-emphasis 50µs
Tuner Frequency Response 50 Hz to 18 kHz
Tuner Reference Deviation ±5 kHz (at 1kHz modulation)
Tuner Signal-To-Noise Ratio 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Tuner Indicators (LCD, LED) Operating channel number/frequency, audio-output status, RF-input level, RF-input status
Tuner Power Requirements DC 9.0 V
Microphone Oscillator Crystal-controlled PLL synthesizer
Microphone Type of Emission F3E
Microphone Carrier Frequencies 638 MHz to 662 MHz (TV channels 42 to 45) Users may choose from 188 frequencies on each model
Microphone RF Power Output 30mW or 5 mW (selectable)
Microphone Antenna 1/4 wave length wire (internal)
Microphone Pilot Tone Signal 32 kHz
Microphone Frequency Response 50 Hz to 18kHz
Microphone Signal-To-Noise Ratio 60 dB or more (±5 kHz deviation at 1 kHz modulation, A-weighted)
Microphone Microphone Capsule Dynamic capsule (uni-directional)
Microphone Audio Attenuator Adjustment Range: 0 to 21 dB (in 3 dB steps)
Mic Max. Input Sound Pressure Level 151 dB SPL (at 21 dB attenuator level)
Microphone Indicators (LCD, LED) channel number/freq, attenuator level, RF-output, audio-input, RF-output, battery, operating time
Microphone Power Requirements DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Microphone Battery Life 8 hours with Sony AA-size alkaline (LR6) batteries at 25° C (77° F) at 30 mW output
Dimensions (W x H x D) Tuner Module: 2-1/2 x 1-1/16 x 4-7/8 inches
Handheld Microphone: 1-15/16 x 10 inches
Weight Tuner Module: Approx. 5.3 oz
Handheld Microphone: Approx. 10.9 oz including batteries
Warranty Sony warranty
