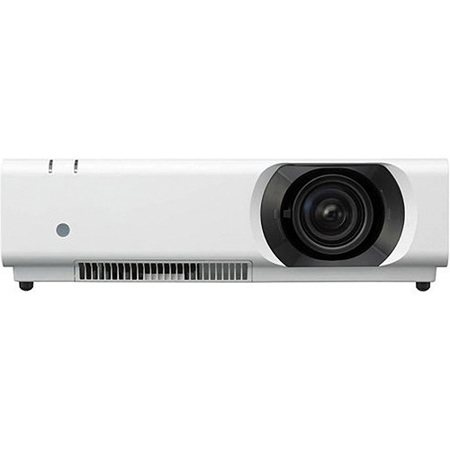

Sony VPLCW255 WXGA 4500 Lumens LCD Projector, 1280x800 Resolution, 3700:1 Contrast Ratio, 16:10 Aspect Ratio


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $2,600.00

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Sony VPLCW255: Picture 1 regular $1,749.00

About Sony VPLCW255

The Sony VPLCW255 4,500 Lumens LCD Projector offers superior WXGA 16:10 widescreen resolution and environmentally-friendly features. The VPL-CW255 incorporates Sony's BrightEra 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent color stability and longer durability and usability. It also features three brightness modes to suit individual user's needs - 4,500, 3,400 and 2,500 lumens. The low brightness mode generates lower operating costs by reducing power consumption and extending the lamp lifetime to approximately 5,000 hours. The projector also has a contrast ratio of 3700:1, a range of video inputs, including HDMI and RJ45 or RS-232C connectors for control.

Sony VPLCW255 Features

  • Maximum 4,500 lumens brightness with High, Standard and Low modes: The VPL-CW255 features three brightness modes for different uses - High 4,500 lumens for naturally white presentations in bright rooms, Standard 3,400 lumens for everyday use and Low 2,500 lumens for video in darkened rooms
  • 1.32 - 1.91:1 throw ratio: The VPL-CW255 offers a 1.32 - 1.91:1 throw ratio that can accommodate most large classrooms or large meeting rooms
  • 3 LCD BrightEra technology: Sony's 0.75-inch BrightEra inorganic TFT 3 LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • WXGA 16:10 widescreen resolution: The VPL-CW255 has a native WXGA (1280 x 800) 16:10 screen resolution panel that is perfect for presentations direct from video, laptop or PC
  • 5,000 hours lamp life: Extended lamp life is possible with a new driving scheme that reduces gap expansion and brightness gradation, plus a new cooling system that allows uniformity in the temperature of the glass bulb and prevents it from clouding
  • Environmentally-friendly Eco Mode: Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push and further adjustments are available through an easily understood menu system
  • Environmentally-friendly Lamp Dimming: With Lamp Dimming, the projector can reduce power consumption and brightness by 10-15% without user detection. After a pre-set time assigned by the user, the brightness and power consumption will reduce to 30% power usage
  • Environmentally-friendly Picture Mute: Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours. This feature can be used in the education market as an instant off/on between class changes
  • Vertical and horizontal keystone adjustment: The projector can correct keystone distortion by V: +/- 30% H: +/- 20% for perfect installation adjustment
  • Smart APA (Auto Pixel Alignment): When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually
  • Auto Input Search: Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation
  • Audio switcher facility: To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system
  • Picture Freeze function: Picture Freeze is useful during presentations if you need to look at other material on your PC's screen without the viewing audience being aware. Freeze the current image and you can use your PC independently of the display from the projector
  • Digital Zoom: With Digital Zoom, if you are displaying a computersourced image, you can enlarge a selected area of the screen image
  • Off and Go: At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a 'power down' cycle
  • Direct Power On/Off: With this function, there is no need to go through Standby mode when powering up the projector. The projector can be set to activate as soon as power is applied
  • Filter cleaning at the same time as lamp replacement: The filter only needs to be cleaned when a new lamp is fitted, potentially halving disruption due to maintenance
  • Multiple Picture modes: The VPL-CW255 has six picture modes (Dynamic, Standard, Game, Living, Cinema and Presentation) that can be selected to suite the nature of the source material
  • Built-in security measures: The VPL-CW255 has a package of security measures, including password protection and physical anti-theft anchor points

Sony VPLCW255 Specifications

Display system
3 LCD system
Size of effective display area
0.75" (19.0 mm) x 3, BrightEra, Aspect ratio: 16:10
Number of pixels
3,072,000 (1280 x 800 x 3) pixels
Lens Shift
Manual V: +/- 5% H: +/-3%
Throw Ratio
1.32 - 1.91:1
Light source
High-pressure mercury lamp 245 W type
Recommended lamp replacement time
3000 H / 4000 H / 5000 H (Lamp mode: High / Standard / Low)
Filter cleaning cycle
Max. 5000 H / Same time as the lamp replacement is recommended
Screen size
40" to 300" (1.02 M to 7.65 M)
Keystone correction
Vertical: Max. +/- 30 degrees
Horizontal: Max. +/- 20% degrees
OSD language
20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)
Input A
RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack
Input B
RGB input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack
Input C
HDMI 19-pin, HDCP support. Audio input: HDMI audio support
S Video IN
S video input connector: Mini DIN 4-pin, Audio input connector: RCA (Shared with Video In)
Video IN
Video input connector: RCA, Audio input connector: RCA (Shared with S-Video)
Monitor output connector: Mini D-sub 15-pin (female), Audio output connector: Stereo mini jack (variable out)
Control signal input/output
RS-232C connector: D-sub 9-pin (female), LAN connector: RJ45, 10BASE-T/100BASE-TX
Operating temperature
0Deg.C to 40Deg.C / 32Deg.F to 104Deg.F (35% to 85% (no condensation))(Operating humidity)
Storage temperature (Storage humidity)
-10Deg.C to 60Deg.C / -4Deg.F to 140Deg.F (10% to 90%)
Power requirements
AC 100 V to 240 V, 1.4A to 3.6 A 50 Hz /60 Hz
Power consumption
AC 100 V to 120 V: 340 W / 280W / 240W (Lamp mode: High / Standard / Low)
AC 220 V to 240 V: 320 W / 265W / 225W (Lamp mode: High / Standard / Low)
Standby mode power consumption 1
AC 100 V to 120 V: 3W / < 0.5 W (Standby mode: Standard / Low)
AC 220 V to 240 V: 3W / < 0.5 W (Standby mode: Standard / Low)
Lamp mode
Light output
4500 lm / 3400 lm / 2500 lm
Color light output
4500 lm / 3400 lm / 2500 lm
Contrast ratio (full white / full black)
Fan noise
30dB (low)
10 W x 1 (monaural)
19 kHz - 92 kHz
48 Hz - 92 Hz
Computer signal input
Maximum input signal resolution: UXGA 1600 x 1200 (resizing display), Panel display resolution: 1280 x 800 pixels
Video signal input
NTSC3.58, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Color system
Auto / NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Color System Resolution
720 TV Lines
Heat dissipation
AC 100 V to 120 V: 1195 BTU
AC 220 V to 240 V: 1126 BTU
Dimensions (W x H x D)
406 x 122.3 x 330.5mm (15.9 x 4.8 x 13")
406 x 113 x 330.5mm (15.9 x 4.3 x 13 in) (without protrusion)
5.5kg / 12lb / 2oz (without wall mount)
