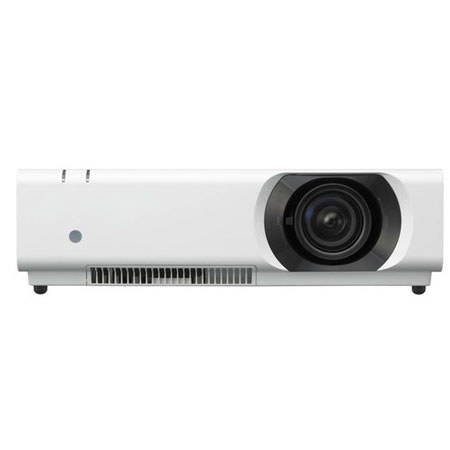

Sony VPL-CW275 5100 Lm WXGA Basic Installation Projector, 3700:1 Contrast Ratio, 16:10 Aspect Ratio, 1.5x Projection Lens, 3000 H High Mode Lamp Life


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $2,900.00

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Sony VPL-CW275 5100 Lm: Picture 1 regular $1,949.00

About Sony VPL-CW275 5100 Lm

The Sony VPL-CW275 5100 Lm WXGA Basic Installation Projector offers a 5100lm brightness and 1.32 - 1.91:1 throw ratio for new or WXGA replacement business. This projector has been designed to be easy to operate and to deliver a low total cost of ownership.

Furthermore, in common with all Sony projectors, the VPL-CW275 features Sony's BrightEra 3LCD inorganic panel technology that delivers higher picture quality, substantially brighter images, higher efficiency, better contrast, consistent color stability and longer durability and usability.

The VPL-CW275 also features Sony's only 3 brightness modes (High 5,100, Standard 4200, Auto Lamp Mode ) to suit each individual user's needs. The Auto lamp mode adjusts brightness depending on the image projected, lowering operating costs by reducing power consumption and extending the lamp lifetime to approximately 4000 hours. This projector also has a contrast ratio of 3000:1, video inputs, HDMI and RJ45 or RS232C connectors for control.

Sony VPL-CW275 5100 Lm Features

  • Maximum 5100 lumens brightness with High, Standard and Auto modes: The VPL-CW275 features three brightness modes for your different uses - High for naturally white presentations in bright rooms, Standard for everyday use and Auto Lamp Mode multiple image projections
  • 1.32 - 1.91:1 throw ratio: The VPL-CW275 offers a 1.32 - 1.91:1 throw ratio that can accommodate most large classrooms or large meeting room's current replacement installation
  • Lens Shift Range: Vertical: +/- 5%, Horizontal: +/- 3%: The VPL-CW275's lens shift range adjustment means that the projector can be positioned picture perfect and horizontally offset to avoid any minor ceiling obstacles
  • 3-LCD BrightEra Technology: Sony's 0.75 inch BrightEra inorganic TFT 3-LCD panels deliver improved panel light resistance, higher resolution, high brightness and increased panel reliability
  • WXGA Widescreen Resolution: The VPL-CW275 has a color light output of 5100 ANSI lumens and with a native WXGA (1280 x 800) 16:10 screen resolution panel is perfect for presentations direct from video, laptop or PC
  • 4000 hours Lamp Life: New driving scheme reduces gap expansion that reduces brightness gradation and a new cooling system allows uniformity in the temperature of the glass bulb which prevents the glass from clouding
  • Eco Mode Key: Users can easily select power-saving Eco Modes. The most energy-efficient mode is accessible though a single button-push and further adjustments are available through an easily understood menu system
  • ECO Lamp Dimming: This projector (if function is on) can reduce power consumption and brightness by 10-15% without user detection during a input image. After a user pre-set time, the brightness and power consumption will reduce to 30% power usage
  • ECO Picture Mute - (Instant off / Instant On): New Picture Mute reduces power consumption down to 30% power usage, saving cost and lamp hours
  • Vertical and Horizontal Keystone Adjustment: The projector can correct keystone distortion by V: +/- 30% H: +/- 20% for perfect installation adjustment
  • Smart APA (Auto Pixel Alignment): When a computer is used as a picture source, APA automatically optimizes Phase, Pitch and Shift values. These can also be adjusted manually
  • Auto Input Search: Auto Input Search detects which input has an incoming signal and automatically switches to it. This makes it easier for users to set up the projector prior to making a presentation
  • Picture Muting: If the picture needs to be turned off, all it takes is a single button-press on the remote control. This will mute audio at the same time. There is also a separate "mute audio" button for audio-only muting
  • Audio switcher facility: To avoid the need for a separate audio switcher, the projector can be used to select between two audio sources, routing them via a variable audio output to the room amplification system
  • Picture Freeze Function: Picture Freeze is useful during presentations if you need to look at other material on your PC's screen without the viewing audience being aware. Freeze the current image and you can use your PC independently of the display from the projector
  • Digital Zoom: With Digital Zoom, if you are displaying a computer-sourced image, you can enlarge a selected area of the screen image up to four times
  • Off and Go: At the end of a presentation, you can turn off the power supply to the projector immediately, instead of going through a 'power down' cycle
  • Direct Power On/Off: With this function, there is no need to go through 'Standby' mode when powering up the projector. The projector can be set to activate as soon as power is applied
  • Filter replaced at the same time as lamp: The filter only needs to be changed when a new lamp is fitted, potentially halving disruption due to maintenance
  • Multiple Picture Modes: The VPL-CW275 has six picture modes (Dynamic, Standard, Game, Living, Cinema and Presentation) that can be selected to suite the nature of the source material
  • Built-in security measures: The VPL-CW275 has a package of security measures, including password protection and physical anti-theft anchor points

Sony VPL-CW275 5100 Lm Specifications

Display system
3 LCD system
Size of effective display area
0.75" (19.0 mm) x 3, BrightEra
Aspect ratio
Number of pixels
3,072,000 (1280 x 800 x 3) pixels
Projection lens: Zoom
Projection lens: Focus
Projection lens: Lens Shift
Manual V: +/- 5% H: +/- 3%
Throw Ratio
1.32 - 1.91:1
Light source
High-pressure mercury lamp 280 W type
Recommended lamp replacement time
3000 H / 4000 H (Lamp mode: High / Standard)
Filter cleaning cycle
Max 4000 H / same time as lamp replacement is recommended
Screen size
40" to 300" (101.6 cm to 762 cm)
Light output
Lamp mode: High: 5100 lm / Lamp mode: Standard: 4200 lm / Lamp Mode: Low: Auto
Color light output
5100 lm / 4200 lm / Auto
Contrast ratio
Fan noise
36dB (Standard)
Displayable scanning frequency
Horizontal: 19 kHz - 92 kHz
Vertical: 48 Hz - 92 Hz
Display resolution
Computer signal input: Maximum input signal resolution: UXGA 1600 x 1200 (resizing display), Panel display resolution: 1280 x 800 pixels
Video signal input: NTSC3.58, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
Color system
Auto / NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Color System Resolution
720 TV Lines
(V & H) Keystone correction
Vertical: Max. +/- 30 degrees Horizontal: Max. +/- 20% degrees
OSD language
23-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian, Indonesian, Finnish, Hungarian)
Computer and video signal input/output-1
RGB / Y PB PR input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack
INPUT B: RGB input connector: Mini D-sub 15-pin (female), Audio input connector: Stereo mini jack
INPUT C: HDMI 19-pin, HDCP support. Audio input: HDMI audio support
S VIDEO IN: S video input connector: Mini DIN 4-pin, Audio input connector: RCA (Shared with Video In)
VIDEO IN: Video input connector: RCA, Audio input connector: RCA (Shared with S-Video)
Computer and video signal input/output-2
OUTPUT: Monitor output connector: Mini D-sub 15-pin (female), Audio output connector: Stereo mini jack (variable out)
Control signal input/output
RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Operating temperature
0deg.C to 40deg.C / 32deg.F to 104deg.F
Operating humidity
35% to 85% (no condensation)
Storage temperature
-10deg.C to 60deg.C / -4deg.F to 140deg.F
Storage humidity
10% to 90%
Power requirements
AC 100V to 240V, 1.7A to 3.9A 50Hz/60Hz
Power consumption
AC 100 V to 120 V: 397W / 345W (lamp Mode: High / Standard)
AC 220 V to 240 V: 373W / 323W (Lamp Mode: High / Standard)
Standby mode power consumption
AC 100 V to 120 V: 3W / < 0.5 W (Standby mode: Standard / Low
AC 220 V to 240 V: 3W / < 0.5 W (Standby mode: Standard / Low)
Dimensions (WxHxD)
406x122.3x330.5 mm / 15.98x4.81x13.01
Without protrusion: 406x113 x330.5 mm / 15.98x4.44x13.01"
5.5 kg / 12.12 lbs
