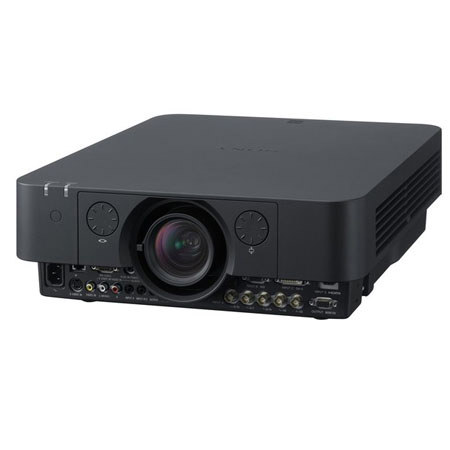

Sony VPL-FH36 5200 Lumens WUXGA Installation Projector, 2000:1 Contrast Ratio, 16:10 Aspect Ratio, 1.6x Manual Zoom Projection Lens, Black

SKU: SOVPLFH36B MFR: VPL-FH36/B
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$4,799.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the Sony VPL-FH36

The Sony VPL-FH36 5200 Lumens WUXGA Installation Projector (White) is designed to fit smoothly into almost any environment where a high-quality projector is required. Its brightness, zoom and throw range, coupled with its wide lens shift range, mean it can perform where other projectors would struggle - even in high ambient light.

Once installed, the VPL-FH36 has excellent image capabilities and a long lifespan that delivers low Total Cost of Ownership. Sony's BrightEra technology improves and maintains color purity throughout the life of the system by protecting the LCD panels against harmful ultra violet light. Clever features such as synchronized lamp and filter replacement cycles reduce costs and downtime.

Featuring the usual wide range of features, the VPL-FH36 can also edge blend (multiple projectors with seamless connection) and warping projection for retail and corporate signage applications. Other features include advanced projection capabilities such as side-by-side image projection and DICOM medical training; the VPL-FH36 is an obvious projector choice for venues that demand quality, unique installation locations and practicality.

This product comes with PrimeSupport - fast, hassle-free repairs and a helpline offering expert technical advice, giving you the peace of mind that Sony is looking after your equipment and your business.

Sony VPL-FH36 Includes

  • Sony VPL-FH36 5200 Lumens WUXGA Installation Projector
  • RM-PJ19 Remote Commander
  • AA-Type Batteries (2)
  • AC Power Cord -Cable Ties (2)
  • Sony 3 Year Warranty (Projector)
  • Sony 90 Day Warranty (Lamp)

Sony VPL-FH36 Features

  • 3 LCD XGA BrightEra Panel Technology: Sony's BrightEra Panel Technology gives more accurate color rendition, higher brightness and longer lifespan for a lower Total Cost of Ownership
  • Ultra High Resolution: The VPL-FH36's WUXGA (1920x1200) 16:10 format resolution delivers absolute best image quality
  • Very High Brightness: 5,200 Lumens Color Light Output: With very high brightness of 5,200 Lumens Color Light Output, the VPL-FH36 gives a clearer image in high ambient light, making it highly suitable for larger venues
  • Wide Zoom Range (x1.6) and Throw Ratio (1.4 to 2.3) as standard: The standard lens has a wide zoom capability and throw ratio, offering more flexibility over the positioning of the projector, which can be installed closer to or further away from the screen
  • Wide Lens Shift Range: Vertical: +60%, Horizontal: +/- 32%: The VPL-FH36's wide lens shift range means that the projector can be positioned closer to the ceiling, or horizontally offset to avoid ceiling obstacles
  • Long Lamp Replacement Time: 2,500-3,500 hours (High/Std): Longer lamp life means fewer visits by maintenance personnel and lower Total Cost of Ownership
  • Lamp/Filter Replacement Cycles Synchronized: Synchronized lamp and filter replacement effectively halves the number of visits needed to maintain the projector in peak operating condition
  • Interchangeable Lenses: Z1024, Z1032: The VPL-FH36 allows you to choose different lenses for increased flexibility
  • Edge Blend: Multiple VPL-FH36 projectors have the ability to project a single seamless image onto a screen (wall) creating an exciting visual event, or retail or corporate signage application
  • Warping Projection: Warping projection allows the customer to adjust the corners and sides of a VPL-FH36 projected image to any convex or concave screen set up or wall for dynamic signage displays
  • Side by Side Image Projection: Side by side twin image gives you the ability to project from two inputs (RGB + any other Input) at the same time, making the projector ideal for applications like video conferencing and DICOM medical training
  • DICOM GSDF Simulation: The VPL-FH36 offers DICOM GSDF Simulation (HDMI with computer signals), which conforms to GSDF (Grayscale Standard Display Function) of medical standards for DICOM (Digital Imaging and Communication in Medicine)
  • Wide Range of Image Adjustments: This wide range of image adjustments allows the projector to be installed in almost any location. Where equipment is being upgraded, installers are more likely to be able to use existing mounts
  • User Panel Alignment: Pixel alignment shifts the entire image or desired range (H: 16 X V: 10 pixels) for complete color correction
  • Color Matching: The VPL-FH36 offers brightness and color matching adjustment to the original image for complete image accuracy
  • Lower Operating Power Consumption than Previous Models: Lower operating power consumption helps reduce energy consumption and lowers running costs

Sony VPL-FH36 Specifications

Display system 3 LCD system
Size of effective display area 0.76" (19.3 mm) x 3, BrightEra
Aspect ratio 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels
Projection lens: Zoom Manual (Approx. 1.6 x)
Projection lens: Focus Manual
Projection lens: Lens shift Manual, Vertical: Upward 60% to Downward 0% Horizontal: Right 32% to Left 32%
Light source High-pressure mercury lamp, 330 W type
Recommended lamp replacement time 2500 H (Lamp mode: High)
3500 H (Lamp mode: Standard)
Filter cleaning cycle Max. 15000 H Same time as the lamp replacement is recommended
Screen size 40" to 600" (1.02 m to 15.24 m)
Light output 5200 lm (Lamp mode: High)
3900 lm (Lamp mode: Standard
Color light output 5200 lm (Lamp mode: High)
3900 lm (Lamp mode: Standard)
Contrast ratio 2000:1
Displayable scanning frequency Horizontal: 15kHz to 92 kHz
Vertical: 48Hz to 92 Hz
Display resolution: Computer signal I/P Maximum display resolution: 1920 x 1200 dots
Panel display resolution: 1920 x 1200 dots
Display resolution: Video signal I/P NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical & Horizontal: Max +/- 30%
OSD language 23-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian, Indonesian, Finnish and Hungarian)
Computer and video signal input/output-1 INPUT A:
RGB / Y PB PR input connector: 5BNC (female)
Audio input connector:
Stereo mini jack
INPUT B:
RGB input connector: Mini D-sub 15-pin (female)
Audio input connector: Stereo mini jack
INPUT C:
DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
Audio input connector: Stereo mini jack (shared with INPUT B)
INPUT D:
HDMI input connector: Digital RGB/Y PB PR
Digital Audio: PCN (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
Computer and video signal input/output-2 S VIDEO IN:
S video input connector: Mini DIN 4-pin
Audio input connector: Pin jack (x2) (shared with VIDEO IN)
VIDEO IN:
Video input connector: Pin jack
Audio input connector: Pin jack (x2) (shared with S VIDEO IN)
OUTPUT: Monitor output connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack (variable out)
Control signal input/output RS-232C connector: D-sub 9-pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC 5 V
Acoustic noise 35 dB (Lamp mode: Standard)
Operating temperature 0deg.C to 40deg.C / 32deg.F to 104deg.F
Operating humidity 35% to 85%; no condensation
Storage temperature -20deg.C to +60deg.C / -4deg.F to +140deg.F
Storage humidity 10% to 90%
Power requirements AC 100 V to 240 V, 4 A to 1.6 A, 50/60 Hz
Power consumption AC 100 V to 120 V: 460 W
AC 220 V to 240 V: 440 W
Standby mode power consumption AC 100 V to 120 V: 9.2 W (Standby mode: Standard) / 0.15 W (Standby mode: Low)
AC 220 V to 240 V: 10.4 W (Standby mode: Standard) / 0.3 W (Standby mode: Low)
Dimensions (WxHxD) 390x148x477mm / 15.35x5.82x18.77"
Without protrusions: 390x134x463mm / 15.35x5.27x18.22"
Weight 8.3kg / 18.29 lbs
