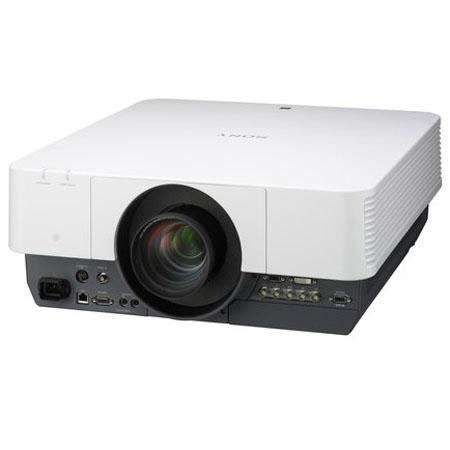

Sony VPLFH500L WUXGA 7000 Lumens Display Projector - Bundle - with VPLLZP41 Powered Zoom Lens 2.53-3.08 Throw Ratio, and PKF500LA1 Lens Adapter


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Original Price: $11,046.95 - Kit Discount: $1,547.95 = $9,499.00

Availability: Special Order Special Order - Usually ships in 3-7 days.
Your card will only be charged once item ships.

Free Shipping

See all shipping options

More Buying Options

Product Highlights

  • VPLFH500L Multimedia Projector
  • Optional Powered Zoom Lens
  • Sony VPLFH500L WUXGA 7000 Lumens Display Projector
  • Sony 3 Year USA Warranty (Projector)
  • Ideal for flexible high-performance expansion
  • Lens Installation Screws (4)
  • RM-PJ19 Remote Commander
  • AA-Type Batteries (2)
Sony VPLFH500L: Picture 1 regular $9,499.00

About Sony VPLFH500L

Save $1547.95 when you buy this Sony VPLFH500L. This Value Bundle comes with a Sony VPLFH500L, Sony Optional Powered Zoom Lens, 2.53-3.08 Throw Ratio and a Sony PKF500LA1 and Shipping is free!

The Sony VPL-FH500L's outstanding portfolio of features allows it to offer class-leading projection performance even in the most challenging of environments. Its 7,000 Lumens Color Light Output brightness, its zoom and its wide lens shift range, allow it to deliver the clearest image where other projectors would struggle - even in high ambient light. Once installed, the VPL-FH500L has excellent image capabilities and a long lifespan that delivers low Total Cost of Ownership. Sony's BrightEra technology improves and maintains color purity throughout the life of the system by protecting the LCD panels against harmful ultra violet light.

Clever features such as dual auto-switching lamps and synchronized lamp and filter replacement cycles, reduce maintenance costs and downtime. Featuring the usual wide range of inputs, an external monitor connection for the presenter's convenience and advanced projection capabilities such as side-by-side image projection and DICOM medical training, the VPL-FH500L is the projector of choice for venues that demand the highest quality in the most practical, flexible form.

Sony VPLFH500L Features

  • Adorama Valuable Bundle. Kit Includes.
  • Sony VPLFH500L WUXGA 7000 Lumens Display Projector, (Lens and Adapter Not Included), AC Power Cord, Cable Clamps (2), Lens Installation Screws (4), AA-Type Batteries (2), Lens Hole Cover, RM-PJ19 Remote Commander, Sony 3 Year USA Warranty (Projector), Sony 90 Day USA Warranty (Lamp).
  • Sony Optional Powered Zoom Lens, 2.53-3.08 Throw Ratio, Sony 1 Year USA Warranty.
  • Sony PKF500LA1 Lens Adapter for VPLL-FM21 Lens, Screws (4), Shade Sheet, Sony 90 Day USA Warranty.

Sony VPLFH500L Specifications

Projector Display System
3 LCD System - BrightEra Inorganic Panels
Display Size
0.95" (24.1mm) x 3
Native Resolution
1920 x 1200
Number of Pixels
6,912,000 (1920 x 1200 x 3) Pixels
7000 Lumens
Contrast Ratio
Aspect Ratio
Computer Input
Maximum Display Resolution: 1920 x 1200 Dots (Resizing Display) Panel Display
Resolution: 1920 x 1200 Dots
HDTV Compatibility
480/60i, 567/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p, 1080/24p, 1080/30p
Powered / Manual (Depends on lens)
Focus/Zoom Adjusting
Powered / Manual (Depends on lens)
Lens Shift
Recommended Projection Size
40 to 600" (1.02 to 15.24 m) Depending on Lens
Keystone Correction
Max. +/- 5 Degrees
Scan Frequencies
Horizontal: 14 kHz to 93 kHz
Vertical: 47 Hz to 93 Hz
Ceiling Mountable
Rear Screen Projection
Projection Tilt Option
Built-in Speaker
Input Terminals
RGB / Y PB PR Connector: 5BNC (Female)
RGB Input Connector: Mini D-Sub 15 pin (Female)
DVI-D Input Connector: DVI-D 24 pin (Single Link), supported HDCP
HDMI Input Connector: Digital RGB/Y PB PR
Optional adaptor slot: (For HD-SDI/SDI Input Adaptor "BKM-FW16")
S Video Input Connector: Mini DIN 4 pin
Video Input Connector: BNC
Output Terminals
Monitor Output Connector: Mini D-Sub 15 pin (Female)
Control Protocol
RS-232C Connector: D-Sub 15 pin (Female)
LAN Connector: RJ45, 10BASE-T/100BASE-TX Control
S Input Connector: Stereo Mini Jack, Plug in power DC5V Control S Output
Connector: Stereo Mini Jack
OSD Language
20 languages (English, Dutch, Italian, German, Spanish, Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)
Operating Temperature
32 to 104Deg.F (0 to 40Deg.C)
Storage Temp: -4 to 140Deg.F (-20 to 60Deg.C)
35 to 85% (No Condensation)
Storage Humidity: 10 to 90%
Lamp (Bulb)
High Pressure Mercury Lamp 330W
Lamp Life
Recommended Lamp Replacement:
Approx. 6000H (Lamp Mode: High)
Approx. 8000H (Lamp Mode: Standard)
Luminous Flux (Brightness)
7000 Lumens (Lamp Mode: High)
5600 Lumens (Lamp Mode: Standard)
Remote Control
Power Requirements
AC 100 to 240V, 4.9 to 2.0A, 50 / 60Hz
Power Consumption
AC100V: 490W
AC240V: 460W
Standby Mode:
AC100V: 11W (Standby Mode: Standard) 0.1W (Standby Mode: Low)
AC240V: 10W (Standby Mode: Standard) 0.2W (Standby Mode: Low)
Safety Regulations
WW Model
Heat Dispersion
AC100V: 1672 BTU
AC240V: 1569 BTU
Dimensions (W x H x D)
20.9 x 8.4 x 21.5" (530 x 213 x 545mm)
44 lb. (20kg)
