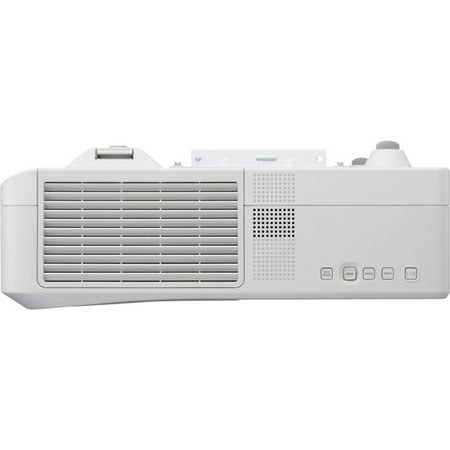

Sony VPL-SX536 3000 Lumens XGA Ultra Short Throw Projector, 2500:1 Contrast Ratio, 60-110" Screen Coverage


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

List Price: $1,690.00

Availability: In Stock & Ready to Ship

See all shipping options

Take Note

Financing Available: As low as 0% Financing for 12 months.
For more info Please email us at

Ways To Save

Sony VPL-SX536: Picture 1 regular $999.00

About Sony VPL-SX536

The Sony VPL-SX536 Projector with Mount is an ideal choice for teaching and training applications, with its 3000lumens XGA Ultra Short Throw projection. The ultra short throw projection produces an 80" diagonal wide image from only 1.9 feet away from the screen, which reduces glare from the projector even a presenter stands in front of the screen. Auto lamp dimming, max 6000h synchronized lamp and filter maintenance timing helps reduce total cost of ownership. It is further packed with diverse features to meet demanding A/V needs.

The variety of inputs allow the projector to fit a broad range of applications (inputs include; 2xRGB, HDMI, USB, Microphone inputs). High wattage 16W speaker eliminates the need for external speakers. Remote control of multiple projectors can be performed via a LAN (wired) network. Users can also project images over a wired LAN or a wireless network (an optional IFU-WLM3 wireless USB dongle is required for wireless connection). A USB Media Viewer allows users to directly project image files stored on a USB memory device.

Sony VPL-SX536 Features

  • 3000 lumens 3LCD Projector
  • Ultra Short Throw Projection (0.34-0.36:1)
  • Up to 6000 hours expected lamp life
  • Versatile inputs including HDMI, 2xRGB, Mic Input
  • RJ45 for network control and monitoring
  • USB image viewer Function
  • 1.05x Optical Zoom
  • V: +/-4%, H: +/-3% Optical Lens Shift
  • Equipped with Bright Era 3LCD Panels
  • 12 bit 3D Digital Gamma Correction
  • Auto Lamp Dimming Function
  • Eco Mode for savings on energy
  • Synchronized Lamp and Filter maintenance timing
  • Designed to blend in visually
  • Closed Captioning

Sony VPL-SX536 Specifications

Light Output /Color Light Output
3000 lumens (Lamp mode: High)
2400 lumens (Lamp mode: Standard)
2000 lumens (Lamp mode: Low)
LCD Panels
0.63"x3 BrightEra LCD Panel
Panel Display Resolution
XGA (1024x768 dots)
Contrast Ratio
2500:1 (Full white/full black)
Light Source
Ultra high-pressure mercury lamp 210 W type
Recommended Lamp Replacement Time
3000H (Lamp mode: High)
4500H (Lamp mode: Standard)
6000H (Lamp mode: Low)
Filter Cleaning Cycle
Max. 6000H
Projection Lens
Zoom / Focus: Approx. 1.05x Manual Zoom / Manual Focus
Lens Shift: Manual, Vertical +/- 4%
Horizontal + /- 3%
Throw Ratio: 0.34:1 to 0.36:1
Screen Size
60" to 110"
Input A
Mini D-sub 15-pin (RGB/Y Pb Pr)
Audio: Stereo mini jack
Input B
Mini D-sub 15-pin (RGB)
Audio: Stereo mini jack
Input C
HDMI (Digital RGB/Y Pb Pr, Digital Audio)
(HDCP support)
Video IN
Pin Jack
Audio: Pin jack (x2) (shared with S Video In)
S Video IN
Mini DIN 4-pin
Audio: Pin jack (x2) (shared with Video In)
Monitor OUT
Mini D-sub 15-pin (from INPUT A and INPUT B)
Audio OUT
Stereo mini jack (variable out)
D-sub 9-pin (male)
RJ-45, 10BASE-T/100BASE-TX
Type-A, Type-B
Microphone input
Mini jack
16Wx1 (monaural)
Scanning Frequency
H: 15 to 92 kHz, V: 48 to 92 Hz
Display Resolution
Computer Signal Input:
Maximum display resolution: 1600x1200 dots
Video Signal Input:
Video(Composite), 15k(480/60i, 575/50i), DTV (480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p)
Color System
Power Requirements
AC 100 V to 240 V, 3.1 A to 1.4 A, 50 Hz/60 Hz
Power Consumption
306 W (AC 100 V-120 V)
296 W (AC 220 V-240 V)
Standby Mode Power Consumption
5.7 W(Std) / 0.5 W (Low)(AC 100 V-120 V)
5.9 W (Std) / 0.5 W (Low) (AC 220 V-240 V)
Dimensions (WxHxD)
384.4x122.5x423.4mm / 15.13x4.81x16.65"
6.9 kg /15.2 lbs
Mfr #
