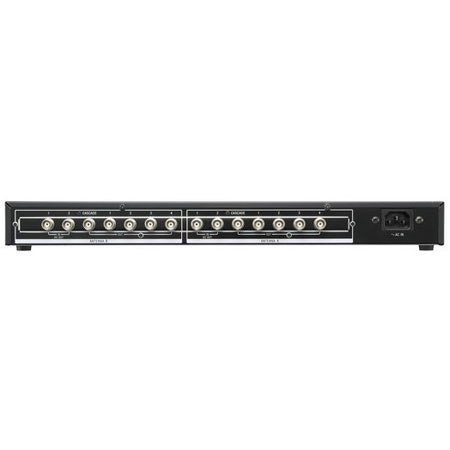

Sony WD850/9F 800 Series Antenna Divider for Compatible 800 Series Receivers, Channels 30-69 and 566-806 MHz Frequency Range

Sony
SKU: SOWD8509F MFR: WD8509F
Sony WD850/9F: Picture 1 thumbnail Sony WD850/9F: Picture 2 thumbnail
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $69.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $249.95

Our Price

$1,699.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Sony WD850/9F: Picture 1 regular $1,699.95

About Sony WD850/9F

The Sony WD-850/9F Antenna Divider provides enhanced RF reception for up to four 800 series UHF wireless microphone receivers. The WD-850/9F splits the signal from a pair of AN-820A or AN-820A/9L antennas and distributes to up to four receivers. The divider is an ideal solution for multi-system arrays that may otherwise create inter-modulation issues, excess cable bulk and minimize mounting space. The 19-inch, single rack space divider operates on channels30-69 (566 MHz - 806 MHz).

Sony WD850/9F Features

  • Provides up to 4 diversity distribution outputs, when used with a pair of antennas
  • Connection of up to 4 antennas (2 diversity pairs) to expand the operating area
  • 1 U rack mount
  • Supports UHF-TV channels 14-69, 470 MHz - 806 MHz

Sony WD850/9F Specifications

No of Channels
Four
Compatibility
800 Series Receivers
RF Input
BNC
RF Output
BNC
RF Frequency Range
566 MHz to 806 MHz, UHF-TV channels 30-69
Operating Voltage
16W
Dimensions (W x H x D)
19 x 1 x 11" (482.59 x 25.4 x 279.40mm)
Weight
10 lb 2 oz (4.53 kg)
Mfr #
WD8509F
SKU
SOWD8509F
