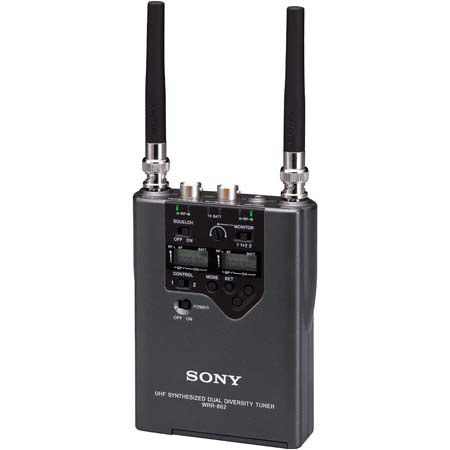

Sony WRR-862B66 Portable/Camera Mount UHF Diversity Dual Receiver (Frequency 66,67,68,69)
Mfr. Part: WRR862B6668 SKU: SOWRR862B666
enlarge image
$3,600.00 Before $750.05 Savings
|
|
 |
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order. |
|
|
Item Includes
2 BNC 1/2 Wave Antennas, Attachment Case, Camera Mounting Kit, 2 Audio Output Cables
|
Description
The WRR-862B is a two-channel (simultaneous), UHF-synthesized Dual Diversity Tuner. This affordable diversity tuner has been introduced to meet the demand for two-channel reception in ENG and EFP applications. Two space-diversity receiver modules are built in to its rugged, compact and extremely lightweight body that is made from die-cast magnesium.
This makes the WRR-862B especially suitable for mounting onto Sony professional camcorders with the supplied attachment kit/case, as well as a variety of other portable applications, including use as a redundant single channel system for "critical applications".
The WRR-862B is available on channels 14/16 (14-17), 30/32 (30-33), 62/64 (62-65) and 66/68 (66-69).
Two independent PLL synthesized diversity tuners in one compact unit. Includes built-in antenna divider. Each tuner offers 188 tunable frequencies across a 24MHz range Designed to easily mount on most Sony professional camcorders.
Includes LED A/B antenna status, battery status and AF & RF indication. LCD includes: Group, channel, frequency, squelch level, battery alarm and back-light mode. Approx. 5 hours of continuous operation (w 4 "AA" alkaline batteries). Can power from internal batteries of receive DC power directly from Sony camcorder. (with supplied cable)
Selectable between OFF, 5dBu, 10dBu & 15dBu Integrated 1/8" stereo mini-jack headphone output with variable level control, allows selection of tuner 1 only, 1 + 2 (mixed) or tuner 2 only. Provides extra dutabliity for use in extreme environments Supplied mounting hardware works with standard Sony camcorder mounting bracket (A-8278-057-A).
|
Features
 |
Two channel, Dual Diversity Tuner |
|
Wide operating frequency ranges |
|
188 PLL-synthesized channels |
|
Compact, lightweight |
|
LED and full-status LCD indication |
|
Long operating time |
|
Dual power |
|
Switchable RF squelch |
|
Headphone monitor out |
|
Rugged, die-cast magnesium, construction |
|
Can be mounted to any Sony professional camcorder |
Specifications
| Receiving frequencies | 2 channels (each selectable between 188 synthesized frequencies within a 24 MHz range). Operating within the 782-806 MHz band |
| Reception system | Space diversity, dual conversion superheterodyne |
| System Dynamic Range | >96dB (101dB typical) |
| Ref/Maximum deviation | +/- 5kHz, +/- 40kHz |
| Signal to Noise Ratio | > 60dB (65dB typical) @ ref deviation |
| Selectivity | >60dB @ +/-250kHz |
| RF squelch | Selectable: 5dBu, 10dBu, 15dBu |
| Frequency Response | 40Hz - 18kHz |
| Distortion | < 1% (max deviation @ 1kHz) |
| Output level | -58dB (@ref deviation) |
| Monitor output | 3.5mm minijack (channel 1/2/mix-selectable) |
| Power requirements | batteries: 4-"AA" alkaline batteries (230mA @DC 6V), External (via accessory cable 135mA @ DC 12V) |
| Battery life | 5 hours or more |
| Dimensions | 3/ 5/8" x 4 3/4" x 1 3/16" |
| Weight | 14.1 oz incl batteries |
| | |
|
|
|
|
|
|
|
|
|
|
