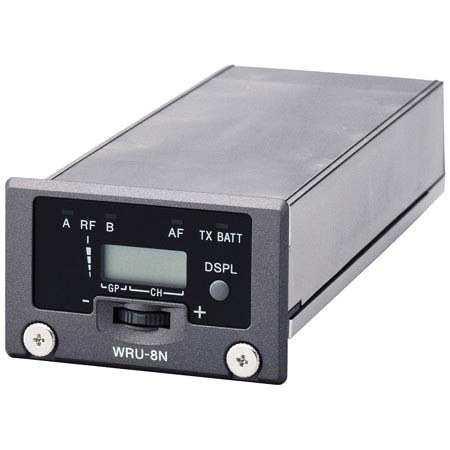

Sony WRU-8N6668 Pro Wireless Receiver Module for the MB-8N Tuner Base Unit.
Mfr. Part: WRU8N6668 SKU: SOWRU8N6668
enlarge image
$1,100.00 Before $201.00 Savings
|
|
 |
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order. |
|
|
Item Includes
Description
The WRU-8N tuner unit achieves exceptional standards of RF performance. It features space diversity reception, and a wide dynamic range with low noise and distortion.
The MB-8N tuner base and WRU-8N tuner is ideally suited for a broad range of multi channel wireless microphone applications, including broadcast, theater and live production. Up to 4 x WRU-8N tuners can be installed into the MB-8N tuner base unit.
When used in conjunction with the MB-8N tuner base, the WRU-8N supports remote operation and set-up monitoring over standard Ethernet connections. A complete system can be set up and used as a stand alone wireless microphone system, or as a remotely controlled wireless system from a PC runningthe GUI software (supplied with MB-8N).
The WRU-8N is available as two models. One model # for TV channels 62/64 (62,63,64,65), and the other model # for TV channels 66/68 (66,67,68,69).
|
Features
 |
Ideal for multi channel wireless operation |
|
Modular design, up to 4 x WRU-8N tuners can be installed into the companion MB-8N tuner base unit |
|
Includes channel search and group search functions |
|
Supports MB-8N tuner base PC control capability |
|
Up to 16-channel simultaneous operation is possible using four MB-8N's (fitted with 16 tuner modules) without an external antenna divider |
|
Up to 42-channel simultaneous operation is possible using an optional WD-880A antenna divider |
Specifications
| Receiving Channel | 1 channel |
| Receiving frequencies | 782 MHz-806MHz (TV channels 66,67,68,69). Users can choose from 188 frequencies on each model. |
| Type of reception | Space diversity |
| Circuit system | Dual conversion superheterodyne |
| Local oscillators | PLL synthesizer |
| Reference deviation | +/-5 kHz deviation at 1 kHz modulation. (Maximum deviation: +/- 40kHz at 1 kHz modulation) |
| Signal-to-noise ratio | 60 dB or more +/-250kHz |
| Selectivity | 60 dB or more +/-250kHz |
| De-emphasis | 50us |
| Power requirements | DC 5 V (supplied from MB-8N) |
| Dimensions (W x H x D) | 2 1/4" x 1 1/16" x 4 7/8" |
| Mass | 5.8 oz |
| | |
|
|
|
|
|
|
