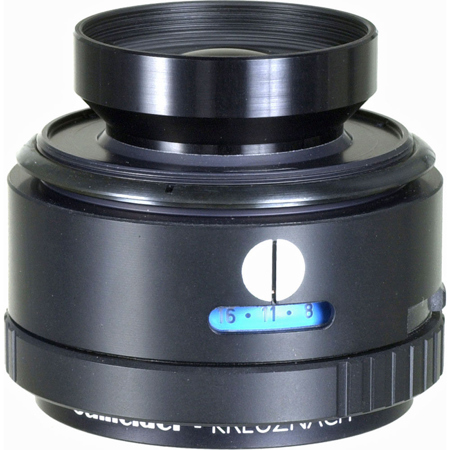

Schneider 135mm f/5.6 Componon-S Enlarging Lens - USA

Schneider
SKU: SR13556CNS MFR: 11-039569

List Price: $1,176.00

Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

18% Off

Our Price

$969.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Schneider 135mm

The Schneider Componon-S lenses are recognized industry-wide as a top-performing range of professional enlarging lenses. They are 6-element, 4-group lenses with special optical glass that are superbly corrected for a flat field, high-contrast transfer, and excellent definition over the whole field. With their high level of color correction, they are also ideal for top-quality color enlargements in enlargers using either opal lamps or cold-cathode lighting. The high performance of the Componon-S is maintained even at high magnifications and in distortion control setups.

Mechanically, the Componon-S lenses are specially matched to enlarging requirements. The aperture ring with a linear f-stop scale -- for focal lengths 135mm to 210mm with illuminated iris scale -- has click stops at full and half steps.

Componon-S lenses of 50mm to 100mm focal lengths are fitted in a barrel mount with a luminous aperture scale, click stops which can be disengaged, and a preset aperture control. With this system the iris can be opened after stopping down to the desired aperture for final cropping adjustment or fine focusing. A lever then returns the iris to the previously selected working aperture shown on the luminous scale.

The Schneider Componon-S range of top-level enlarging lenses superbly meets all optical requirements of professional enlarging.

Schneider 135mm Specifications

Elements/Groups
6/4
Recommended Film Format
9x12cm
Mount Thread size
M50.0x0.75
Aperture Range
f/5.6-45
Full/Half Click Stops
Yes/Yes
Filter Thread size
49mm
Pre-Set Aperture
Yes
Dimensions
50.5 x 59mm
Weight
150g
Mfr #
11-039569
SKU
SR13556CNS
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Sherry S  Does this lens fit the Beseler lens board?
Sherry S  does this fit on a beseler enlarger?
