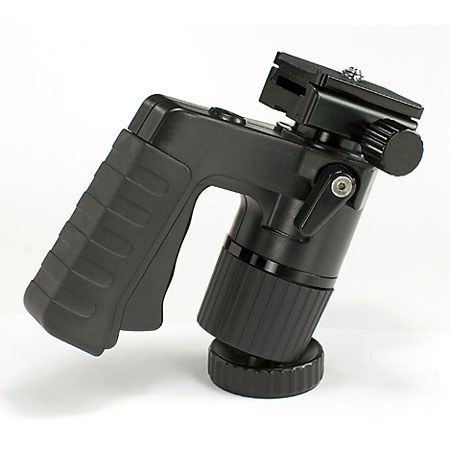

The GH-100 is a double-action pistol grip. Squeeze the handle and you can tilt the camera to any angle up to ninety degrees in any direction. Release the handle and the camera is instantly locked into position. Panning is easy. Simply release the side lock and the camera platform can pan 360 degrees left or right. The side lock can be tightened to increase tension for fluid smooth panning.
The quick release plate features a non-slip rubber insert along with spring pin and screw locks for maximum camera safety. A bubble level is built-in for perfectly level compositions. The rugged GH-100 body is crafted from high impact polycarbonate with ball head and platform assemblies made from aircraft aluminum. Replacement quick release part number is QRPGH-100 (701260).
|Max. load Capacity||5 lbs.|
|Head height||5 in.|
|Female Thread size (Connect to Tripod)||Standard 1/4-20 in. thread or 3/8-16|
|Notes||Platform Diameter: 2" x 1.5"
Bottom Diameter: 1.75 in.
Tripod Mount: 1/4-20 or 3/8-16
Tension Control: Panning motion
