Speedotron DM1604 LV - 4/CC Light System

SKU: SZ21209

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Speedotron 21209 DM1604 LV - 4/CC Light System Specifications

  • <b>D1604 LV</b>

    Power Supply Specs

  • Power (Watt Seconds)

    300-1600

  • Guide Number

    540
    at ISO 100 in feet, with M11 Light Unit, and 11.5" standard grid reflector.

  • Recycling Time

    6.0s

  • Power Range

    2

  • Flash Head Outlets

    4

  • Special Features

    9.6x6.4x8.3" 17 lbs.

  • <b>M11/CC</b>

    Light Unit Specs

  • Maximum Power (Watt/Seconds)

    1200-1600

  • Modeling Lamp Wattage

    150W Quartz

  • Fan Cooled

    Yes

  • Reflector

    interchangeable 11.5", 50° grid reflector, standard

  • Cable length

    20'

  • Dimensions

    NA

  • Weight

    NA

  • <b>MW3R</b>

    Light Unit Specs

  • Maximum Power (Watt/Seconds)

    400

  • Modeling Lamp Wattage

    60W

  • Fan Cooled

    Yes

  • Reflector

    5.5" fixed, 105°

  • Cable length

    20'

  • Dimensions

    NA

  • Weight

    NA

16 Accessories for Speedotron DM1604 LV - 4/CC Light System

  • All Accessories (16)
  • Covers & Caps (1)
  • Collapsible Reflectors (1)
  • Cables & Adapters (2)
  • Rings (1)
  • Softboxes & Accessories (1)
  • Flashes & Accessories (1)
  • Umbrellas (1)
  • Light Booms & Arms (1)
  • Reflectors (1)
  • Lamps & Bulbs (1)
  • Power Pack Strobe Accessories (1)
  • Carts & Trolleys (1)
  • Studio/Still Life & Copy Equip (2)
  • Apple Boxes (1)

About Speedotron 21209 DM1604 LV - 4/CC Light System

Whether shooting interiors on location or portraits in the studio, the D1604 LV has the power to be at the heart of a versatile lighting system. It has four quick release light unit outlets, and can recycle its 1600Ws in just 6 seconds. It has a quiet, powerful fan making it suitable for hours of continuous shooting, and a low voltage sync circuit compatible with newer electronic cameras. 9.6x6.4x8.3", 17 lbs.

The MW3R is a small, inexpensive secondary light source. It is designed to be used primarily as a hair light or background light. Its small size makes it ideal for hiding on a set. It has a fixed 5.5" reflector, 60W modeling lamp, and can handle 400Ws of power.

For photogrpahers who require absolute control and versatility in compact lighting, the M11s shine! They can handle a multitude of lighting situations, in the studio or on location. The M11 (1600Ws maximum) features a system of quick-release, bayonet mount reflectors (they utilize the same system as the Black Line Universal Light Units). Over 50 precision light control accessories are available to help you produce the exact quality of light and place it exactly where you require it. They come standard with the 11.5", 50° grid reflector.

Brown Line Light Units are engineered with the same rigorous attention to real-world functionality as our power supplies. Light units are made of metal and are convection-cooled for decades of trouble-free use. All units come cabled with a 20' locking/quick release power supply connector (which is compatible with all older Brown Line Power Supplies), come with a flash tube (in your choice of either clear or color corrected), model lamp(s), reflector and 5/8" stand mount. Speedotron Light Units are backed by a 2-year warranty, with an optional Plus-3 Protection Plan available.

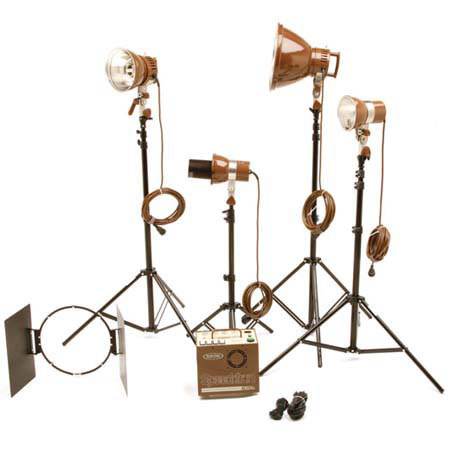

What's in the box:

  • (1) 21272
  • D1604 LV power supply, 1600Ws, (2) 22207 MW3R/CC light unit 5.5", (1) 22230 M11/CC light unit 11.5",
  • 8.5' light stands, (1) 25555
  • 3.5' back light stand, (1) 14540
  • barn doors for 11.5" reflector (2 leaf), (1) 24210
  • snoot, 3" opening for MW3R
