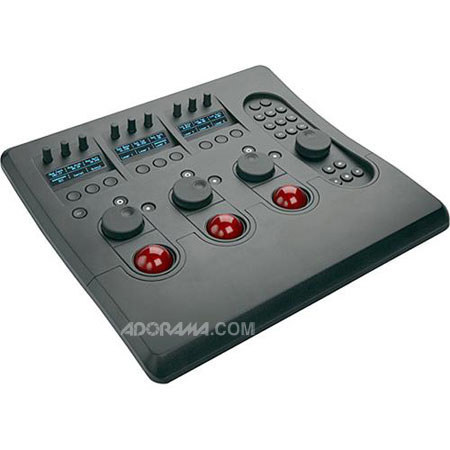

The Wave Panel from Tangent is designed to incorporate the features and functionality of Tangent's CP100 and CP200 series panels in an equally useful but more economical package. This compact unit features custom trackerballs that use non-contacting optical pickups and easy-to-read cool-blue OLED displays. Numerous control interfaces include control knobs, label buttons, function buttons, master dials and transport controls.
|Connection||Fullspeed USB 2.0.|
|Host Operating System||Mac OS X or later.
Windows XP or later.
|Displays||3 x cool-blue OLED displays.
Each display is 5 lines high and 32 characters wide.
For soft labeling the controls and providing feedback.
|Soft Label Parameter Control Knobs||9 x continuous rotation encoders with integral push button for reset.|
|Soft Label Buttons||9 x buttons.|
|Function Buttons||9 x Function buttons labeled F1 to F9.
For fast access to frequently used functions.
|Master Dials||3 x continuous rotation encoders.
For Master lift, gamma and gain controls.
|Trackerballs||3 x non contacting optical pickup trackerballs.
For differential lift, gamma and gain controls.
|Transport Controls||1 x continuous rotation encoder.
For jog/shuttle functions.
5 x buttons labeled with typical transport functions.
|Power||500mA max (via USB).|
