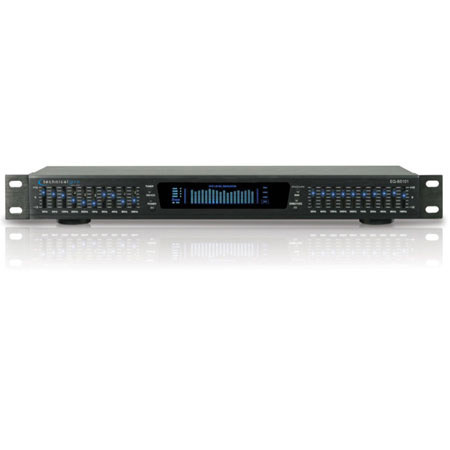

The Technical Pro EQ5101 Professional Dual 10 Band Equalizer helps finding the right sound or that "Sweet Spot" were a professional EQ will come into play. No matter where you are or what room you may be in, the frequencies of music will vary depending on the architecture of the room set up. Connect up to four audio sources utilizing the industry standard RCA connections on the back panel. Easily integrated into a standard rack using the removable rack-mount brackets the EQ5101 can be set up virtually anywhere in your rig.
Each channel hosts a 10 band graphic equalizer with individual LED indicators. Easily adjust your frequencies while feeling the solid motion and quality design of the controls and watching the digital display change from your adjustments.
|Equalizations Points||32Hz, 64Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16kHz|
|Direct / equalizer function||Yes|
|Inputs||RCA (4 audio sources)|
|Outputs||RCA (2 lines)|
|Tone control (at 10kHz)||±14dB|
|Circuit Type||Low distortion dynamic circuit|
|Dimensions (W x H x D)||Without Bracket: 17'' x 2.5'' x 10'' / 43.18 x 6.35 x 25.4 cm
With Bracket: 19'' x 2.5'' x 10'' / 48.26 x 6.35 x 25.4 cm
|Weight||6 lbs (2.7 kg)|
