Thecus N12000PRO 2U Rackmount 12-Bay NAS Server, Intel Xeon E3-1275 3.4GHz, 8GB DDR3, 12xSATA Internal/1xeSATA External


Final Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Regular Price: $3,599.00 - Instant Rebate: $50.00 = $3,549.00

Availability: Temporarily On Backorder Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Product Highlights

  • High Availability (System Redundancy)
  • 10GbE Ready
  • Link aggregation in case of links fails
  • Local and remote parts
  • Data backed up across RAID volumes external USB drives and eSATA
  • Innovative technology to sync data across the network to other NAS and servers
  • Burn data directly to CD, DVD and Blu-ray discs
  • Antivirus

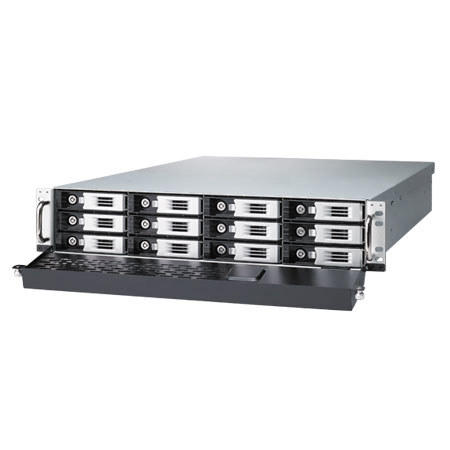

Thecus N12000PRO: Picture 1 regular $3,549.00

About Thecus N12000PRO

Get this Thecus N12000PRO, normally $3,599.00, on sale at $3,549.00 for a total savings of $50.00 and Shipping is free!

Thecus N12000PRO 2U Rackmount 12-Bay NAS Server is equipped with the Xeon E3-1275 processor that runs at 3.4 GHz. The quad-core processor is matched by 8GB of DDR3 RAM on both devices to make sure that the biggest commands fly through without a hitch. And to make sure the full power of the processors is used, a 10GbE network card can be added to the available PCI-e slot and link aggregation can be used to make sure your network doesn't slow you down. Brought on by the ThecusOS 5.0, users can now dynamically stack their NAS units for more capacities in a single volume; simply designate your N12000PRO as a stack master and implement a 10GbE switch to connect additional target devices. Scalability is the key notion when it boils down to volume expansion. In fact, an amazing eight target devices can be intertwined for a massive volume of multi TB capacity when utilizing 10GbE switch.

Daisy-chaining is the most innovative function to expand storage volume while keeping cost down. Up to four D16000 DAS can be added to your N16000PRO and N12000PRO for an additional 64 bays of storage. As a result, IT enterprises or consumers who utilize large amounts of storage can obtain massive expansion and save cost. Another perk about daisy-chaining is that transfer speeds are fast! Thanks to the SAS cables that are put-to-use to daisy-chain the DAS to the NAS. If paired with volume expansion, daisy-chain can help large businesses expand their storage capacity to up to 2.5 PB!

The Thecus N12000PRO run on ThecusOSTM 5.0 which supports one of the most important features within the storage industry, High Availability (HA). In short, HA allows users to replicate the data on an active NAS to another standby NAS via 10GbE synchronization. Also supported by the N12000PRO is the total backup solution, Data Guard. This backup solution is the ultimate feature as it provides both local and remote backup under one roof. Currently, data is backed up across RAID volumes, external USB drives and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS, take advantage of real-time remote replication to keep your data safe. More importantly, Thecus Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.

The Thecus N12000PRO is designed to meet the needs of large businesses with large amount of data and who expect professional performance out of their NAS. With unified storage, the users will have the ability to plug their NAS to an iSCSI network and at the same time, use your Thecus NAS as an IP Storage pool for both protocols. This way, the NAS can be compatible with any existing or future architecture. Now with faster processors, the N12000PRO will deliver quicker response time and handle multitasking with even better ease than before.

Thecus N12000PRO Features

  • High Availability (System Redundancy): For the first time, your data is completely free of delays in access. Regardless of the situation, HA actively keeps your data on two separate, identical NAS
  • 10GbE Ready: High-end data centers often need a level of speed that today's average Internet cannot provide. This Thecus NAS is 10Gb Ethernet ready to satisfy the toughest needs of today and tomorrow
  • Link Aggregation: Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB and Balance-ALB, Broadcast
  • Data Guard: Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers
  • Data Burn: NAS data can now be burned directly to CD, DVD and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported
  • Antivirus: Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats
  • Cloud Backup: The private and public clouds meet with Thecus' new DropBox, Amazon S3 and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud
  • HDMI Output: Make your NAS into the ultimate multimedia hub! The N12000PRO's HDMI output allows you to connect your NAS directly to your TV for device management
  • USB 3.0 Connectivity: The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s
  • Acronis True Image: Thecus brings the best to the table with Acronis's advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files
  • Multiple RAID: When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50, 60 and JBOD for your own balance of performance and data protection
  • Multiple File Systems: Support for multiple file systems including EXT3, EXT4 and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one
  • iSCSI Thin-Provisioning: Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality
  • iOS/Android Connectivity: In the modern world, nothing is as important as reaching your data from anywhere. With ThecusShare and the Thecus Dashboard, you can manage your NAS and upload to and download/stream from your NAS using an iOS or Android device on the go
  • Rsync: Backing up your data is very necessary and everyone has specific needs when it comes to storage. Thecus's Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler and the stability of Linux-based transfer
  • User Quota: Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, user quotas make it easy to divvy up and manage disk space
  • PCI-e slot: Thecus NAS products are ready for a number of emerging technologies. Through the built in PCI-e slot, business users can add a 10G Ethernet Adaptor for lighting fast transfer speeds, or a USB 3.0 Adaptor Card to enjoy next-generation connectivity

Thecus N12000PRO Specifications

Intel Xeon E3-1275 3.4GHz
System Memory
LAN Interface (PCI-e)
RJ-45x3: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB Interface
USB 2.0 host port x6 (front x2, back x4) (Type A)
USB 3.0 host port x2 (back x2)
Displays system status and information (Multilingual)
SAS/SATA controller (HBA) PCI-e (8-lane)
LSI 2008 HBA card supports 6G SAS/SATA (x8)
HDMI Output
HDMI port (back x1)
MIC input, Line input, Audio output
Disk Interface
12 x SATA for internal
1 x eSATA for external
Power Supply
Redundant power supply 700W or more (80plus)
PCI-e Slots
8-lane (x3), One is used by SAS HBA
4-lane (x1)
1-lane (x1) used by CU30N (USB 3.0)
System Fan
Hot swappable (x4)
Power button (Front, shutdown controlled by user interface)
LCM button (ENT, ESC, UP, DOWN)
System reset button
Locator button
1 (For UPS)
RAID Modes
RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
RAID Auto-rebuild
RAID Hot-swap
RAID Dedicated Hot Spare
RAID Global Hot Spare
RAID Level Migration
RAID Level Expansion
RAID Volume Encryption
Power Management
Available spin-down on idle setting
Bad Block Scanning
Disk Roaming
Supports volume-based roaming to other Thecus NAS
Fixed IP address, dynamic IP address
Transport Protocols
File Protocols
Link Aggregation
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
UPnP Port forwarding
System Monitor
Monitoring CPU, memory, temperature, fan, network utilization and protocols access user count
Syslog Management
Send syslog to assigned location
Act as syslog server to receive log info from other systems
Client OS Support
Windows XP and after
Mac OS X
Built-in FTP server with bandwidth control
Secure FTP
Built-in secure FTP server with bandwidth control
Download Manager
BT download (via Transmission module)
NZB download (via NZB module)
Printer Server (IPP)
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface
Client Incremental Data Backup
Acronis True Image (OEM version)
Client System Disaster Recovery
Acronis True Image (OEM version)
Client Side Backup Software
Thecus Backup Utility (Windows/Mac OS X)
Data Burn
Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS
Mac OS X Time Machine
Data Guard
Remote Backup/Local Backup
iSCSI Target/Initiator
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning
SCSI3 Persistent Group Reservation
Scheduled Power On/Off
Multiple RAID
Multiple File System Selectable
iTunes Server
Supports AAC, MP3 w/ID3 tag and WAV
Piczza! Photo Server (via module)
Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows
Media Server
Supports uPnP AV streaming protocol (via Twonkymedia module)
User Authentication: Local User
Supports built-in user accounts
User Authentication: Local Group
Supports built-in user groups
User Authentication: Windows ADS
User Authentication: LDAP
User Authentication: Access Guard
Supports Black & White list/IP Filter
Cloud Backup: DropBox
Supported (via module)
Cloud Backup: ElephantDriver
Supported (via module)
Cloud Backup: Amazon S3
File System: Type
Journaling File System
File System: Language Support
Unicode Support
File System: Authorization (ACL)
"Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders
File System: User Quota
User Interface
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Portuguese, Turkish and Czech.
Utility Program
MS Windows Setup Wizard
Supports Windows XP and after
Mac OS X Setup Wizard
Email Notifications
Sends system messages via email to the system administrator
System information trap out
Thecus Dashboard
Mobile monitoring and administration (via module)
T-OnTheGo (iOS)
Upload, download and stream multimedia
Virus Scan
Supports McAfee (via module)
Can extend for 5 additional iSCSI volumes from other Thecus NAS
Volume Expansion
Support dynamic Volume expansion via 10G interface
JBOD Expansion
Support Capacity expansion via Thecus D16000 JBOD device
High Availability
Support system level redundancy
Dual DOM
Recycle Bin
Web Disk
Supported (via module)
Web Server
Supported (via module)
ISO Mount
IP Cam Surveillance
Supports up to 10 IP cameras (via module)
Auto Module Installation
Thecus' module server automatically provides the latest modules and updates through the user interface.
Local Display
X-Window via HDMI output
Temperature: 5deg.C to 40deg.C
Humidity: 0 - 80 % R.H. (Non-condensing)
2U Rack mount
Dimensions (HxWxD)
89x440x662mm / 3.5x17.32x26.06"
Mfr #
