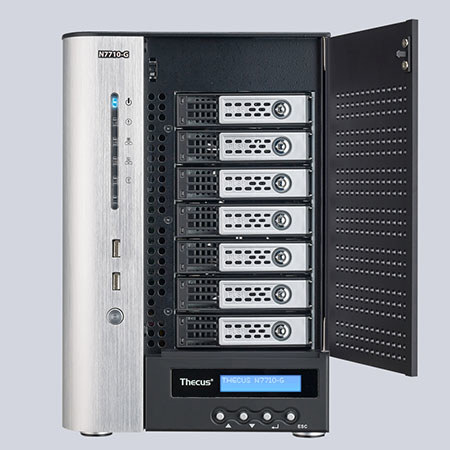

Thecus N7710-G 7-Bay Tower NAS Server for SMB, RAID 0/1/5/6/10/50/JBOD, Intel Pentium G850 Dual Core 2.9GHz, 4GB DDR3 ECC RAM, 7x SATA, HDMI Output

SKU: THN7710G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Thecus N7710-G Specifications

  • Processor

    Intel Pentium G850 (2.9GHz Dual Core)

  • System Memory

    4GB DDR3 ECC Memory

  • LAN Interface (PCI-e)

    RJ-45x2: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X,WOL supported
    Supports 1 x Single-Port 10GBASE-T Ethernet Network Card

  • USB Interface

    USB 2.0 host port x6 (front x2, back x4)
    USB 3.0 host port x2 (back x2)

  • 10GbE NIC

    (Included x1)

  • LCM Module

    Displays system status and information

  • HDMI Output

    HDMI port (back x1)

  • VGA Output

    VGA port (back x1)

  • Disk Interface

    7 x SATA for internal

  • Power Supply

    300W Power Supply

  • Bundled 10GbE Network Card

    1 x C10GTR Installed

  • Thermal/Fan Control

    Thermal sensor on processor temperature

  • System Clock

    Battery-backed up system clock

  • Power Management

    Auto power on after shutdown due to power loss

  • Buzzer

    Adjustable frequency alarm

  • Buttons

    Power button
    LCM button (ENT, ESC, UP, DOWN)

  • Environment

    Temperature: 5 deg.C to 40 deg.C
    Humidity: 0-80 % R.H. (Non-condensing)

  • Chassis

    Tower base

  • Certificates

    CE/FCC/C-Tick/VCCI/BSMI
    RoHS
    WEEE
    VMware

  • RAID: Modes

    RAID 0, 1, 5, 6, 10, 50 and JBOD

  • RAID: Auto-rebuild

    Supported

  • RAID: Hot-swap

    Supported

  • RAID: Hot Spare

    Supported

  • RAID: Level Migration

    Supported

  • RAID: Expansion

    Supported

  • RAID: Volume Encryption

    AES256bit

  • Disk: Power Management

    Available spin-down while idle setting

  • Disk: Bad Block Scanning

    Supported

  • Disk: SMART Info

    Supported

  • Disk: SMART Test

    Supported

  • Disk: Roaming

    Supports volume-based roaming to other Thecus NAS (Require ThecusOS 5 64 bit )

  • Network: Configuration

    Fixed IP address, dynamic IP address

  • Network: Transport Protocols

    TCP/IP/AppleTalk

  • Network: File Protocols

    SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP

  • Network: Link Aggregation

    Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast

  • Network: TCP/IP

    IPV6 & IPV4

  • Network: DDNS

    Supported

  • Network: SSH

    Supported

  • Network: UPnP

    Supported

  • Network: UPnP Port forwarding

    Supported

  • System Monitor

    Monitoring CPU, memory, network utilization and protocols access user count

  • Syslog Management

    Send syslog to assigned location
    Act as syslog server to receive log info from other systems

  • Data Access: Client OS Support

    Windows XP and after
    Windows Server 2003 and after
    UNIX/Linux
    Mac OS X

  • Data Access: FTP

    Built-in FTP server with bandwidth control

  • Data Access: Secure FTP

    Built-in secure FTP server with bandwidth control

  • Data Access: TFTP

    Users can download and upload files with TFTP programs

  • Data Access: Download Manager

    BitTorrent downloads (via Transmission Module)
    NZB download (via NZB module)

  • Data Access: Printer Server (IPP)

    Supports USB printers
    Supports a wide range of IPP printers
    Client can manage print tasks (list/delete) via web user interface

  • Data Backup: Client Incremental

    Acronis True image (OEM version)

  • Data Backup: System Disaster Recovery

    Acronis True image (OEM version)

  • Data Backup: Client Side Backup Software

    Thecus Backup Utility (Windows/Mac OS X)
    Create files to ISO image and burn to optical disc
    Create files to ISO image
    Read ISO image from optical disc and write to NAS

  • Data Backup: Mac OS X Time Machine

    Supported

  • Data Backup: Data Guard

    Remote Backup/Local Backup

  • iSCSI Target/Initiator

    Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets

  • iSCSI Thin Provisioning

    Supported

  • MPIO

    Supported

  • MCS

    Supported

  • Clustering

    Supported

  • SCSI3 Persistent Group Reservation

    Supported

  • Scheduled Power On/Off

    Supported

  • Volume Management: Multiple RAID

    Supported

  • Volume Management: Multiple File System

    EXT3/EXT4/XFS

  • Multimedia Support: iTunes Server

    Supports AAC, MP3 with ID3 tag and WAV

  • Multimedia Support: Piczza Photo Server

    Supports GIF, JPG (JPEG), BMP, PNG
    Support EXIF display
    Support slide show

  • Multimedia Support: Media Server

    Support uPnP AV streaming protocol (via Module)

  • User Authentication: Local User

    Supports built-in user accounts

  • User Authentication: Local Group

    Supports built-in user groups

  • User Authentication: Windows ADS

    Supported

  • User Authentication: LDAP

    Supported

  • User Authentication: Access Guard

    Supports Black & White list/IP Filter

  • Cloud Backup: DropBox

    Supported (via module)

  • Cloud Backup: ElephantDriver

    Supported (via module)

  • Cloud Backup: Amazon S3

    Supported

  • File System: Type

    Journaling File System

  • File System: Language Support

    Unicode Support

  • File System: Authorization (ACL)

    "Read", "write", or "deny" privileges to individual users or groups in folders and sub-folders

  • File System: User Quota

    Supported

  • Administration: User Interface

    Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese

  • Administration: Utility Program

    MS Windows Setup Wizard
    Supports Windows XP and after
    Mac OS X Setup Wizard

  • Administration: Email Notifications

    Sends system messages via email to the system administrator

  • Administration: SNMP Trap

    System information trap out

  • Mobile Applications: T-Dashboard

    Mobile monitoring and administration (via module)

  • Mobile Applications: T-OnTheGo

    Upload, download and stream multimedia

  • Data Security: Virus Scan

    Supports McAfee (via module)

  • Capacity Expansion: Stackable

    Can extend for 5 additional iSCSI volumes from other Thecus NAS

  • Recycle Bin

    Supported

  • Web Disk

    Supported (via module)

  • Web Server

    Supported (via module)

  • ISO Mount

    Supported

  • IP Cam Surveillance

    Supports up to 10 IP cameras (via module)

  • Auto Module Installation

    Thecus's module server automatically provides the latest modules and updates through the user interface.

  • Local Display

    X-Window via HDMI output

  • Dimensions (H x W x D)

    12.6 x 8.27 x 10.63" / 320 x 210 x 270mm

  • Weight

    18.52lbs / 8.4kg

  • UPC Code

    884956001683

About Thecus N7710-G

The Thecus N7710-G 7-Bay Tower NAS Server is equipped with Intel Pentium G850 Dual Core CPU and 10GbE technology. Along with a 75% faster (yet cooler running) processor, newly incorporated multimedia ports (HDMI and VGA) and the inclusion of USB 3.0 ports, the new N7710-G also brings the wealth of the Thecus App Center to SMB businesses. With their power and connectivity, it allows many users to enjoy the endless features of the growing list of over 90 official and third-party applications.

10GbE Included
High-end data centers often need a level of speed that today's average network cannot provide. The 10GbE solution offered by the N7710-G models makes them ready for the next step in network evolution straight out of the box.

AES 256-bit RAID Volume Encryption
Thesis's AES 256-bit RAID volume encryption tool allows users to fully encrypt their entire RAID volume, defending essential data even in instances of theft.

Data Guard
Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.

Data Burn
NAS data can now be burned directly to CD, DVD and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you're managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.

Link Aggregation
Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB and Balance-ALB, Broadcast.

Antivirus
Thecus' innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the world's largest dedicated security technology company and shares Thecus' spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfee's powerful software on their NAS entirely for free.

Cloud Backup
The private and public clouds meet with Thecus' new Drop Box, Amazon S3 and Elephant Drive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with Drop Box, Amazon S3 or Elephant Drive.

HDMI Output
Make your NAS into the ultimate multimedia hub! The N7710-G's HDMI output allows you to connect your NAS directly to your TV for device management.

USB 3.0 Connectivity
The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.

Acronis True Image
Thecus brings the best to the table with Acronis's advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design and comprehensive features to keep your data safe.

Multiple RAID
When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare and auto rebuild.

Multiple File Systems
Support for multiple file systems including EXT3, EXT4 and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the better of each one.

iSCSI Thin-Provisioning
Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning flexible storage functionality.

iOS/Android Connectivity
In the modern world, nothing is as important as reaching your data from anywhere. With T-OnTheGo and the T-Dashboard, you can manage your NAS and upload to and download/stream from your NAS using an iOS or Android device on the go.

Rsync
Backing up your data is very necessary and everyone has specific needs when it comes to storage. Thecus's Rsync functionality gives users great flexibility with remote backup capability, a flexible schedule and the stability of Linux-based transfer.

User Quota
Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.

What's in the box:

  • Thecus N7710-G 7-Bay Tower NAS Server for SMB
  • Accessory Bag(with key)
  • Ethernet Cable
  • Power Cord
  • Acronis True Image DVD
  • Universal CD
  • Quick Installation Guide
  • HDD Compatibility List Card
  • Thecus 2 Year Warranty
