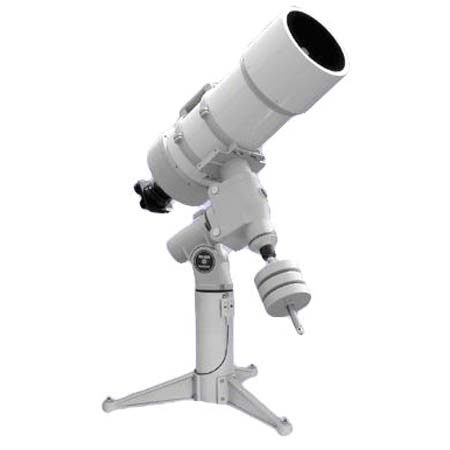

Takahashi FRC-300, 11.8" Baker Ritchey-Chretien Flat Field, 90mm CCD / Photo Astrographic Telescope.
See all Takahashi items

Takahashi FRC-300, 11.8" Baker Ritchey-Chretien Flat Field, 90mm CCD / Photo Astrographic Telescope.

SKU: TKTRC0300

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Specification about this item

  • Item #

    Takahashi FRC-300

  • Native Resolution

  • Horizontal Resolution

  • Supported Resolutions

  • Video Compatibility

  • Inputs

  • Brightness (ANSI Lumens)

  • Canon Exclusive

  • Zoom

  • Projection Lens

  • Screen Size

  • Contrast Ratio

  • Lamp

  • Digital Keystone

  • Uniformity

  • Wireless Remote

  • RS-232

  • Memory Card Support

  • Audio Speaker

  • Regional Power Voltage

  • Weight

  • Dimension (WxHxD)

  • Warranty

  • Other Note

  • sssss

  • Optical System

    Corrected Flat-field Ritchey-Chretien

  • Coating

  • Aperture

  • Effective Aperature

  • Uses

    CCD or medium format astrophotography

  • Diameter

    Ø 300mm

  • Secondary

    Ø 125mm

  • Corrector Assembly

  • Focal Length

    2348mm [effective]
    With Reducer: 1770mm

  • Focal Length w/ flattener

  • Focal Ratio

    f/7.8
    (with reducer) f/5.9

  • Focal Ratio w/ flattener

  • Light Grasp

  • Resolution

  • Limiting Magnitude

  • Image Circle

    Ø 90mm
    Image Circle (with optional Reducer) Ø36mm

  • Stellar Images

  • Photo Field

  • Reducer

  • Tube Diameter

    Ø324mm [12.76in.]

  • Diameter of Main Tube

  • Tube Length

    1030mm [40.55in.]

  • Total Length of Main Tube

  • Total weight of Main Tube

  • Finder Scope

    7x50 6.3°

  • Backfocus from end of OTA

  • Diameter of dew shield

  • Dew shield

  • Main Tube Material

  • Film Formats Usable

  • Note

About Takahashi TRC0300

• The FRC-300 is a flat field Ritchey-Chretien produced by Takahashi.
• This flat field astrograph is designed to produce a flat 90 Ø image circle for medium format photography or CCD imagery.
• This image circle can be used with the largest available CCD cameras for many years to come. The f/7.8 focal ratio enables the imager to produce images of smaller objects with amazing sharpness and contrast.
• The pin-point stars 10 microns at the edge and 2348mm focal length, produce a field free of astigmatism or coma, which will allow the FRC to resolve star clusters and fine detail in galaxies and nebulae across the entire 90mm Ø circle.
• The temperature compensated secondary holder insures pinpoint stars during long exposures. The optional dedicated f/5.9 reducer produces a 36mm Ø flat circle for CCD imaging at this shorter focal length.
