Takahashi

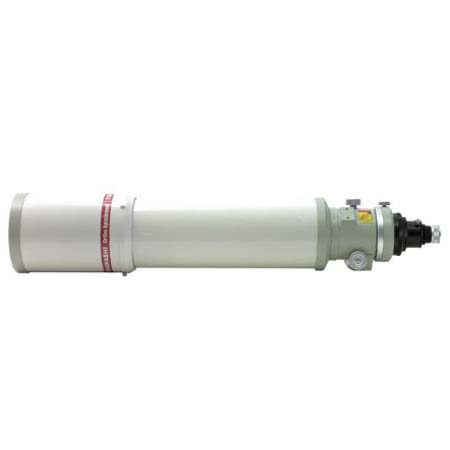

Takahashi TOA-130F Kit, 5.1", 1000mm f/7.7 Ortho MC APO Triplet Refractor Telescope Optical Tube with Lens Shade, & 4.0" Focuser
Mfr. Part: TSA0131 SKU: TKTSA0131
enlarge image
|
|
 |
|
|
|
TOA-130F Refractor Telescope Optical Tube with built-in Retractable Lens Shade - 4" Focuser - Camera Angle Adjuster - Scopeguard Finder Quick Release Bracket
|
The Takahashi refractor, the triplet TOA-130, is the first of the Ortho-Apochromat Series. This 21st century innovation employs a newly designed triplet using special elements to produce the highest order of color correction, hence the name Ortho-Apochromat and is packaged in a short 32 tube with the lens shade retracted.
This instrument is offered with the classic 2.7 focuser (Model # TOA-130S) . For those wanting to use a medium format camera, Takahashi offers a deluxe 4 focuser (Model # TOA-130N) with built in camera angle adjuster.
This focuser, coupled with the (optional) dedicated flattener, will produce a fully illuminated 70mm circle with a usable 92mm diameter.
The high order of color correction of the Ortho-Apochromat Series produces images with saturated color and thanks to the numerous knife-edged baffles, an image with amazing contrast.
The TOA-130 is perfect for visual, CCD and photo imaging. The f/7.7 focal ratio with a 1000mm focal length is long enough, using the LE-ED 2.8mm Takahashi ocular, (not included) for high magnification observations of the Moon and planets and yet will produce a 2.5° field at 20x when used with the Takahashi flat field LE-50 2 ocular (not included) .
Ample back focus, over 200mm from the rear cell, has been designed in to permit the user to use a variety of CCD cameras, color filter wheels and electronic focusers or film cameras.
|
| Item # | Takahashi TOA-130F |
| Aperture | 130mm |
| Focal Length | 1000mm / 754mm with optional Reducer |
| Focal Length w/ flattener | 999mm |
| Focal Ratio | F/7.7 / F/5.8 with optional Reducer |
| Focal Ratio w/ flattener | F/7.68 |
| Image Circle | Ø92mm |
| Photo Field | 5.3° / 3.8 |
| Tube Diameter | 155mm / 179 mm w/ dew shield |
| Tube Length | 812mm w/ adapters removed |
| Weight | Tube Weight: 10kg (22lbs) |
| Finder Scope | Optional: 7x50 6.3° |
| Backfocus from end of OTA | 256mm + |
| Diameter of dew shield | 179mm |
| Dew shield | Retractable |
| Note | Specs for the TOA-130S Tube Assembly Only |
| | |
|
|
|
|
|
|
|
|
