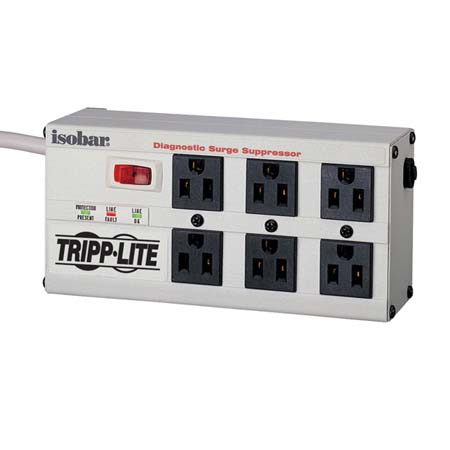

Tripp Lite Isobar 2350 Joules Surge Suppressor for Premium Surge, Spike & Line Noise Protection, 6 Outlets

See all Tripp Lite items
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Top Rated Gear

Our Price

$80.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Tripp Lite

The Tripp Lite Isobar Surge Suppressor is loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test surges to harmless levels under 35 volts.

Isobar's unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by other pieces of connected equipment.

ISOBAR6ULTRA offers 6 outlets arranged in three filter banks to prevent system crashes, reboots and performance problems common as noisy system peripherals are powered off and on.

Surge suppression rated at 2350 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status.

Tripp Lite Features

  • All metal housing with LEDs
  • Isolated filter banks
  • Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B specifications and reducing 6,000V test surges to harmless levels less than 35 volts.
  • Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment.
  • 6 outlets arranged in three filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are powered off and on.
  • Network grade surge suppression rated at 2350 joules/97,000 amps
  • Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
  • 3 LED indicators confirm suppressor operation and site wiring status, plus warning of suppressor or electrical fault conditions
  • Lighted power switch confirms power on/off status
  • 6 foot AC line cord with space-saving angled input plug6 foot AC line cord with space-saving angled input plug
  • Keyhole mounting tabs allow permanent installation
  • Set of 4 outlet covers safely seal off unused outlets
  • 120VAC, 50/60Hz electrical compatibility

Tripp Lite Specifications

Voltage compatibility
120 VAC
Frequency compatibility
50/60 Hz
Output volt amp capacity (amps)
12
Output watts
1440
Outlet quantity / type
6 NEMA 5-15R
Transformer accommodation
Supports up to 4 large transformer plug accessories without covering remaining outlets
Input connection type
NEMA 5-15P input plug
Input cord length (ft.)
6 ft.
Input cord length (m)
1.8
Recommended electrical service
120V,15A
Diagnostic LEDs
Protection Present (green), Line fault (red) and Link OK (green)
Switches
Two position red illuminated on/off power switch
Protection modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule rating
2350 joules
Clamping voltage (RMS)
140V
AC suppression response time
NM = 0 ns. CM = <1 ns
AC suppression surge current rating
97,000 amps (36,000 NM / 61,000 CM)
AC suppression components used
Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe thermal fusing
Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through rating
330V - UL Verified
IEEE587 Cat. A ringwave let through
Less than 35 volts
EMI / RFI filtering
40-80 dB
Isolated filter banks
Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 3 filter banks.
Immunity
Conforms to IEE 587 / ANSI C62.41
Material of construction
Metal
Integrated keyhole mounting tabs
Metal end caps are fitted with keyhole mounting tabs for wallmount installation
Receptacle Color
Black
AC line cord color
Gray
UL1449 1998 Rev. (AC Suppression)
UL1449
UL1283 (EMI Filter)
UL1283
UL1363 (Power Tap)
UL1363
cUL / CSA (Canada)
cUL
Approvals
Exceeds IEEE 587 category A&B specifications
Appearance
Rugged all-metal corded strip format with high quality duplex receptacles
Dimensions
2.5 x 7 x 3.5 (HxWxD/in)
Warranty
Tripp Lite lifetime warranty
Mfr #
ISOBAR6ULTRA
SKU
TLISOBAR6ULT
