TVLogic

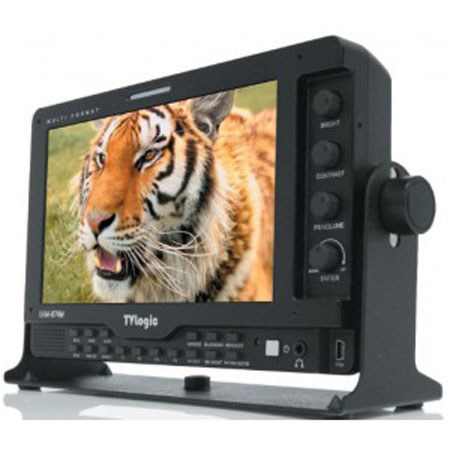

TVLogic LVM-074W 7" Multi-Format HD LCD Monitor, 1024x600(16:9) Resolution, 800: 1 Contrast Ratio, 400 cd/m2;(Center) Luminance

SKU: TLLVM074W MFR: LVM-074W
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,695.00 List Price

Our Price

$2,506.35 $98 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

About the TVLogic LVM-074W

TVLogic LVM-074W 7" Multi-Format HD LCD Monitor features waveform/vectorscope, built-in HDMI to HD-SDI conversion output, horizontal and Vertical Image Flip, Focus Assist and Audio Level Meter. The user selectable Temperature Adaptive Color function measures LCD panel temperature and automatically compensates the white balance drift caused by a cold or hot weather.

TVLogic LVM-074W Includes

  • TVLogic LVM-074W 7" Multi-Format HD LCD Monitor
  • AC Power Cord
  • DC Power Adaptor
  • Camera Mount Support
  • TVLogic 2 Years Parts and Labor Warranty

TVLogic LVM-074W Features

  • 7" 1024 x 600 (16:9) Resolution
  • White LED Backlight
  • Matte Finish Panel
  • Horizontal & Vertical Image Flip
  • Hard-Coated Acrylic Filter
  • Max Brightness On/Off
  • Supports TV Logic Color Calibration Utility for Proper Color Alignment
  • Waveform/Vectorscope (Y/Cb/Cr, Wide Type, Line Waveform, Full Size)
  • GPI(RJ45)
  • Timecode Display
  • Range Error
  • Marker
  • User Aspect
  • Blue Only/Mono
  • H/V Delay
  • Focus Assist
  • H/V Flip
  • Luma(Y') Zone Check
  • 3G-SDI Level A/B
  • UMD Support (ANC, Manual, Dynamic and User)
  • Closed Caption: CEA-608/708 (SDI)
  • Monitor Control Using RS422
  • Magnesium Housing, Light Weight
  • External Tally (Option)

TVLogic LVM-074W Specifications

LCD: Size 7"
LCD: Resolution 1024 x 600(16:9)
LCD: Pixel Pitch 0.15 mm
LCD: Color Depth 16.7M (True 8bit)
LCD: Viewing Angle (Typ.) 170 deg.(H)/170 deg.(V)
LCD: Luminance (Max.) 400cd/m2 (Center)
LCD: Contrast Ratio 800:1
LCD: Display Area 154(H) x 90(V)mm
Input: 1 X HDMI HDMI Inputs
Input: 3 X RCA Analog Video Inputs
Input: 2 X BNC SDI2 Channel Inputs
Output: 1 X BNC SDI Channel Output (Active Loop Through)
Output: 1 X HDMI HDMI - HDMI, HDMI - SDI (Conversion)
Input Signal: Analog CVBS / S-Video / Component Video / RGB
Input Signal: 3G-SDI 2.97 Gbps
Input Signal: HD-SDI 1.485 Gbps
Input Signal: SD-SDI 270 Mbps
Input Signal: HDMI 480i/480p/720p/1080i/1080p
Analog Input: CVBS 1.0Vpp (With Sync)
Analog Input: S-Video 1.0Vpp (Y With Sync), 0.286Vpp (C)
Analog Input: Component Video 1.0Vpp (With Sync), 0.7Vpp (Pb, Pr)
SDI Input Signal: SMPTE-274M 1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 24sF / 23.98 / 23.98sF)
SDI Input Signal: SMPTE-296M 720p (60 / 59.94 / 50)
SDI Input Signal: SMPTE-260M 1035i (60 / 59.94)
SDI Input Signal: SMPTE-125M 480i (59.94)
SDI Input Signal: ITU-R BT.656 576i (50)
Audio IN Embedded Audio / Analog stereo (Phone Jack)
Audio OUT Analog stereo (Phone Jack) / Internal Speaker (Stereo)
Power DC 12V
Power Consumption (Approx.) 16 Watts(DC)
Operating Temperature 0 deg.C to 40 deg.C ( 32 deg.F to 104 deg.F )
Storage Temperature -20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F )
Dimensions With Stand: 217 x 143 x 69 mm (8.54 x 5.63 x 2.72")
Without Stand: 203 x 131 x 34.6 mm (8.00 x 5.16 x 1.36")
Weight 0.6 kg / 1.32 lbs
