TV Logic PRM-434AS 4.3" 800x480 Multi-Format Quad LCD Rack Mount, HD/SD-SDI Input

SKU: TLPRM434AS MFR: PRM-434AS

Our Price

$2,966.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

List Price: $3,295.00

Availability: Special Order .

Free Shipping

See all shipping options

Product Highlights

  • Remote Control (Tally control)
  • Closed Caption: CEA-608/708
  • AFD
  • H/V Delay
  • Blue Only & Monochrome
  • SD-SDI Input & Active Loop Through
  • SDI Input Format Auto Detect
  • Source ID Function (User Defined in OSD Function)

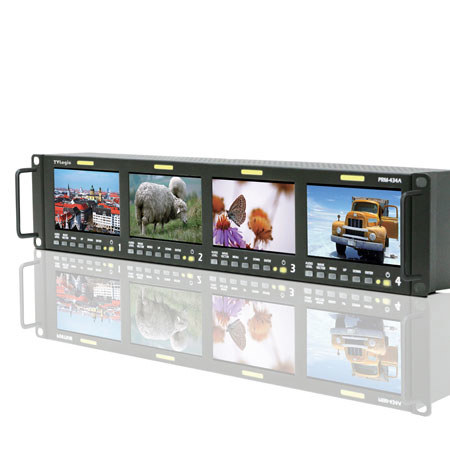

TV Logic PRM-434AS: Picture 1 regular $2,966.00

About TV Logic PRM-434AS

The TVLogic PRM-434AS LCD Rack Mount packs four 4.3" 800 x 480 LED backlit LCD panels into a 2RU rack unit designed for SDI signal monitoring. The front panel allows selection of embedded audio level, waveform/vectorscope and the PRM full feature/setup menu. I/O includes SDI in/out, serial tally port and serial firmware upgrade port.

TV Logic PRM-434AS Features

  • Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
  • 4 High Resolution (800 x 480) 4.3" 16.7 megapixel Wide Screens
  • Remote Control (Tally control)
  • Closed Caption: CEA-608/708
  • AFD
  • H/V Delay
  • Blue Only & Monochrome
  • Wide Variety of Markers & Safety Areas including user defined Markers
  • SD-SDI Input & Active Loop Through
  • SDI Input Format Auto Detect
  • Source ID Function (User Defined in OSD Function)
  • Embedded Audio Level Meter (8 Ch)
  • Timecode Display
  • WaveForm/Vector Scope
  • WaveForm/Vector Scope Full Size, Small Size Select

TV Logic PRM-434AS Specifications

Number of Screens
4
LCD Size
4.3 inch / 93 (H) X 55.8 (V) mm
Resolution
800 x 480 (15: 9)
Pixel Pitch
0.116 mm
Color Depth
16.7M (True 8bit)
Viewing Angle (Typ.)
130deg.(H) / 110deg.(V)
Luminance (Max.)
200cd/m2 (center)
Contrast Ratio
300:1
Input (1Screen)
1 X BNC: SDI Channel Input
Output (1Screen)
1 X BNC: SDI Channel (Active Through Out)
Input Signal
HD-SDI: 1.485Gbps
SD-SDI: 270Mbps
SDI Input Signal Formats
SMPTE-274M: 1080i (60 / 59.94 / 50), 1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i(50)
2K Format: 2048 x 1080 (23.98psf/24psf/23.98p/24p)
Power
12V DC. 2A
Power Consumption (Approx.)
24 Watts
Operating Temperature
-0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature
-30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F)
Dimensions
480 x 87 x 80 mm / 18.89 x 3.42 x 3.14" -2RU
Weight
2.5 Kg / 5.51 lbs
Mfr #
PRM-434AS
SKU
TLPRM434AS
