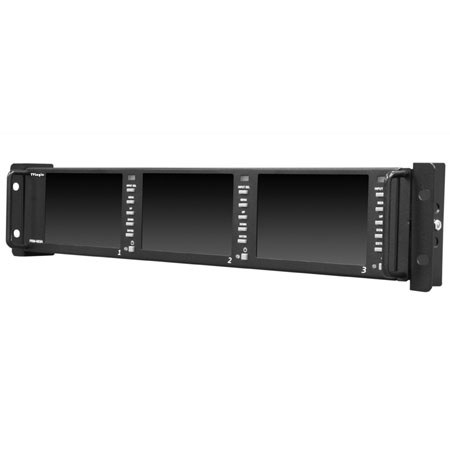

TV Logic PRM-483AS Triple 4.8" 800x480 Multi-Format Triple LCD Rack Mount, SD-SDI, and Composite Inputs with loop-thru. 2RU x 19" rack, Embedded Audio Metering, Waveform/Vector Scope (SD-SDI only)

See all TV Logic items
TV Logic PRM-483AS: Picture 1 thumbnail TV Logic PRM-483AS: Picture 2 thumbnail TV Logic PRM-483AS: Picture 3 thumbnail TV Logic PRM-483AS: Picture 4 thumbnail TV Logic PRM-483AS: Picture 5 thumbnail TV Logic PRM-483AS: Picture 6 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

TV Logic PRM-483AS: Picture 1 regular $2,966.00

About TV Logic PRM-483AS

Three 4.8" 800 x 480 LED backlit LCD panels with 24-degree tilt range are included in the TVLogic PRM-483AS. Input selection and full PRM series feature-set menu are accessed via the front panel. I/O includes two SDI in with one SDI loop out, one CVBS in, one CVBS loop out, RJ11 remote control and serial firmware upgrade port.

TV Logic PRM-483AS Features

  • 3 High Resolution (800 x 480) 4.8" 16.7 megapixel Wide Screens
  • Small Footprint occupies only 2RU of a standard EIA 19" rack
  • Assignable Remote Control
  • Closed Caption: CEA-608/708
  • AFD H/V Delay
  • Blue Only & Monochrome
  • Wide Variety of Marker & Safety Area including user defined Marker
  • SD-SDI 2 Input & Active Loop Through
  • SDI Input Format Auto Detect
  • Composite Input & Loop Through
  • Composite Input Format Auto Detect
  • Source ID Function (User Defined in OSD Function)
  • Embedded Audio Level Meter (8 Ch)
  • Timecode Display
  • WaveForm/Vector Scope (Only SDI)
  • WaveForm/Vector Scope Full Size, Small Size Select

TV Logic PRM-483AS Specifications

Number of Screens
LCD Size
4.8 inch / 104.54 (H) X 62.72 (V) mm
800 x 480 (15: 9)
Pixel Pitch
0.13 mm
Color Depth
16.7M (True 8bit)
Viewing Angle (Typ.)
130deg.(H) / 110deg.(V)
Luminance (Max.)
200cd/m2 (center)
Contrast Ratio
Input (1Screen)
2 X BNC:SDI 2 Channel Input
1 X BNC: Composite Input
Output (1Screen)
1 X BNC: SDI Channel (Active Through Out)
1 X BNC: Composite Output (Internal Buffer Output)
Input Signal
Analog: CVBS (1.0Vpp with Sync)
SD-SDI: 270Mbps
2V DC. 2A
Power Consumption (Approx.)
24 Watts
Operating Temperature
-0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature
-30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F)
480 x 87 x 69 mm / 18.89 x 3.42 x 2.71" -2RU
2.1 Kg / 4.62 lbs
