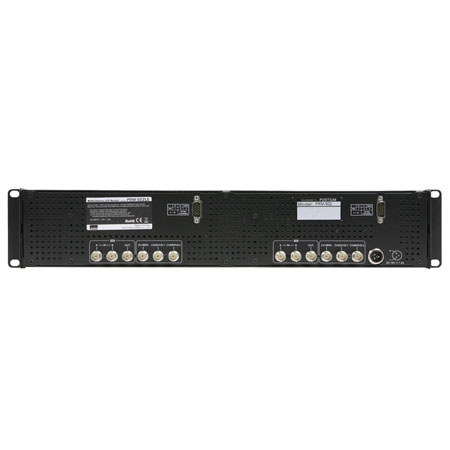

TV Logic PRM-502LE 5" 800x480 Multi-Format Dual LCD Rack Mount, HD/SD-SDI 2 Input

See all TV Logic items
SKU: TLPRM502LE MFR: PRM-502LE
TV Logic PRM-502LE: Picture 1 thumbnail TV Logic PRM-502LE: Picture 2 thumbnail TV Logic PRM-502LE: Picture 3 thumbnail TV Logic PRM-502LE: Picture 4 thumbnail TV Logic PRM-502LE: Picture 5 thumbnail

Our Price

$1,665.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

TV Logic PRM-502LE: Picture 1 regular $1,665.00

About TV Logic PRM-502LE

Two 5" 800 x 480 LED backlit LCD panels with 90-degree tilt range are included in the TVLogic PRM-502LE rack mount, which offers front panel individual control of brightness, contrast, chroma, aperture, SDI A/B select, analog, user (assignable feature) and feature/setup menu. I/O includes two SDI with active loop through and one SDI out plus component analog, RGB, three composite analog inputs and serial firmware upgrade port.

TV Logic PRM-502LE Features

  • Multi-Format Support (480i, 576i, 720P, 1080i, 1080P, 1080Psf, 2K)
  • High Definition 5" (800 x 480) 16.7 megapixel Wide Screens
  • H/V Delay
  • Marker
  • Blue Only & Monochrome
  • HD/SD-SDI 2 Input & Active Loop Through
  • SDI Input Format Auto Detect
  • Variety of Analog Input (Composite, S-Video, YPbPr, RGB)
  • Source ID Function
  • White LED Backlight
  • Wide Viewing Angle Technology (H: 170 degrees, V: 170 degrees)

TV Logic PRM-502LE Specifications

Number of Screen
2
LCD Size
5 inch / 108 (H) X 64.8 (V) mm
Resolution
800 x 480 (15: 9)
Pixel Pitch
0.135 mm
Color Depth
16.7M (True), 8bit
Viewing Angle (Typ.)
170deg.(H) / 170deg.(V)
Luminance (Max.)
300cd/m2 (center)
Contrast Ratio
600:1
Display Area
152(H) x 91(V) mm
Input: 2 x BNC
SDI 2 Channel Inputs
Input: 3 x BNC
3 CVBS Inputs
S-Video
RGB
Component Video
Output
SDI Channel (Active Loop Through
Input Signal: Analog
CVBS(1.0Vpp with Sync)
S-Video(1.0Vpp Y with Sync, 0.268Vpp [c])
Component(1.0Vpp Y with Sync, 0.7Vpp [Pb, Pr])
RGB(1.0Vpp G with Sync, 0.7Vpp [B.R])
Input Signal: HD-SDI
1.485Gbps
Input Signal: SD-SDI
270Mbps
SDI Input Signal Formats
SMPTE-274M: 1080i (60 / 59.94 / 50); 1080P (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M: 720P (23.98/24/25/29.97/30/50/59.94/60)
SMPTE-260M: 1035i (60/59.94)
SMPTE-125M: 480i (59.94)
ITU-R BT.656: 576i (50)
2K Format: 2048 x 1080 (23.98psf/24psf/23.98p/24p)
Analog Input Spec
CVBS: NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 /59.94i)
S-Video: NTSC (525 / 59.94i), PAL (625 / 50i), PAL-M (525 /59.94i)
Component Video: 480i (59.94), 576i (50), 480P (59.94), 576P (50)
RGB Input: 1080i (60/59.94/50); 1080P (30/29.97/25/24/24sF/23.98/23.98sF); 720P (50/59.94/60)
Power
DC 12 / 1.2A
Power Consumption (Approx.)
14 Watts
Operating Temperature
0 deg.C to 40 deg.C (32 deg.F to 104 deg.F )
Storage Temperature
-30 deg.C to 50 deg.C (-22 deg.F to 122 deg.F )
Dimensions
480 x 87 x 50 mm / 18.89 x 3.42 x 1.96" -2RU
Weight
2.5 Kg / 5.5 lbs
Mfr #
PRM-502LE
SKU
TLPRM502LE
