TRENDnet

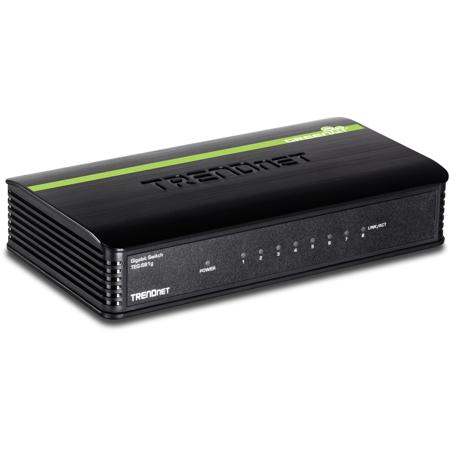

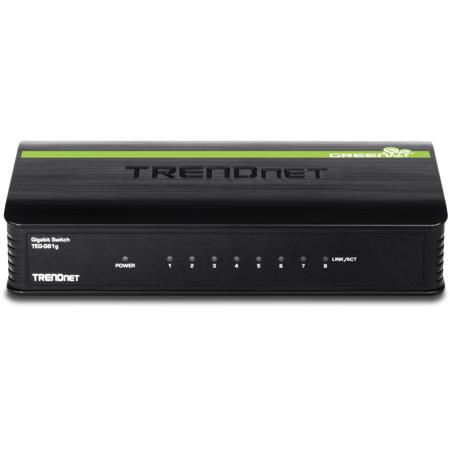

TRENDnet 8-Port Gigabit GREENnet Switch, 16Gbps Forwarding Capacity, 256 KBytes Data RAM Buffer

SKU: TNEGS81G MFR: TEG-S81G
Ships in 1-2 business days
What's Included
What's Included With This Item:
  • TRENDnet 8-Port Gigabit GREENnet Switch
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V DC, 1 A)
  • TRENDnet 3 Year Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$27.99
Compare shipping rates
Qty:
Add to Wishlist
OverviewFeaturesTech Specs
It's never too late CLICK BY 8! See details...

About this item

The TRENDnet 8-Port Gigabit GREENnet Switch provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Boost your office efficiency and eliminate network congestion with Gigabit speeds and total switching capacity of 16 Gbps with Full-Duplex Mode. It features Plug and Play this switch for reliable high speed network connectivity.

What's Included With This Item

  • TRENDnet 8-Port Gigabit GREENnet Switch
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V DC, 1 A)
  • TRENDnet 3 Year Limited Warranty

Popular searches that include this item:

Ethernet Switch TRENDnet TRENDnet Networking Switches

Key Features

  • 8 x Gigabit Mbps Auto-MDIX Gigabit Ethernet ports
  • GREENnet technology reduces power consumption when Ethernet port is not in use, Connected device is turned off, Connected device is in power-saving mode and Based on Ethernet cable length
  • Store-and-Forward switching architecture with non-blocking wire-speed performance
  • IEEE 802.3x Flow Control for full-duplex mode
  • Back pressure Flow Control for half-duplex mode
  • 8 K absolute MAC address table
  • 256 KBytes RAM data buffering
  • Operates and maximizes packet filtering and forwarding rate
  • IEEE 802.3az Energy Efficient Ethernet technology
  • Jumbo Frame support up to 9216 Bytes
  • Diagnostic LEDs

Technical Specs

Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet
Network Media Ethernet: Cat. 5 up to 100m
Fast Ethernet: Cat. 5 up to 100m
Gigabit Ethernet: Cat. 5, 5e,6 up to 100m
Data Rate Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology CSMA / CD, Star
Power Consumption 3.5 Watts (max.)
Switch Fabric 16 Gbps forwarding capacity
Interface 8 x Gigabit Auto-MDIX RJ-45 ports
Data RAM Buffer 256 KBytes
Filtering Table 8 K entries
Jumbo Frame Support 9216 Bytes
Diagnostic LEDs Power, Link / ACT, 100 Mbps / 1000 Mbps
Power Adapter Input: 100-240 V, 50 / 60 Hz, 190 mA
Output: 5 V DC, 1 A external power adapter
Operating Temperature 0deg. - 40deg.C (32deg. - 104deg.F)
Storage Temperature -10deg. - 70deg.C (14deg. - 158deg.F)
Humidity Max 90% (non-condensing)
Certifications FCC, CE
Dimensions 171 x 100 x 31 mm (6.7 x 3.9 x 1.2")
Weight 190 g (6.8 oz)
