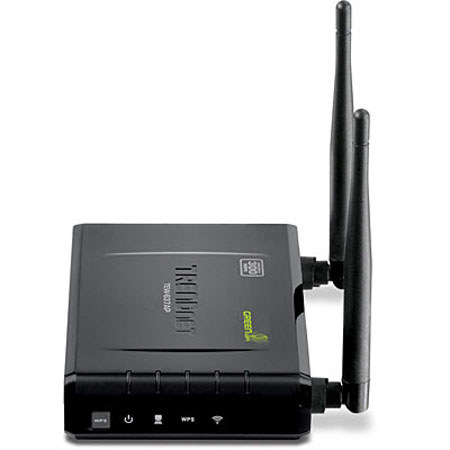

TRENDnet N300 300Mbps Wireless Easy-N-Upgrader, 12x Speed and 6x Coverage

See all TRENDnet items
SKU: TNEW637AP MFR: TEW-637AP
TRENDnet N300: Picture 1 thumbnail TRENDnet N300: Picture 2 thumbnail TRENDnet N300: Picture 3 thumbnail TRENDnet N300: Picture 4 thumbnail

About TRENDnet N300

The TRENDnet N300 300Mbps Wireless Easy-N-Upgrader allows you to add Wireless-N connectivity to home network without entirely replacing your router. Run an Ethernet cable from your existing router to the Easy-N-Upgrader and it will let Wireless-N compatible devices connect to the internet up to twelve times faster than Wireless-G networks typically allow. Wireless-N can also give signal strength a boost, letting you connect more reliably from farther away.

TRENDnet N300 Features

  • 1x 10/100Mbps Ethernet port
  • 1x Wi-Fi Protected Setup (WPS) button
  • 2x 2dBi fixed antennas
  • Compliant with IEEE 802.11n, IEEE 802.11g & 802.11b standards
  • High-speed data rates of up to 300Mbps with IEEE 802.11n
  • Compact high performance wireless n access point
  • Up to 50% energy savings with GREENWi-Fi technology
  • A smaller and faster access point solution suitable for upgrading to wireless N
  • Affordable wireless N device for easily migrating from wireless G and B networks
  • Broadcast up to 4 SSIDs with different wireless encryption
  • Supports Wireless Distribution System (WDS) to extend wireless network
  • Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
  • Improves the data transfer speed by working with existing wireless G and B Networks
  • Wireless security support of up to WPA2-RADIUS
  • Low Interference and high susceptibility guarantee reliable performance
  • One-touch wireless security setup using the Wi-Fi Protected Setup (WPS) button
  • Indoor coverage up to 100 meters (328ft.)
  • Outdoor coverage up to 300 meters (984ft.)

TRENDnet N300 Specifications

Interface
1 x 10/100Mbps Auto-MDIX LAN port
Standards
IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, 802.3u and 802.3
CD Wizard OS Compatibility
Windows 7 (32/64-bit), Vista(32/64-bit), XP(32/64-bit) and 2000
LED Indicators
Power
LAN
WPS
Wireless
Power Supply
12 V DC 0.5A External Power Adapter
Temperature
Operating: 0deg. - 40deg. C / 32deg. - 104deg.F
Storage: -20deg. - 60deg.C / -4deg.-140deg.F
Humidity
Max. 90% Non-Condensing
Module Technique
OFDM with BPSK,DQPSK, CCK, BPSK, QPSK, 16/64QAM with OFDM
WDS
Enable/Disable Wireless Distribution System support
Access Control
MAC Address Filter (Up to 64 entries)
Antenna
2 x 2dBi External Fixed Dipole Antennas
Frequency
2.412 -2.484GHz
Data Rate (Auto Fallback)
802.11n: up to 300Mbps
802.11g: up to 54Mbps
802.11b: up to 11Mbps
Output Power
802.11b: 18dBm (typical) at 11Mbps
802.11g: 15dBm (typical) at 54Mbps
802.11n: 11dBm (typical) at 300Mbps
Receiving Sensitivity
802.11b: -84dBm (typical) at 11mpbs
802.11g: -72dBm (typical) at 54Mbps
802.11n: -68dBm (typical) at 300Mbps
Encryption
64/128-bit WEP, WPA/WPA2 RADIUS, WPA/WPA2-PSK
Channels
1-11 (FCC) 1-13 (ETSI)
Dimensions (LxWxH)
120x26x88mm / 4.7 x 1.0 x 3.4"
Weight
145g / 5.11oz
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Can i get high speed internet through this?
Andrew R  I'm not sure I understand your question. This unit connects to an existing wired network, a modem (cable or DSL) is not included.
