TRENDnet 1-Port Wireless N Multi-Function USB Print Server, 2.41-2.46GHz FCC Frequency Range

See all TRENDnet items
SKU: TNEWMFP1 MFR: TEW-MFP1
TRENDnet : Picture 1 thumbnail TRENDnet : Picture 2 thumbnail TRENDnet : Picture 3 thumbnail TRENDnet : Picture 4 thumbnail TRENDnet : Picture 5 thumbnail
Free Shipping

See all shipping options

In Stock Online - Usually ships in 1-2 Days learn more

Our Price

$53.49
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About TRENDnet

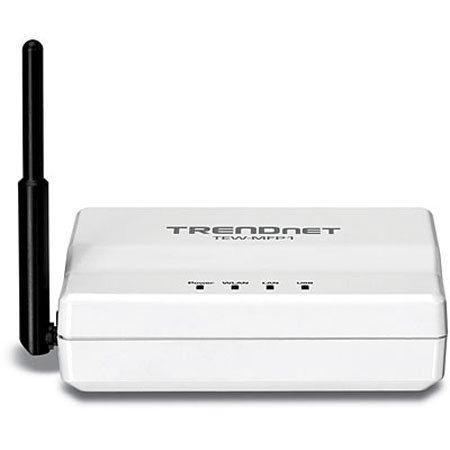

The TRENDnet 1-Port Wireless N Multi-Function USB Print Server transforms most stand-alone multi-function and standard USB printers into a shared network resource. Install your multifunction printer in the most ergonomic location and then connect the compact TEW-MFP1 to a high speed Wireless N network. An intuitive utility supports Windows and Mac operating systems and provides a seamless user experience. Scan, fax and print functionality from any networked workstation. Integrated Wireless N provides greater installation flexibility. An Ethernet port facilitates optional wired networking. Wi-Fi Protected Setup (WPS) streamlines the process of connecting to a wireless network. This compact device fits into the smallest spaces.

TRENDnet Features

  • 1 x 10/100Mbps Auto-MDIX Fast Ethernet port (for optional wired installation)
  • 1 x USB 2.0 high speed port
  • Wi-Fi Protected Setup (WPS) connects to wireless networks at the push of a button
  • Compliant with IEEE 802.11n technology and compliant with IEEE 802.11b/g standards
  • High-speed data rates of up to 150Mbps with IEEE 802.11n
  • Backwards Compatible with USB 1.1 Devices
  • Control Center utility supports Windows 7 (32/64-bit) / Vista (32/64-bit) / Windows XP(32/64-bit) and Mac OS X 10.4/10.5/10.6/10.7 operating systems
  • Supports most All-In-One multi-function printers and regular USB printers
  • Share multi-function printers and regular USB printers over the network
  • Control Center utility includes built in scan feature
  • Supports NetUSB technology
  • Universal Plug & Play (UPnP) installation
  • Diagnostic LEDs

TRENDnet Specifications

Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), USB 1.1/2.0
LAN Port
1 x 10/100Mbps Auto-MDIX Ethernet port
USB Ports
1 x USB 2.0 Type-A
LED Indicators
Power, WLAN, LAN, USB
TCP/IP Protocol Supported
DHCP
Control Center Utility Supported OS
Windows: 7(32/64-bit) / Vista (32/64-bit) / XP(32/64-bit)
Mac OS X: 10.4/ 10.5/10.6/10.7
USB Devices Supported
127 Max
Button
Init button: restores factory default settings (press over 10 seconds), Activates WPS Function (press for 2-9 seconds)
Power
Input: 120 - 240V AC, 50-60Hz
Output: 12V DC, 1A
Power Consumption
2.04 Watts (max)
Storage Temperature
-10 - 60deg.C (13.9-139 deg.F)
Operating Temperature
5 - 40deg.C (41-104 deg.F)
Humidity
Max. 90% (non-condensing)
Frequency
2.412 - 2.462 GHz (FCC)
2.412 - 2.472 GHz (ETSI)
Antenna
2dBi external fixed dipole antenna
Media Access Protocol
CSMA/CA with ACK
Modulation
CCK, DQPSK, BDSPK, OFDM with BPSK, QPSK and 16/64-QAM sub-carrier modulations
Data Rate
802.11b:11Mbps
802.11g: 54Mbps
802.11n: 150Mbps
Security
64/128-bit WEP, WPA/WP2-PSK
Output Power
802.11b: 16dBm (typical)
802.11g: 13dBm (typical)
802.11n: 13dBm (typical)
Receiving Sensitivity
802.11b: -85dBm (typical) at 11Mpbs
802.11g: -68dBm (typical) at 54Mpbs
802.11n: -68dBm (typical) at 150Mpbs
Channels
1- 11 (FCC), 1-13 (ETSI)
Dimensions (LxWxH)
75x58x24mm (2.95x2.28x0.94")
Weight
62g ( 2.18oz)
