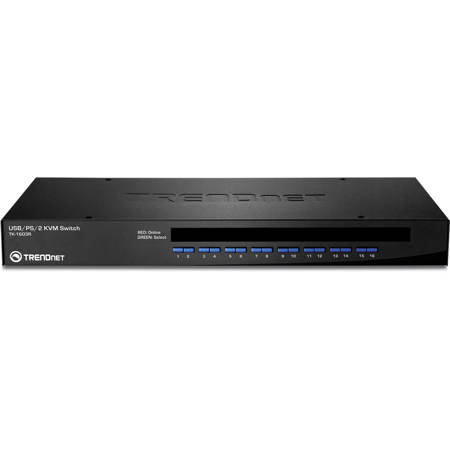

TRENDnet TK-1603R 16-Port USB/PS/2 Rack Mount KVM Switch
See all TRENDnet items

TRENDnet TK-1603R 16-Port USB/PS/2 Rack Mount KVM Switch

SKU: TNK1603R
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TK-1603R Specifications

  • Management

    16 Computers

  • Standard

    USB 1.1 Compliant

  • PC Port

    16 x VGA HDB 15-pin (female)

  • Console Port

    1 x USB (Type A) / PS/2(6-pin Mini Din) Mouse
    1 x USB (Type A) / PS/2(6-pin Mini Din) Keyboard
    1 x VGA HDB 15-pin (female)

  • Supported OS

    Windows 98(SE)/ME/ 2000/XP/2003 Server
    Linux, Mac and more

  • PC Selection

    Hot-Key or Push Buttons

  • Auto-Scan Interval

    10-100 seconds (Programmable through Hot-Key)

  • LEDs

    On-line (Red), Select (Green)

  • Keyboard Status

    Saved & Restored

  • Power Adapter

    9V DC 1A External Power Adapter

  • Operating Temperature

    0deg.C-40deg.C (32deg.F-104deg.F)

  • Storage Temperature

    -20deg.C-60deg.C (-4deg.F-140deg.F)

  • Humidity

    0%-80% (non-condensing)

  • Dimensions

    407x165x45mm (16.02x6.49x1.77")

  • Weight

    2.04kg (4.49lbs)

  • UPC Code

    710931304329

About TRENDnet TK-1603R

The TRENDnet TK-1603R 16-Port USB/PS/2 Rack Mount KVM Switch lets you to manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 16-Port USB KVM Switch is the perfect choice for managing multiple PC's.

TRENDnet TK-1603R Features

  • Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse and more
  • Supports Windows 98SE/ME/2000/XP/2003 Server, Linux, Mac OS and more
  • High video quality- up to 2048 x 1536 VGA resolution
  • Firmware upgradeable via PC port
  • Auto-Scan for monitored PCs with adjustable scan interval from 10-99 seconds
  • Keyboard status restored when switching between PCs
  • LEDs display for easy status monitoring
  • Beeping sound for port switching confirmation (enable/disable)
  • Hot-Key or push button switching
  • Plug & Play and Hot-Pluggable
  • Standard 19" (1U) rack mount design

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Beeping sound for port switching confirmation (enable/disable)
  • Hot-Key or push button switching
  • Plug & Play & Hot-Pluggable
  • Standard 19" (1U) rack mount design

What's in the box:

  • TRENDnet TK-1603R 16-Port USB/PS/2 Rack Mount KVM Switch
  • Multi-Language Quick Installation Guide
  • Power Adapter (9V DC 1A)
  • Rack Mount Kit
  • TRENDnet 2 Years Limited Warranty
