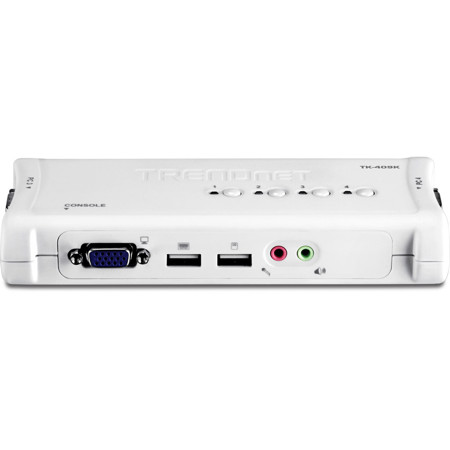

TRENDnet 4-Port USB KVM Switch Kit with Audio
See all TRENDnet items

TRENDnet 4-Port USB KVM Switch Kit with Audio

SKU: TNK409K
(4)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-08-29T20:00:00

Rated 5 out of 5

Best thing since sliced bread.

so simple to install even I could do it. works great just as it should.

Dave

2019-12-09T19:00:00

Rated 1 out of 5

A Wicked Switch

Switch performance is pathetic. More often than not, I have to manually disconnect 1 or 2 cables to get the switch to switch! I wish I could exchange it for an upgrade that works!

Mark

2011-11-29T19:00:00

Rated 3 out of 5

Functions Well, Poor Form Factor

The product seems to work properly. However, the form factor is very odd with cables coming out of every side which makes it difficult to locate in such a way that is convenient.

WorkingFromHome

2011-01-19T19:00:00

Rated 1 out of 5

Doesn't work with my Dell Lap Top

I have a dell laptop running XP and 2 Linux workstations. The KVM switchs the Laptop to the lowest possible resolution everytime I swith to it. Then the USB hangs when I try to change the resolution, so I am stuck with a resolution on the XP that doesn't work. The KVM seems to work just fine with the Linux machines. And I needed the KVM to do my work until I found another solution. The IOGEAR I got isn't perfect, but it does the job. Now it is past the "21 day return period" and I can't send the Trendnet back. Buying from Dell should be simple and easy, this is neither.

VegasRandy

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet 4-Port USB KVM Switch Kit with Audio Specifications

  • Connections

    4 Computers

  • USB Interface

    USB 1.1 Compliant

  • KVM Cable

    2 sets of 1.2m (4ft.) KVM cables
    2 sets of 1.8m (6ft.) KVM cables
    2 sets of 1.2m (4ft.) audio cables
    2 sets of 1.8m (6ft.) audio cables

  • Cable Interface (all male) KVM Cable

    To KVM: 1 x VGA/SVGA HDB 15-pin
    To PC: 1 x USB (type A)
    1 X VGA/SVGA HDB 15-pin

  • Cable Interface (all male) Audio Cable

    To KVM: 1 X 3.5mm Speaker Jack
    1 X 3.5mm Microphone In Jack
    To PC: 1 X 3.5mm Speaker Jack
    1 X 3.5mm Microphone In Jack

  • PC Port Connectors (All Female)

    4 X VGA/SVGA HDB 15-Pin
    4 X 3.5mm Speaker Jack
    4 X 3.5mm Microphone Jack

  • Console Port Connectors (All Female)

    1 X USB Keyboard (Type A)
    1 X USB Mouse (Type A)
    1 X VGA/SVGA HDB 15-Pin
    1 X 3.5mm Speaker Jack
    1 X 3.5mm Microphone Jack

  • Computer Selection

    Face panel push buttons, keyboard hot key commands or Windows-based client switching software

  • Auto-Scan Interval

    10 - 60 seconds

  • Power Type

    USB Interface Power

  • Temperature

    Operating: 0deg.C - 40deg.C (32deg.F -104deg.F)Storage: -20deg.C - 60deg.C (-4deg.F -140deg.F)

  • Humidity

    Max. 90%, Non-Condensing

  • Certifications

    CE, FCC

  • Dimensions

    167x80x28mm / 6.6x3.2x1.1"

  • Weight

    185g / 6.5oz

  • UPC Code

    710931304299

About TRENDnet 4-Port USB KVM Switch Kit with Audio

FEATURED REVIEWS

Best thing since sliced bread.

By Dave

so simple to install even I could do it. works great just as it should.

The TRENDnet 4-Port USB KVM Switch Kit with Audio lets you manage 4 computers with just one set of keyboard, monitor, mouse and a set of speakers/Microphone. The device comes with 4 sets of USB KVM and Audio cables, no additional equipment required. Its compact size makes it ideal for home and business environment.

TRENDnet 4-Port USB KVM Switch Kit with Audio Features

  • Manage up to 4 computers/servers with one set of console device
  • USB keyboard/mouse emulation with 4 sets of detachable KVM cables
  • Compliant with Windows, Linux and Mac OS
  • High video quality, up to 2048 x 1536 VGA resolution
  • Multi-Platform supports for PCs, Macintosh G3/G4/G5, iMac and Mac Mini
  • Listen to music from one computer while working on the other
  • Auto-Scan & LED display for computer monitoring
  • Computer selection by face panel push buttons, keyboard hot key commands or Windows-based client switching software
  • User definable hot key (Windows only)
  • Plug & Play and hot-pluggable
  • USB interface power method

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Manage up to 4 computers/servers
  • USB keyboard/mouse emulation
  • High video quality, up to 2048 x 1536 VGA resolution
  • Multi-Platform supports for PCs, Macintosh G3/G4/G5, iMac and Mac Mini
  • Listen to music from one computer while working on the other
  • Auto-Scan & LED display for computer monitoring

What's in the box:

  • TRENDnet 4-Port USB KVM Switch with Audio
  • Quick Installation Guide
  • 4 Sets Of USB KVM Cables
  • 4 Sets of Audio Cables
  • TRENDnet 2 Years Limited Warranty
