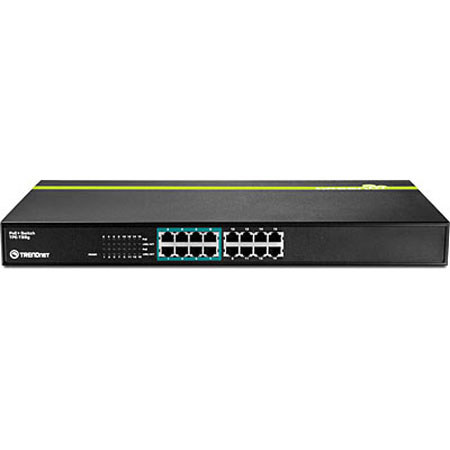

TRENDnet TPE-T88G 16-Port GREENnet 10/100 Mbps PoE+ Switch

SKU: TNPE88G MFR: TPE-T88G
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About the TRENDnet TPE-T88G

The TRENDnet TPE-T88G 16-Port GREENnet 10/100 Mbps PoE+ Switch reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers eight 10/100 Mbps PoE+ and eight Ethernet ports. The IEEE 802.3at PoE+ standard supplies up to 30 watts of power for devices such as high power wireless access points, PTZ (Pan / Tilt / Zoom) internet cameras and VoIP telephony systems. Auto sensing technology delivers 30 watts to 802.3at PoE+ devices, 15 watts to 802.3af PoE devices and only data to non-PoE devices. GREENnet technology reduces energy costs by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 3.2 Gbps. LED indicators display device status for easy power management and troubleshooting. This switch is rack mountable and comes in a sturdy metal case.

TRENDnet TPE-T88G Includes

  • TRENDnet TPE-T88G 16-Port GREENnet 10/100 Mbps PoE+ Switch
  • Quick Installation Guide
  • Power Cord
  • Rack Mount Kit
  • TRENDnet 3 Year Limited Warranty

TRENDnet TPE-T88G Features

  • IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant
  • Support PoE class 2 (7 watts), 3 (15.4 watts) and 4 (30 watts)
  • 8 x 10/100 Mbps Auto-MDIX PoE / PoE+ ports
  • 8 x 10/100 Mbps Auto-MDIX Fast Ethernet ports
  • Provides up to 30 watts per PoE port (4 ports max.)
  • 3.2 Gbps switching fabric
  • Forwarding Rate: 100 Mbps (148,800pps), 10 Mbps (14,880pps)
  • Status LEDs: System Power, Link/Activity and PoE/PSE on line
  • On / off power switch
  • Full wire-speed non-blocking reception and transmission
  • Store-and-forward switching method
  • Back pressure Flow Control for Half-Duplex mode
  • IEEE 802.3x Flow Control for Full-Duplex mode
  • 1.25 Mbits RAM Data Buffer
  • 4K MAC address entries
  • Plug and Play
  • Sturdy metal case

TRENDnet TPE-T88G Specifications

Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
Ports 8 x 10/100 Mbps Auto-MDIX PoE+ ports
8 x 10/100 Mbps Auto-MDIX Fast Ethernet ports
Data Transfer Rate Ethernet: 10/20 Mbps (Half / Full Duplex)
Fast Ethernet: 100/200Mbps (Half / Full Duplex)
Forwarding Rate 100 Mbps: (148,800pps)
10 Mbps: (14,880pps)
Data RAM Buffer 1.25 Mbits
Address Table 4K MAC entries
Switch Fabric 3.2 Gbps
Power 90-260V AC 50/60 Hz, internal universal switching power
Diagnostic LEDs Power, PoE, Link/Activity
Power Consumption Min: 4 watts (standby)
Max: 130 watts
PoE Max: 120 watts
(8 x 15 watts PoE devices connected or 4 x 30 watts PoE+ devices connected)
Operating Temperature 0deg. - 60deg.C (32deg. - 140deg.F)
Storage Temperature -20deg. - 90deg.C (-4deg. - 194deg.F)
Humidity Max 90% (non-condensing)
Power over Ethernet Up to 30 watts per port; PD classification
Polymer switch for short protection
PoE: pin 3, 6 for power+ and pin 1, 2 for power- (mode A)
Dimensions 440x220x45mm (17.32x8.66x1.77")
Weight 2.3kg (5.07lbs)
